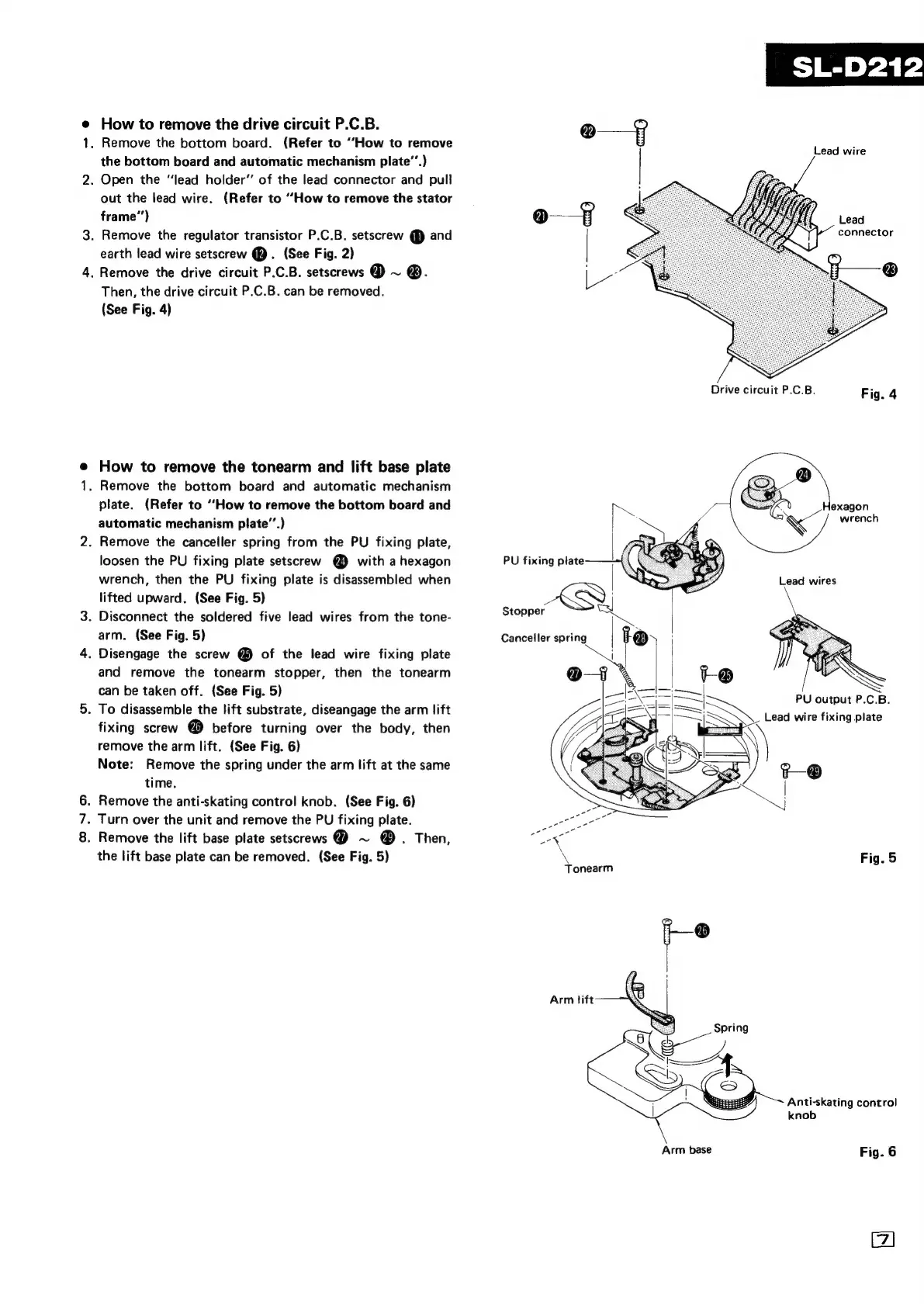

How to remove the drive circuit P.C.B.
. Remove the bottom board. (Refer to “‘How to remove
the bottom board and automatic mechanism plate’’.)
. Open the “lead holder’ of the lead connector and pull
out the lead wire. (Refer to “How to remove the stator
frame’”’)
. Remove the regulator transistor P.C.B. setscrew @) and
earth lead wire setscrew @. (See Fig. 2)
. Remove the drive circuit P.C.B. setscrews @ ~ ®.
Then, the drive circuit P.C.B. can be removed.
(See Fig. 4)
How to remove the tonearm and lift base plate
. Remove the bottom board and automatic mechanism
plate. (Refer to “How to remove the bottom board and
automatic mechanism plate’’.)
. Remove the canceller spring from the PU fixing plate,
loosen the PU fixing plate setscrew @ with a hexagon
wrench, then the PU fixing plate is disassembled when
lifted upward. (See Fig. 5)
. Disconnect the soldered five lead wires from the tone-
arm. (See Fig. 5)
. Disengage the screw @ of the lead wire fixing plate
and remove the tonearm stopper, then the tonearm
can be taken off. (See Fig. 5)
. To disassemble the lift substrate, diseangage the arm lift
fixing screw @ before turning over the body, then
remove the arm lift. (See Fig. 6)
Note: Remove the spring under the arm lift at the same
time.
. Remove the anti-skating control knob. (See Fig. 6)
. Turn over the unit and remove the PU fixing plate.
. Remove the lift base plate setscrews @ ~ @. Then,
the lift base plate can be removed. (See Fig. 5)
| Lead wire
Lead
connector
#—@
Drive circuit P.C.B. Fig. 4
Hexagon
wrench
PU fixing ptate
sropoe “SY
Canceller spring t@
Lead wires
PU output P.C.B.
——
SS Lead wire fixing plate
Fig. 5
Tonearm
Anti-skating control
knob
Arm base
Fig. 6
