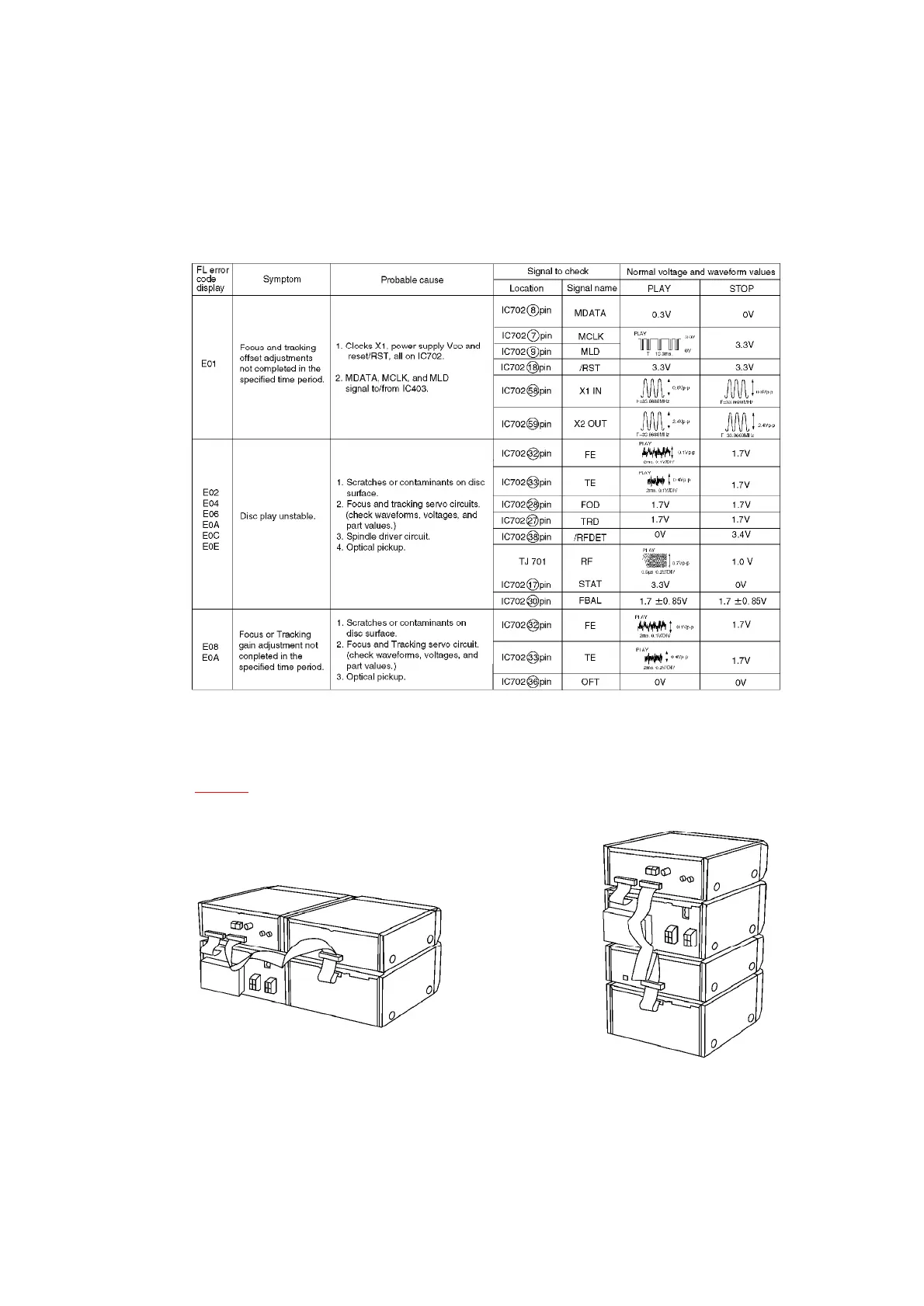

7.3. Error code based on troubleshooting
- This unit is satisfactory if the error code is E00 .
- Before testing, check that the test disc is free of scratches and
optical pickup is clean.
8. To Supply Power Source
This unit is designed to operate on power supplied from system connected. / When a component
requires service, use the system connections to supply power source. / For system connections,
refer to Fig.8-1.
Fig. 8-1.
9. Schematic Diagram Notes
- This schematic diagram may be modified at any time with the
development of new technology.
