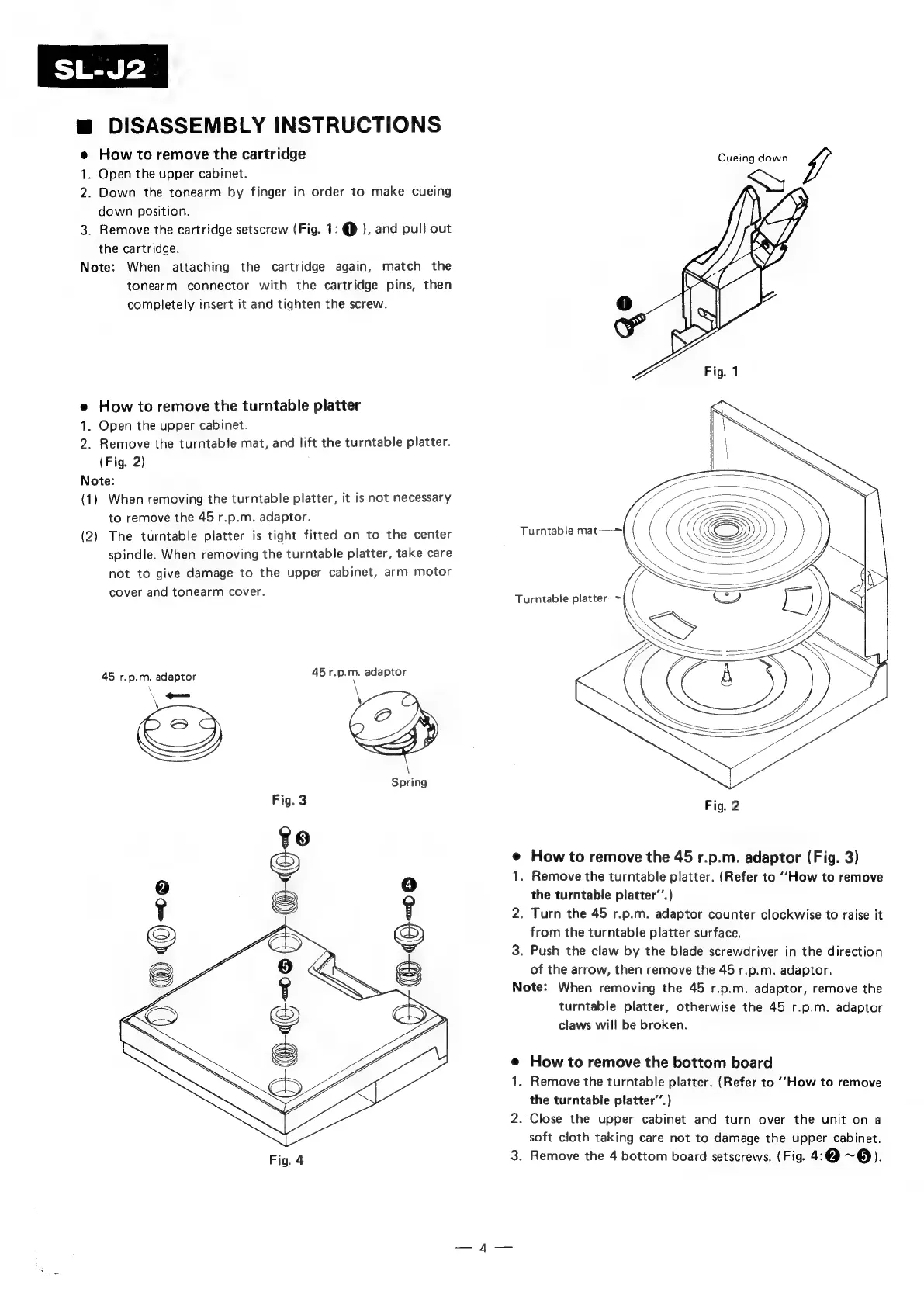

mw DISASSEMBLY INSTRUCTIONS
1
Z
How to remove the cartridge
Open the upper cabinet.
Down the tonearm by finger in order to make cueing
down position.
3. Remove the cartridge setscrew (Fig. 1: @ ), and pull out
the cartridge.
Note: When attaching the cartridge again, match the
tonearm connector with the cartridge pins, then
completely insert it and tighten the screw.
e How to remove the turntable platter
1. Open the upper cabinet.
2. Remove the turntable mat, and lift the turntable platter.
(Fig. 2)
Note:
(1) When removing the turntable platter, it is not necessary
to remove the 45 r.p.m. adaptor.
(2) The turntable platter is tight fitted on to the center
spindle. When removing the turntable platter, take care
not to give damage to the upper cabinet, arm motor
cover and tonearm cover.
45
r.p.m.
adaptor
45
r.p.m.
adaptor
\ -_
CS
Cueing down i
Turntable mat-——-~
Turntable platter ~
Fig. 2
e How to remove the 45 r.p.m. adaptor (Fig. 3)
1. Remove the turntable platter. (Refer to ‘‘How to remove
the turntable platter’’.)
2. Turn the 45 r.p.m. adaptor counter clockwise to raise it
from the turntable platter surface.
3. Push the claw by the blade screwdriver in the direction
of the arrow, then remove the 45 r.p.m. adaptor.
Note: When removing the 45 r.p.m. adaptor, remove the
turntable platter, otherwise the 45 r.p.m. adaptor
claws will be broken.
e How to remove the bottom board
1. Remove the turntable platter. (Refer to ‘“‘How to remove
the turntable platter’’.)
2. Close the upper cabinet and turn over the unit on a
soft cloth taking care not to damage the upper cabinet.
3. Remove the 4 bottom board setscrews. (Fig. 4:9 ~@).
