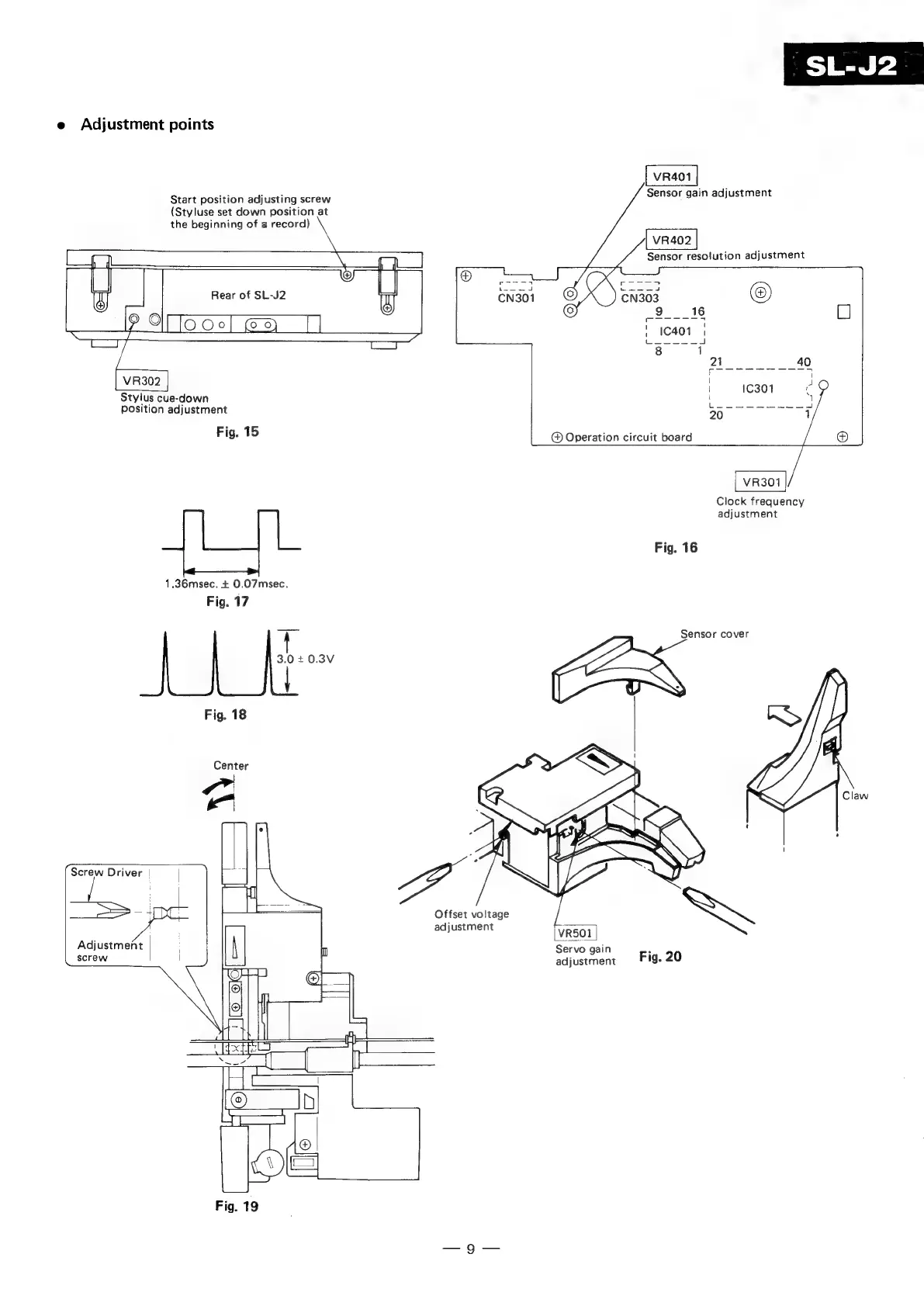

Technics SL-J2 - Page 15

e Adjustment points
Start position adjusting screw
(Styluse set down position at
the beginning of a record)
Rear of SL-J2
Stylus cue-down
position adjustment
Fig. 15
1.36msec. + 0.07msec.
Fig. 17
Fig. 18
Center
Screw Driver | |
eit ¥
ned
screw
Sensor gain adjustment
@ Operation circuit board @
Clock frequency
adjustment
Fig. 16
Sensor cover
Claw
Offset voltage
adjustment
|VR501 |
Servo gain :
adjustment Fig. 20
