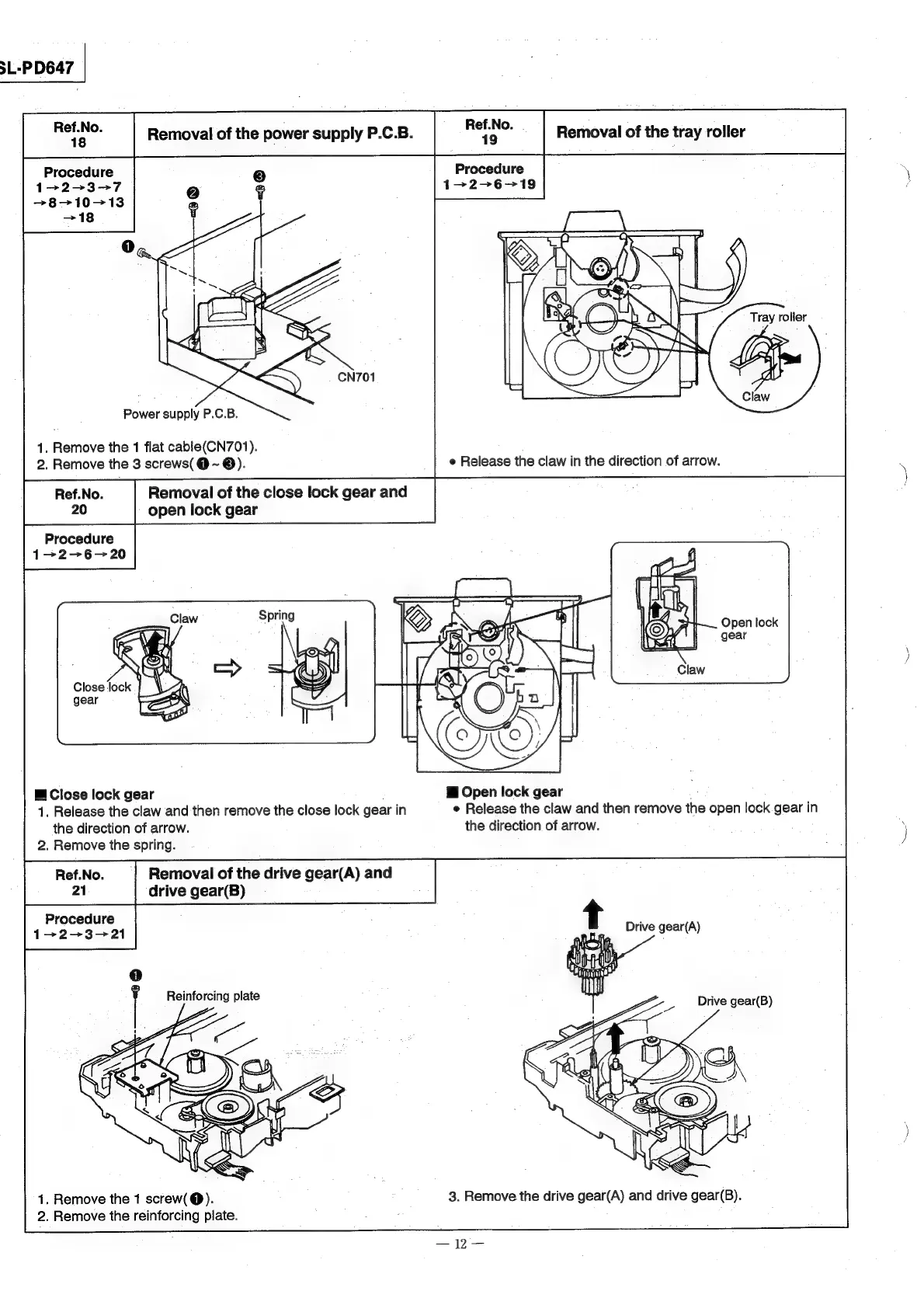

Technics SL-PD647 - Removal of the power supply P.C.B.; Removal of the tray roller; Removal of the close lock gear and open lock gear; Removal of the drive gear(A) and drive gear(B)

3L-PD647
Procedure
1-2-3-7
—>8-10—-13
>18
Power supply P.C.B.
1. Remove the 1 flat cable(CN701).
2. Remove the 3 screws( @~ @).
Spring
@ Close lock gear
1. Release the claw and then remove the close lock gear in
the direction of arrow.
PvaV?-e (oti -~Telatete! 1 & Ra H
4. NEMOVS WIS OPlifiy.
1. Remove the 1 screw( @).
2. Remove the reinforcing plate.
Tray roller
i Open lock gear
e Release the claw and then remove the open lock gear in
the direction of arrow.
3. Remove the drive gear(A) and drive gear(B).
