}L-PD647
Mi

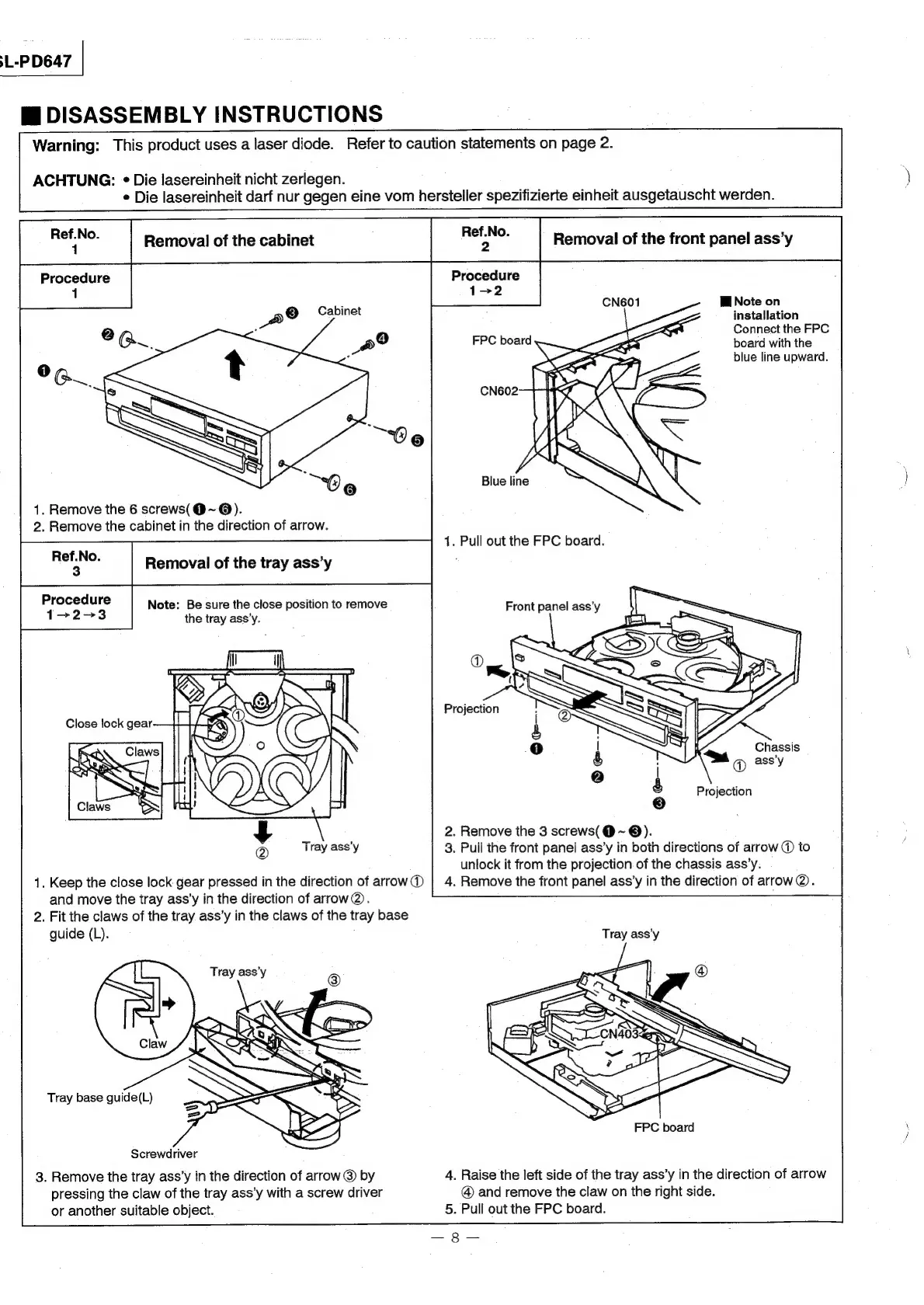

DISASSEMBLY
INSTRUCTIONS
ACHTUNG:
°
Die
lasereinheit
nicht
zerlegen.
1.
Remove
the
6
screws(@~@).
2.
Remove
the
cabinet
in
the
direction
of
arrow.
Note:
Be
sure
the
close
position
to
remove
the
tray
ass’y.
Close
lock
gear
o)
Tray
ass’y
1.
Keep
the
close
lock
gear
pressed
in
the
direction
of
arrow@
and
move
the
tray
ass’y
in
the
direction
of
arrow@.
2.
Fit
the
claws
of
the
tray
ass’y
in
the
claws
of
the
tray
base
guide
(L).
Screwdriver
3.
Remove
the
tray
ass’y
in
the
direction
of
arrow@
by
pressing
the
claw
of
the
tray
ass’y
with
a
screw
driver
or
another
suitable
object.
Warning:
This
product
uses
a
laser
diode.
Refer
to
caution
statements
on
page
2.
e
Die
lasereinheit
darf
nur
gegen
eine
vom
hersteller
spezifizierte
einheit
ausgetauscht
werden.
HE
Note
on
installation
Connect
the
FPC
board
with
the
blue
line
upward.
1.
Pull
out
the
FPC
board.
Front
panel
ass’y
Chassis
“a
®
ass’y
Projection
2.
Remove
the
3
screws(
@~
@).
|
3.
Puii
the
front
panei
ass’y
in
both
directions
of
arrow
@
to
unlock
it
from
the
projection
of
the
chassis
ass’y.
4,
Remove
the
front
panel
ass’y
in
the
direction
of
arrow@.
Tray
ass’y
FPC
board
4.
Raise
the
left
side
of
the
tray
ass’y
in
the
direction
of
arrow
@
and
remove
the
claw
on the
right
side.
5.
Pull
out
the
FPC
board.
