Step 7 Remove all the screws.
Step 8 To check Panel P.C.B. component side release both catches.

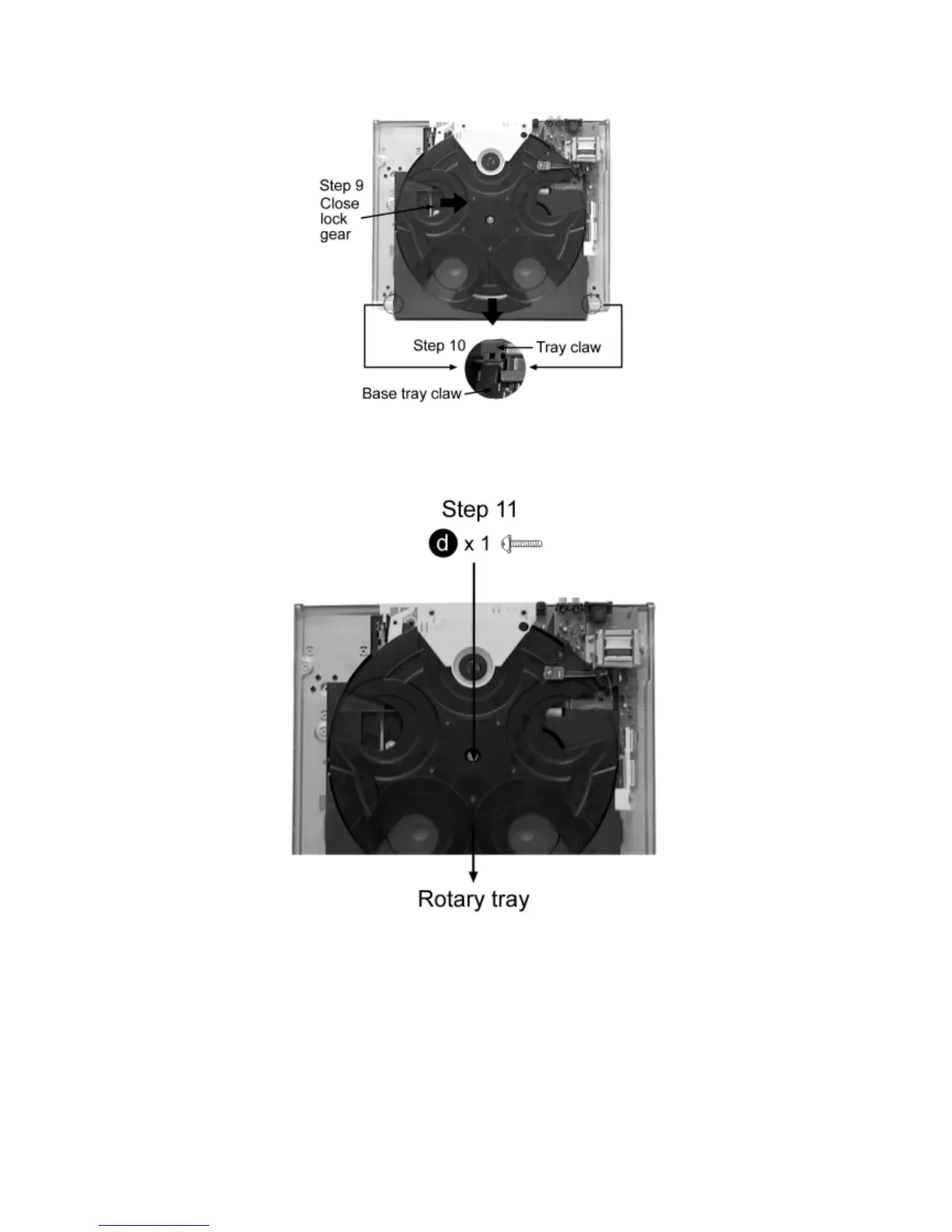

Step 9 Keep the close lock gear pressed in the direction shown, and move the tray in the direction shown.
Step 10 Fit the claw of the tray and the claw of the Base tray guide (left & right side).
Step 11 Remove the screw and the Rotary tray.
