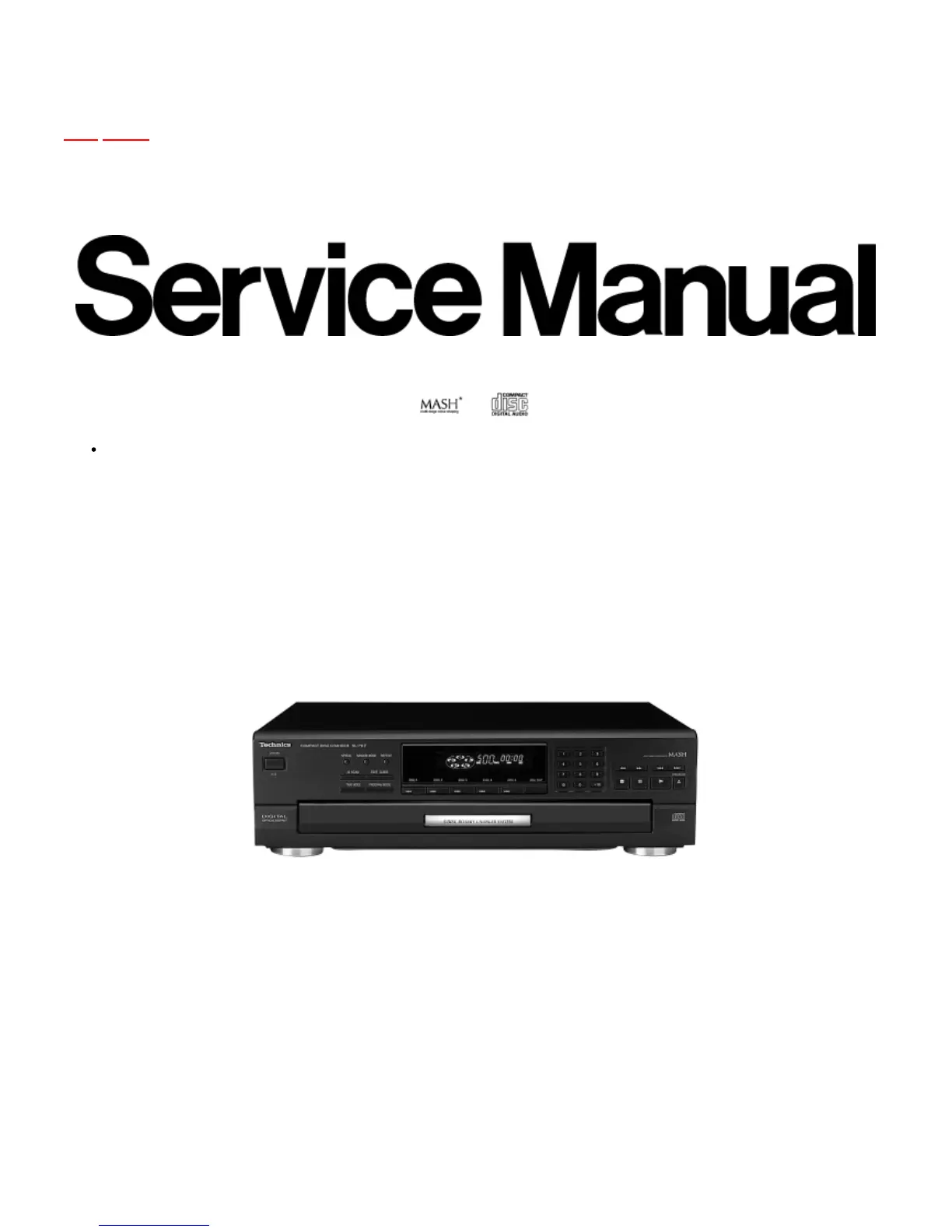

Service Manual
TOP NEXT
Order No. MD0102030C1
A2
Compact Disc Changer
SL-PD7
Colour
(K) ... Black Type
P ... U.S.A.
PC ... Canada
TRAVERSE DECK
RAE0152Z-3 Mechanism Series
AUDIO
No. of channels 2 (left and right, stereo)
Frequency response 2-20000 Hz,±1 dB
Output voltage 2V (at 0 dB)
Dynamic range 92 dB
S/N 100 dB
Total harmonic distortion 0.007% (1kHz, 0 dB)
Wow and flutter Below measurable limit
DA converter MASH (1 bit)
Output impedance Approx. 1kO
Load impedance More than 10 kO
PICKUP
Wavelength 780 nm
GENERAL
