SL-PD687

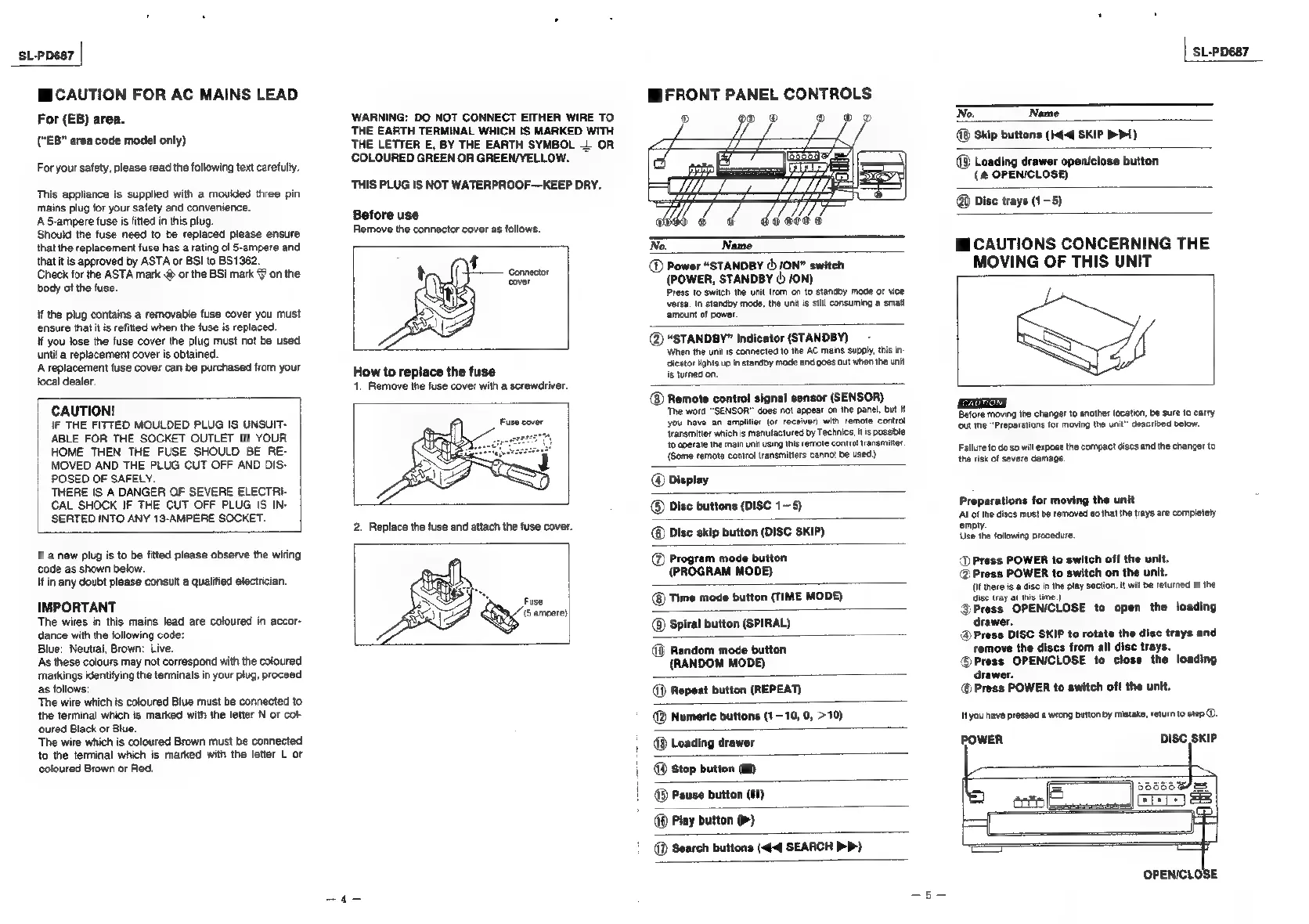

MECAUTION FOR AC MAINS LEAD
For (EB) area.
(“EB” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A S-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of S-ampere and
that itis approved by ASTA or BSI to BS1362.
Check for the ASTA mark @ or the BSI mark $ on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
focal dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUIT-
ABLE FOR THE SOCKET OUTLET IN YOUR
HOME THEN THE FUSE SHOULD BE RE-
MOVED AND THE PLUG CUT OFF AND DIS-
POSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRI-
CAL SHOCK IF THE CUT OFF PLUG IS IN-
SERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accor-
dance with the following code:
Bie: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or col
oured Biack or Blue.
The wire which is coloured Brown must be connected
to the terminal which is marked with the etter L or
coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL 1 OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover as follows.
t if Connector
cover
How to replace the fuse
1. Remove the fuse cover with a screwdriver.
MIFRONT PANEL CONTROLS
a PS @ o®
No. Name
@® Skip buttons (Hq SKIP >)
@® Loading drawer openiciose button
(4 OPENICLOSE)
No. Name
© Power “STANDBY & JON” switch
(POWER, STANDBY 0b /ON)
Press to switch the unit trom on to standby mode or vice
versa. In standby mode, the unit is stil consuming a smatt
amount of power
@ “STANDBY” Indicator (STANDBY)
‘When the unit is connected to the AC mains supply, this in
icator lights up in standby mode and goes out when the unit
is turned on.
Remote control signal sensor (SENSOR)
‘The word “SENSOR” does not appear on the panel, but if
you have an ampltier (or receiver) with remote control
{ransmitter which is manutactured by Technics, is possible
tooperate the main unit using this remote control transmitter
{ome remote contol transmitters cannot be used.)
@ Display
© Dise buttons (DISC 1-5)
© Disc skip button (DISC SKIP)
? Fuse
Bx° srbaiel
Program mode button
(PROGRAM MODE)
Time mode button (TIME MODE)
© Spiral button (SPIRAL)
@ Random mode button
(RANDOM MODE)
( Repeat button (REPEAT)
@® Numeric buttons (1-10, 0, >10)
@ Loading drawer
@ Stop button (i)
@ Disc trays (1-5)
MICAUTIONS CONCERNING THE
MOVING OF THIS UNIT
fore moving he changer to another location, be sure 10 catty
fut the "Preparations for moving the unit" described below
Failure to do so will expose the compact discs and the changer to
the risk of severe damage.
Preparations for moving the unit
All of the discs must be removed so that the trays are completely
empty
Use the following procedure
D Press POWER to switch off the unit.
@ Press POWER to switch on the unit.
it there is @ disc in the play section, it will be returned to the
disc tray at this time.)
@Press OPEN/CLOSE to open the loading
drawer.
@ Press DISC SKIP to rotate the disc trays and
remove the discs from all disc trays.
®)Press OPEN/CLOSE to close the loading
drawer.
© Press POWER to switch off the unit.
It you have pressed a wrong button by mistake, return to step ©.
POWER DISC SKIP
@® Pause button (11)
@ Play button (>)
@ Search buttons (44 SEARCH PP)
OPEN/CLOSE
