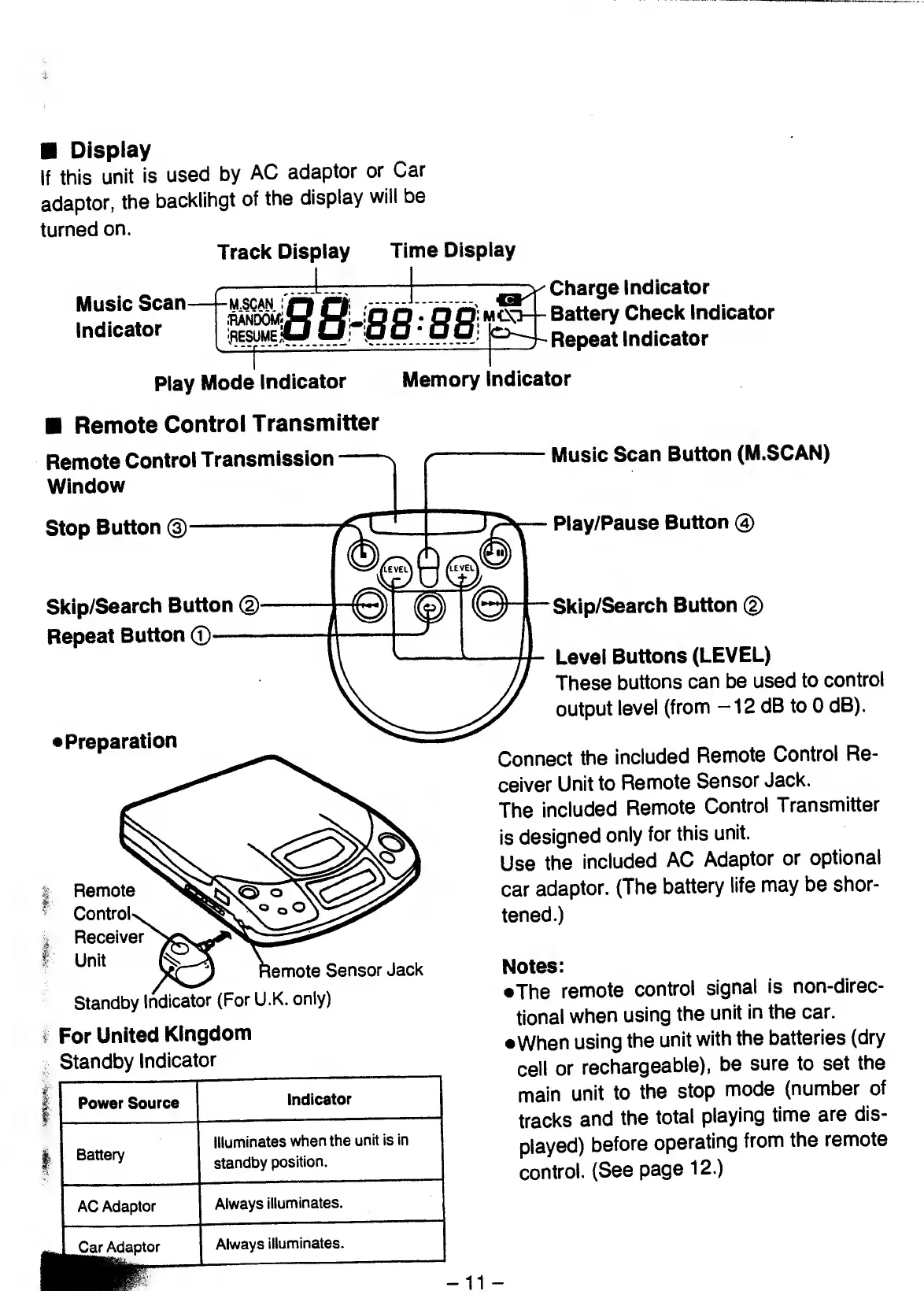

■ Display
If this unit is used by AC adaptor or Car
adaptor, the backlihgt of the display will be
turned on.
Track Display Time Display
Music Scan-
Indicator
-M.SCAN !
'RESUME;
.L..: - 1 -Charge indicator
g Orgg-^ ^ R epeat Indicator
Play Mode Indicator Memory Indicator
■ Remote Control Transmitter
Remote Control Transmission-
Window
Stop Button (3)-
Music Scan Button (M.SCAN)
Play/Pause Button 0
Skip/Search Button
Repeat Button ©—
•Preparation
Remote
Control'v
Receiver^>c?v.
Unit
o
emote Sensor Jack
Standby Indicator (For U.K. only)
For United Kingdom
Standby Indicator
Power Source
Battery
AC Adaptor
Indicator
Illuminates when the unit is in
standby position.
Always illuminates.
Skip/Search Button ©
— jj- Level Buttons (LEVEL)
// These buttons can be used to control
output level (from —12 dB to 0 dB).
Connect the included Remote Control Re¬
ceiver Unit to Remote Sensor Jack.
The included Remote Control Transmitter
is designed only for this unit.
Use the included AC Adaptor or optional
car adaptor. (The battery life may be shor¬
tened.)
Notes:
•The remote control signal is non-direc-
tional when using the unit in the car.
•When using the unit with the batteries (dry
cell or rechargeable), be sure to set the
main unit to the stop mode (number of
tracks and the total playing time are dis¬
played) before operating from the remote
control. (See page 12.)
Car Adaptor
Always illuminates.

Technics SL-XP505 Specifications

Power

power supply	DC 4.5 V
power consumption (AC adaptor)	3 W
power consumption (battery)	0.8 W (DC 3 V)

Audio Specifications

frequency response	20-20000 Hz
dynamic range	more than 94 dB
output voltage	1.0 V (50 kO)

Weight and Dimensions

dimensions	128x29.7x148 mm
weight	345 g with batteries
