Technics SL-XP505 User Manual

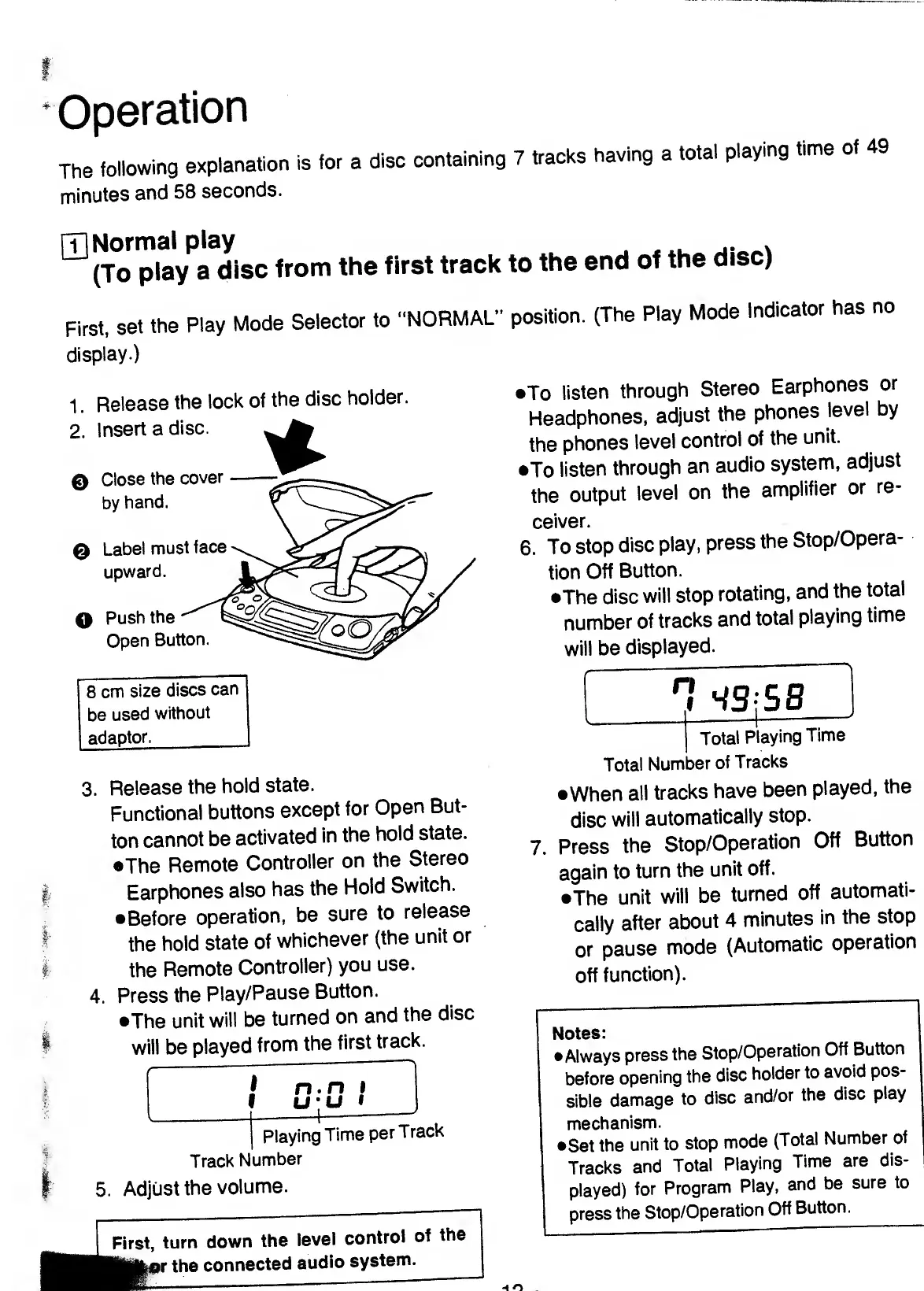

Operation
The following explanation is for a disc containing 7 tracks having a total playing time of 49
minutes and 58 seconds.
m Normal play .
(To play a disc from the first track to the end of the disc)
First, set the Play Mode Selector to "NORMAL” position, (The Play Mode Indicator has no
display.)
1 . Release the lock of the disc holder.
2. Insert a disc.
0 Close the cover
by hand.
Q Label must face
upvward.
O Push the
Open Button.
8 cm size discs can
be used without
adaptor._
3. R elease the hold state.
Functional buttons except for Open But¬
ton cannot be activated in the hold state.
•The Remote Controller on the Stereo
I Earphones also has the Hold Switch.
•Before operation, be sure to release
the hold state of whichever (the unit or
» the Remote Controller) you use.
4. P ress the Play/Pause Button.
•The unit will be turned on and the disc
^ will be played from the first track.
1
n.n 1
--
1
- 1 —
U’U 1
y
j Playing Time per Track
^ Track Number
I 5. Adjust the volume.
First, turn down the level control of the
the connected audio system.
•To listen through Stereo Earphones or
Headphones, adjust the phones level by
the phones level control of the unit.
•To listen through an audio system, adjust
the output level on the amplifier or re¬
ceiver.
6 . To stop disc play, press the Stop/Opera¬
tion Off Button.
•The disc will stop rotating, and the total
number of tracks and total playing time
will be displayed.
-
r
• '^S-SS
-^
Total Num
1 Total Playing Time
ber of T racks
•When all tracks have been played, the
disc will automatically stop.
7. Press the Stop/Operation Off Button
again to turn the unit off.
•The unit will be turned off automati¬
cally after about 4 minutes in the stop
or pause mode (Automatic operation
off function).
Notes:
•Always press the Stop/Operation Off Button
before opening the disc holder to avoid pos¬
sible damage to disc and/or the disc play
mechanism.
I •Set the unit to stop mode (Totai Number of
Tracks and Total Playing Time are dis¬
played) for Program Play, and be sure to
press the Stop/Operation Off Button._
^ o _

Technics SL-XP505 Specifications

Power

power supply	DC 4.5 V
power consumption (AC adaptor)	3 W
power consumption (battery)	0.8 W (DC 3 V)

Audio Specifications

frequency response	20-20000 Hz
dynamic range	more than 94 dB
output voltage	1.0 V (50 kO)

Weight and Dimensions

dimensions	128x29.7x148 mm
weight	345 g with batteries
