ST-CA1080 |

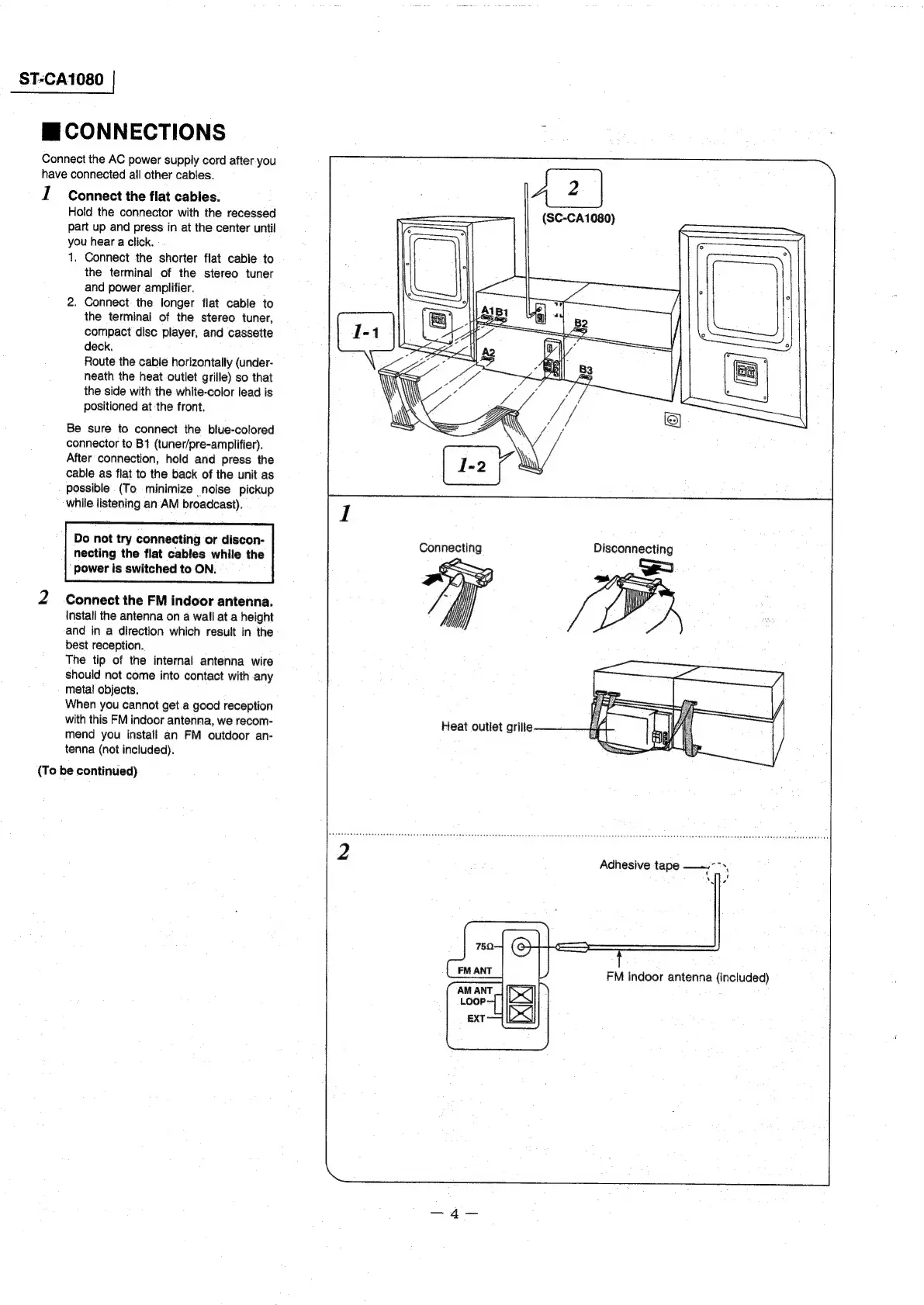

Mi CONNECTIONS
Connect the AC power supply cord after you
have connected all other cables.
I Connect the flat cables.
Hold the connector with the recessed
part up and press in at the center until
you hear a click. -
1. Connect the shorter flat cable to
the terminal of the stereo tuner
and power amplifier.
2. Connect. the longer flat cable to
the terminal of the stereo tuner,
compact disc player, and cassette
deck. ;
Route the cable horizontally (under-
neath the heat outlet grille) so that
the side with the white-color lead is
positioned at the front.
Be sure to connect the blue-colored
connector to B1 (tuner/pre-amplifier).
After connection, hold and press the
cable as flat to the back of the unit as
possible (To minimize noise pickup
while listening an AM broadcast).
Do not try connecting or discon-
necting the flat cables while the
power is switched to ON.
2 Connect the FM indoor antenna.
Install the antenna on a wall at a height
and in a direction which result in the
best reception.
The tip of the internal antenna wire
should not come into contact with any
metal objects.
When you cannot get.a good reception
with this FM indoor antenna, we recom-
mend you install an FM outdoor an-
tenna (not included).
(To be continued)
42 |
(SC-CA1080)
Connecting Disconnecting
>
Heat outlet grille
FM indoor antenna (included)
