Technics ST-G560L

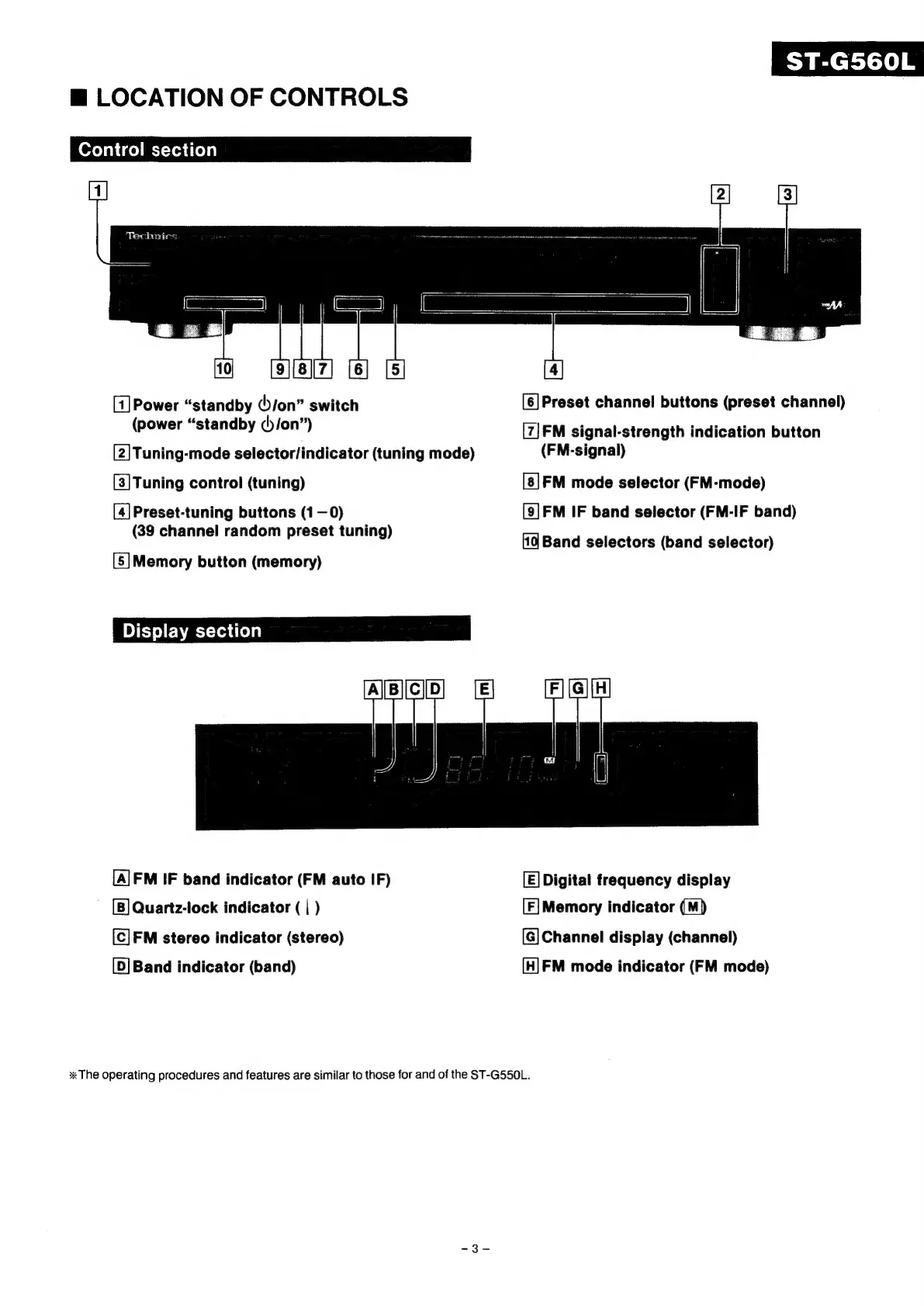

m@ LOCATION OF CONTROLS
Control section
4 |
10} = [9][sii7) [6] [5]
[1] Power “standby (/on” switch
(power “standby (/)/on”)
[2] Tuning-mode selector/indicator (tuning mode)
[3] Tuning control (tuning)
[4] Preset-tuning buttons (1—0)
(39 channel random preset tuning)
[5] Memory button (memory)
BY E-Ye) E:T -\ea dC)
[6] Preset channel buttons (preset channel)
[7]FM signal-strength indication button
(FM-signal)
FM mode selector (FM-mode)
[9] FM IF band selector (FM-IF band)
(10 Band selectors (band selector)
[A] FM IF band indicator (FM auto IF)
[B] Quartz-lock indicator ( | )
[C] FM stereo indicator (stereo)
[0] Band indicator (band)
[E] Digital frequency display
[F] Memory indicator (M)
[G] Channel display (channel)
[H] FM mode indicator (FM mode)
The operating procedures and features are similar to those for and of the ST-G550L.
