Technics SU-3 - Page 3

Hi

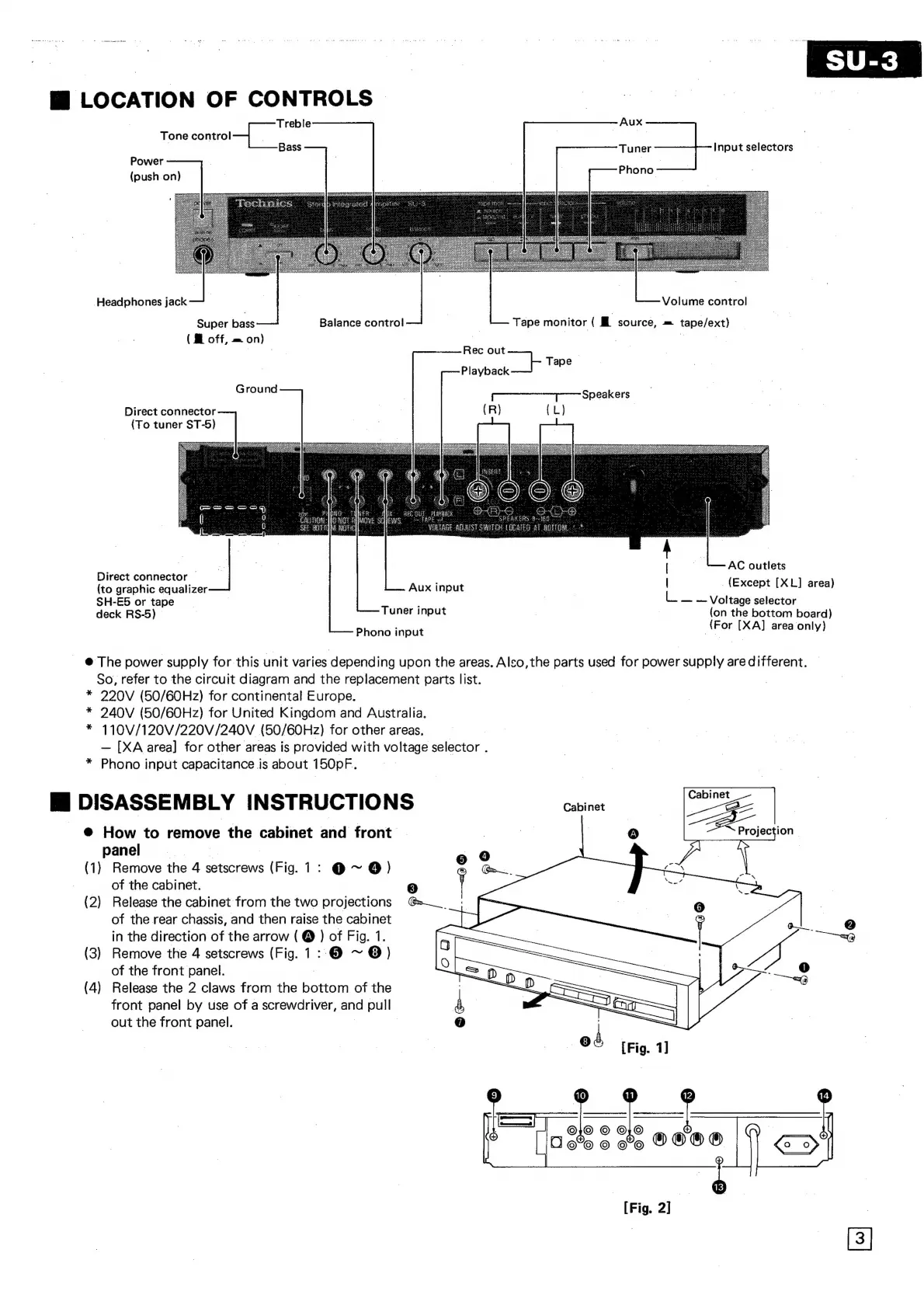

LOCATION
OF
CONTROLS
Treble
Tone contro]
Power
(push.on)
Tuner Input selectors
Headphones jack Volume control
Super bass Balance control Tape monitor ( MI source, = tape/ext)
(@ off, = on) : |
| Rec out ;
Tape
Playback
Ground -—————- Speakers
Direct connector os (R) {L)
(To tuner ST-5)
|
=
l
i
AC
outlets
Direct
connector
u
(to
graphic
equalizer
|
Aux
input
(Except
[XL]
area)
SH-E5 or tape . — — Voltage selector
deck RS-5) | Tuner input | (on the bottom board)
Phono
input
(For
[XA]
area
only)
@ The power supply for this unit varies depending upon the areas. Also, the parts used for power supply are different.
So, refer to the circuit diagram and the replacement parts list.
* 220V (50/60Hz) for continental Europe.
* 2A0V (50/60Hz) for United Kingdom and Australia.
* 110V/120V/220V/240V (50/60Hz) for other areas,
— [XA area] for other areas is provided with voltage slecior:
* Phono input capacitance jis about 150pF.
li DISASSEMBLY INSTRUCTIONS cabinet
@ How to remove the cope and front:
panel -
(1) Remove the 4 setscrews (Fig. 1: @~@O)
of the cabinet.
(2) Release the cabinet from the two projections
of the rear chassis, and then raise the cabinet
in the direction of the arrow ( @ ) of Fig. 1.
(3) Remove the 4 setscrews (Fig. 1: @ ~ @)
of the front panel.
(4) Release the 2 claws from the bottom of the
front panel by use of a screwdriver, and pull
out the front panel. |
