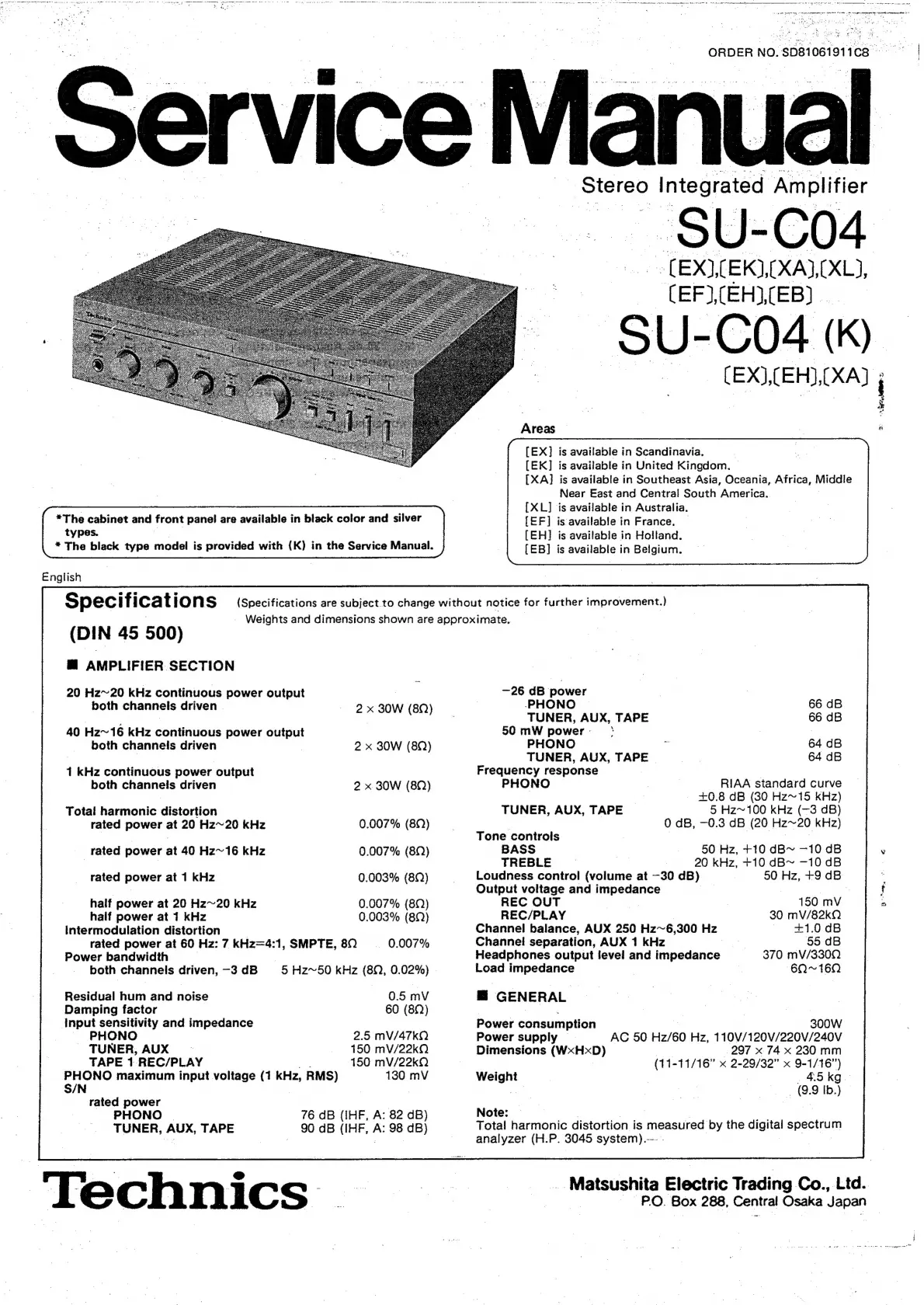

Technics SU-C04

*The cabinet and front panel are available in black color and silver
types.
* The black type model is provided with (K) in the Service Manual.
English
Specifications
(DIN 45 500)
M@ AMPLIFIER SECTION
20 Hz~20 kHz continuous power output
both channels driven 2 x 30W (82)
40 Hz~16 kHz continuous power output
both channels driven 2 x 380W (82)
1 kHz continuous power output
both channels driven 2 x 30W (8Q)
Total harmonic distortion
rated power at 20 Hz~20 kHz 0.007% (822)
rated power at 40 Hz~16 kHz 0.007% (80)
rated power at 1 kHz 0.003% (8Q)
half power at 20 Hz~20 kHz
half power at 1 kHz
intermodulation distortion
rated power at 60 Hz: 7 kHz=4:1, SMPTE, 80
Power bandwidth
both channels driven, —3 dB
0.007% (8)
0.003% (80)
0.007%
Residual hum and noise 0.5 mV
Damping factor 60 (8)
Input sensitivity and impedance
PHONO 2.5 mV/47kQ
TUNER, AUX 150 mV/22kQ
150 mV/22kQ
130 mV
TAPE 1 REC/PLAY
PHONO maximum input voltage (1 kHz, RMS)
S/N
rated power
PHONO
| 76 dB (IHF, A: 82 dB)
TUNER, AUX, TAPE
90 dB (IHF, A: 98 dB)
echnics
5 Hz~50 kHz (80, 0.02%)
ORDER
NO.'$D81061911C8
(EF) (EH),(EB)
[EX] is available in Scandinavia,
[EK] is available in United Kingdom.
Near East and Central South America.
[XL] is available in Australia.
[EF] is available in France. —
[EH] is available in Holland.
[EB] is available in Belgium.
(Specifications are subject. to change without notice for further improvement.)
Weights and dimensions shown are approximate. |
—26 dB power
-PHONO 66 dB
TUNER, AUX, TAPE 66 dB
50 mW powers:
PHONO = 64 dB
TUNER, AUX, TAPE | 64 dB
Frequency response |
PHONO RIAA standard curve
| +0.8 dB (80 Hz~15 KHz)
TUNER, AUX, TAPE 5 Hz~100 kHz (-3 dB)
0 dB, —0.3 dB (20 Hz~20 kHz)
Tone controls
BASS 50 Hz, +10 dB~ —-10 dB
TREBLE 20 kHz, +10 dB~ -10 dB
Loudness control (volume at —30 dB) 50 Hz, +9 dB
Output voitage and impedance : ;
REC OUT 150 mV
REC/PLAY 30 mV/82kD
Channel balance, AUX 250 Hz~6, 300 Hz = 1.0 dB
Channel! separation, AUX 1 kHz | 55 dB
Headphones output level and impedance 370 mV/3300
Load impedance 6N~16Q
= GENERAL
Power consumption 300W
AC 50 Hz/60 Hz, 110V/120V/220V/240V
297 x 74 x 230 mm
(11-11/16” x 2-29/32” x 9-1/16”)
Power supply
Dimensions (WxHxD)
Weight
@. 9 Ib.)
Note:
Total harmonic distortion is measured ‘by the digital Speciiumn
analyzer (H.P. 3045 system).
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
Stereo | ntegrated Ampl ifier
(EX), (EK), (XA},(XL),
U-C04 (k).
(EX), (EH), (XA)
[XA} is available in Southeast Asia, Oceania, Africa, Middle
4.5kg_
a
a
2:
Ke 8
