SU-C800UM2
i
Operation
Check
and
Main
Component
Replacement
Procedures
1.
This
section
describes
procedures
for
checking
the
operation
of
the
major
printed
circuit
boards
and
replacing
the
main
components.
2.
For
reassembly
after
operation
checks
or
replacement,
reverse
the
respective
procedures.
Special
reassembly
procedures
are
described
only
when
required.

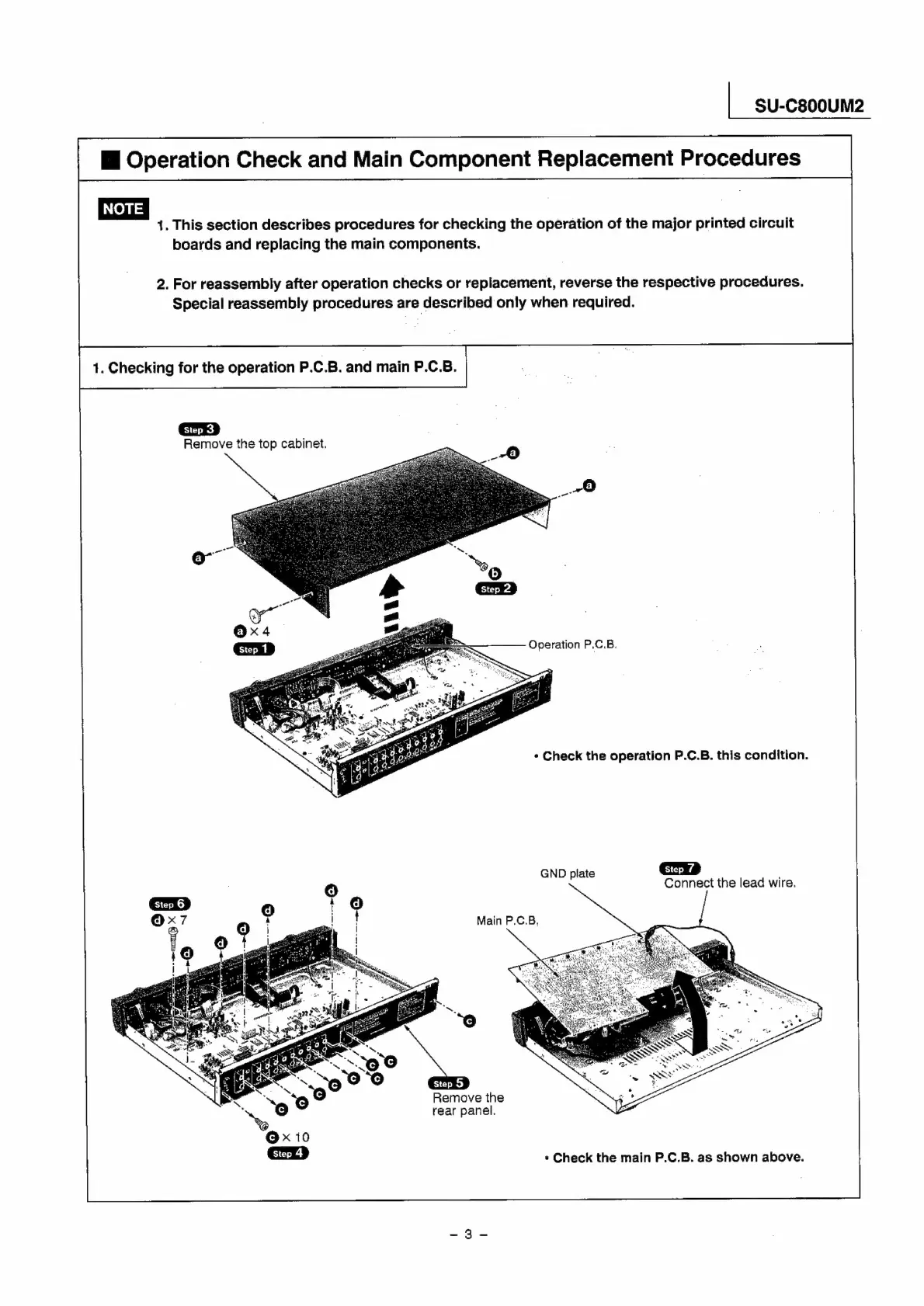

1.
Checking
for
the
operation
P.C.B.
and
main
P.C.B.
Remove
the
top
cabinet.
Operation
P.C.B.
«
Check
the
operation
P.C.B.
this
condition.
GND
plate
Connect
the
lead
wire.
Main
P.C.B.
Remove
the
rear
panel.
