Technics SU-V300M2

PHONES
SPEAKERS
BASS
TREBLE
A
B
MIN MIN MAXMAX
OPERATION
BALANCE
TONE
ON
DEFEAT
MIN MAX
RL
VOLUME
TAPE 1
MONITOR
TAPE 2 AUX TUNER
PHONO
CD
INPUT SELECTOR
10 11 7 8 95 6
1 2
3

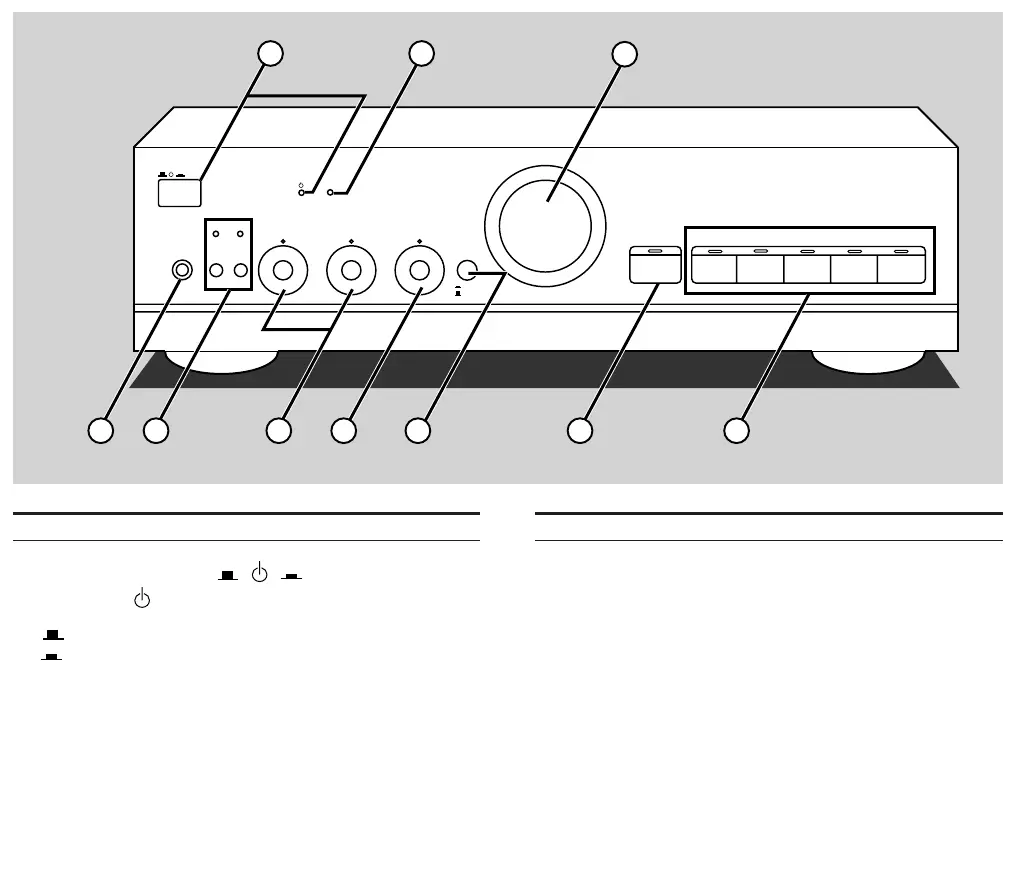

No. Name
1
Unit on/off button ( I) and standby
indicator ( )
Press to switch the unit from on to standby mode or visa versa.
(off): The unit is in standby mode.
(on): The unit is on.
In standby mode, the unit is still consuming a small amount of
power.
When the unit is connected to the AC mains supply, the indica-
tor lights up in standby mode and goes out when the unit is
turned on.
No. Name
2
Operation indicator (OPERATION)
When the power is switched ON, this indicator illuminates after
about 2 seconds when the unit is in the operating condition.
3
Volume control (VOLUME)
5
Headphone jack (PHONES)
6
Speaker select buttons/indicators
(SPEAKERS)
7
Tone controls (BASS, TREBLE)
8
Balance control (BALANCE)
9
Tone control button (TONE)
:
TAPE 1 MONITOR button/indicator
(TAPE 1 MONITOR)
;
Input select buttons/indicators
(INPUT SELECTOR)
I
