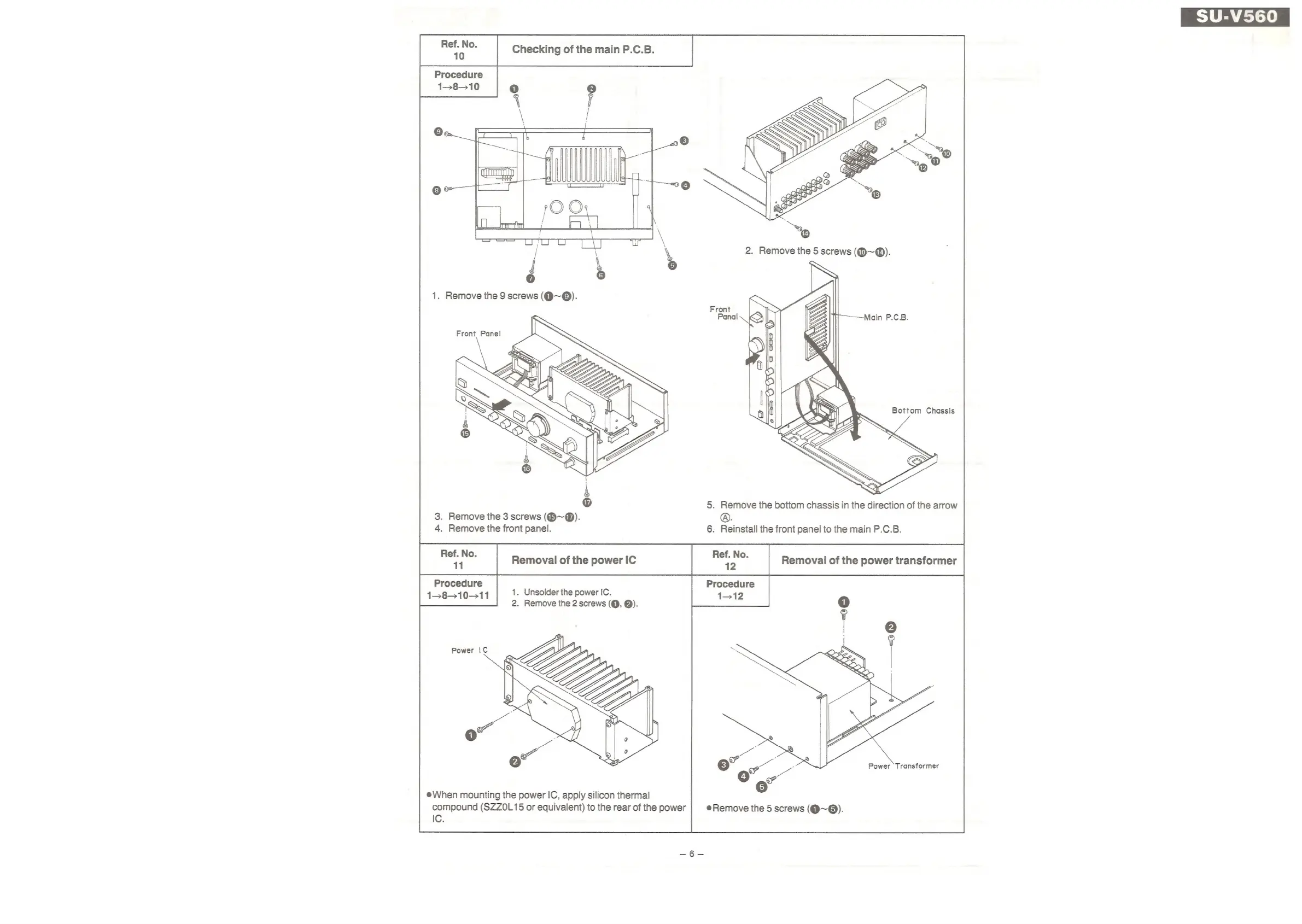

Checking of the main P.C.B.
Procedure
Front Panel
5. Remove the bottom chassis in the direction of the arrow
3. Remove the 3 screws (@~@). :
4. Remove the front panel. 6. Reinstall the front panel to the main P.C.B.
1. Unsolder the power IC.
2. Remove the 2 screws (@, @).
Power Transformer
e@When mounting the power IC, apply silicon thermal
compound (SZZOL15 or equivalent) to the rear of the power e@Remove the 5 screws (@~@).
IC.
