Technics SX-P30

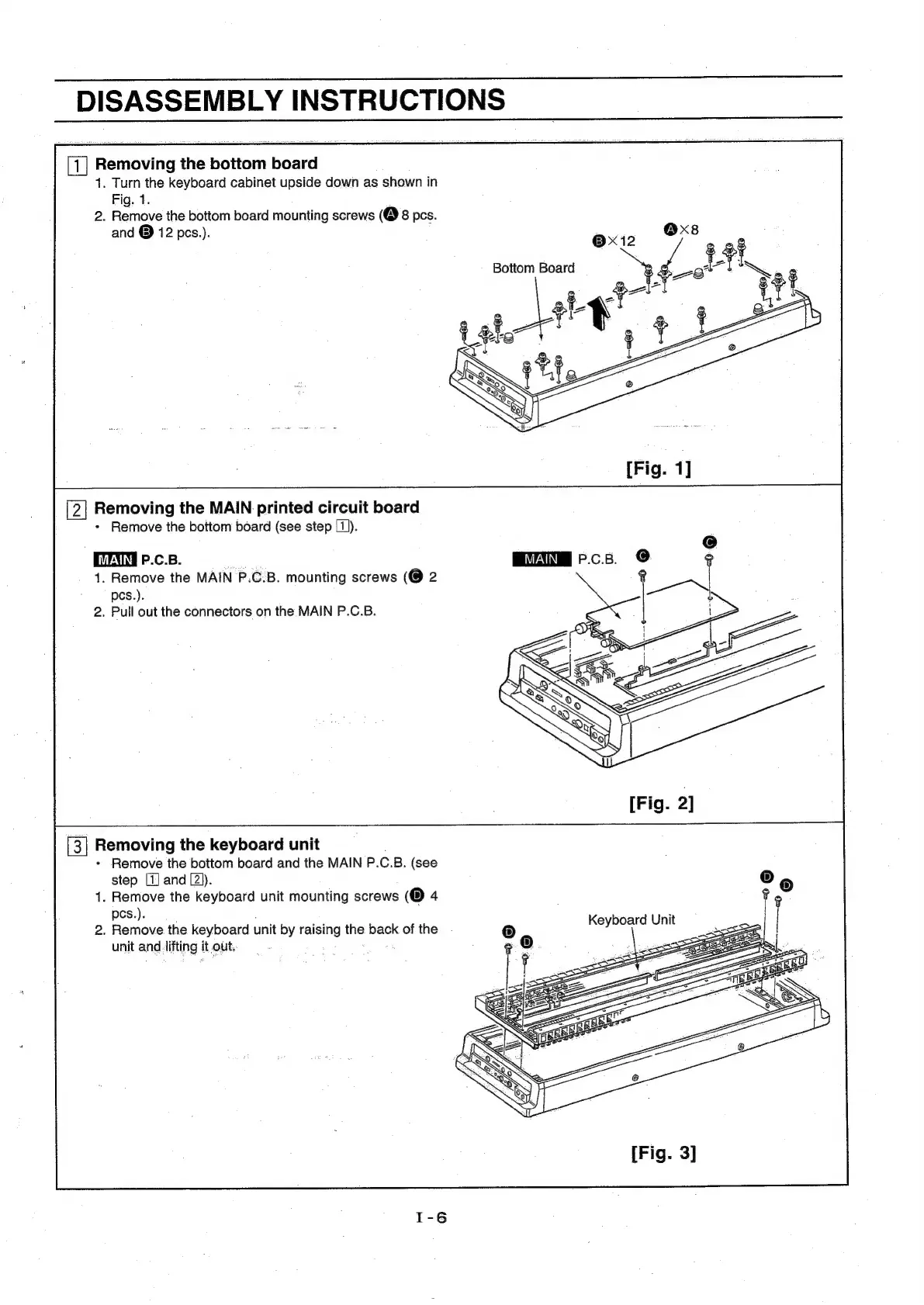

DISASSEMBLY INSTRUCTIONS
Removing the bottom board
1. Turn the keyboard cabinet upside down as shown in
Fig. 1.
2. Remove the bottom board mounting screws (@ 8 pcs.
and ® 12 pcs.).
Removing the MAIN printed circuit board
* Remove the bottom board (see step [1].
DEW P.c.s.
1. Remove the MAIN P.C.B. mounting screws (@ 2
pcs.).
2. Pull out the connectors on the MAIN P.C.B.
Removing the keyboard unit
+ Remove the bottom board and the MAIN P.C.B. (see
step [i] and [2)).
1. Remove the keyboard unit mounting screws (® 4
pcs.).
2. Remove the keyboard unit by raising the back of the
unit and.lifting it out.
