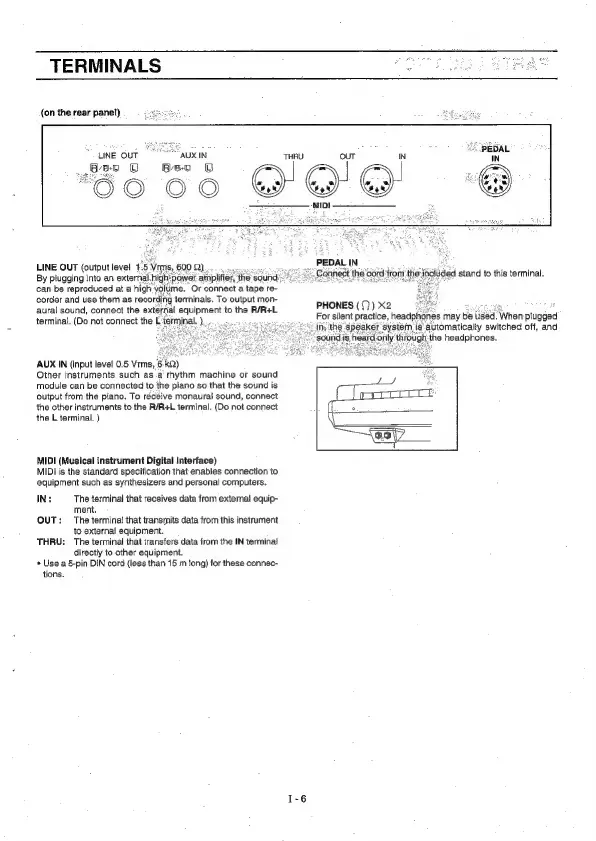

TERMINALS ee HTP
{on the rear panel)
‘AUX IN
Beo DB
LINE OUT
LINE OUT (output level 1.5 Vrms, 600 9). . PEDAL IN.
By plugging into an extemal high*power. amp! ‘t
can be reproduced at a high me. Or connect a tape re-
corder and use them as recording terminals. To output mon-
aural sound, connect the external equipment to the R/R+L
terminal. (Do not connect the L terminal. }.
rom the:inclided stand to this terminal.
PHONES ({}) X2
For silent practice, headphones may be used. When puaged
AUX IN (input level 0.5 Vrms, 6 KQ)
Other instruments such asa’ rhythm machine or sound
module can be connected to the piano so that the sound is
output from the piano. To récéive monaural sound, connect
the other instruments to the R/R+L terminal. (Do not connect
the L terminal. )
MIDI (Musical Instrument Digital Interface)
MIDI is the standard specification that enables connection to
equipment such as synthesizers and personal computers.
IN: The terminal that receives data from external equip-
ment.
OUT: The terminal that transmits data from this instrument
to external equipment.
THRU: The terminal that transfers data from the IN termina!
directly to other equipment.
* Use a 5-pin DIN cord (less than 15 m long) for these connec-
tions.
