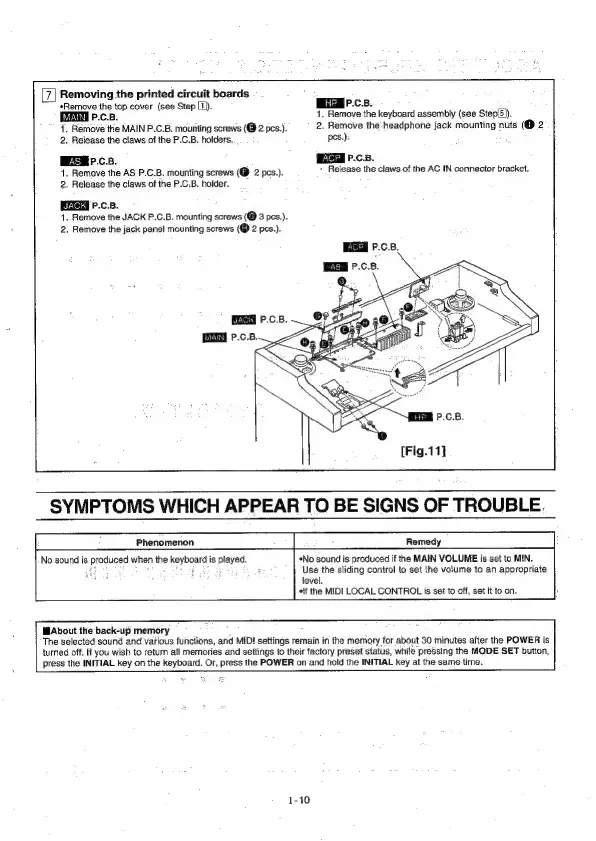

7| Removing the printed circuit boards
«Remove the top cover (see Step [1]. HGiP.c.s.
P.C.B.
1,
Remove
the
keyboard
assembly
(see
Step[5)}.
1. Remove the MAIN P.C.B. mounting screws (@ 2 pes.). 2. Remove the headphone jack mounting nuts (@ 2
2. Release the claws of the P.C.B. holders... pes.)}:
HEGHp.c.B.
P.C.B.
4. Remove the AS P.C.B. mounting screws (@ 2 pes.). + Release the claws of the AC IN connector bracket.
2. Release the claws of the P.C:B. holder. :
P.C.B.
1.. Remove the JACK P.C.B. mounting screws (@ 3 pes.).
2. Remove the jack panel mounting screws (® 2 pes.).
P.C.B..
[Fig.11]
SYMPTOMS WHICH APPEAR TO BE SIGNS OF TROUBLE.
Phenomenon Remedy
No sound is produced when the keyboard is played. «No sound is produced if the MAIN VOLUME is set to MIN.
Use the sliding control to set the volume to an appropriate
level.
*if the MIDI LOCAL CONTROL is set to off, set it to on.
MAbout the back-up memory
The selected sound and various functions, and MID! settings remain in the memory for about 30 minutes after the POWER is
turned off. ff you wish to return all memories and settings to their factory preset status, while pressing the MODE SET button,
press the INITIAL key on the keyboard. Or, press the POWER on and hold the INITIAL key at the same time.
1-10
