Connections
CONNECTIONS

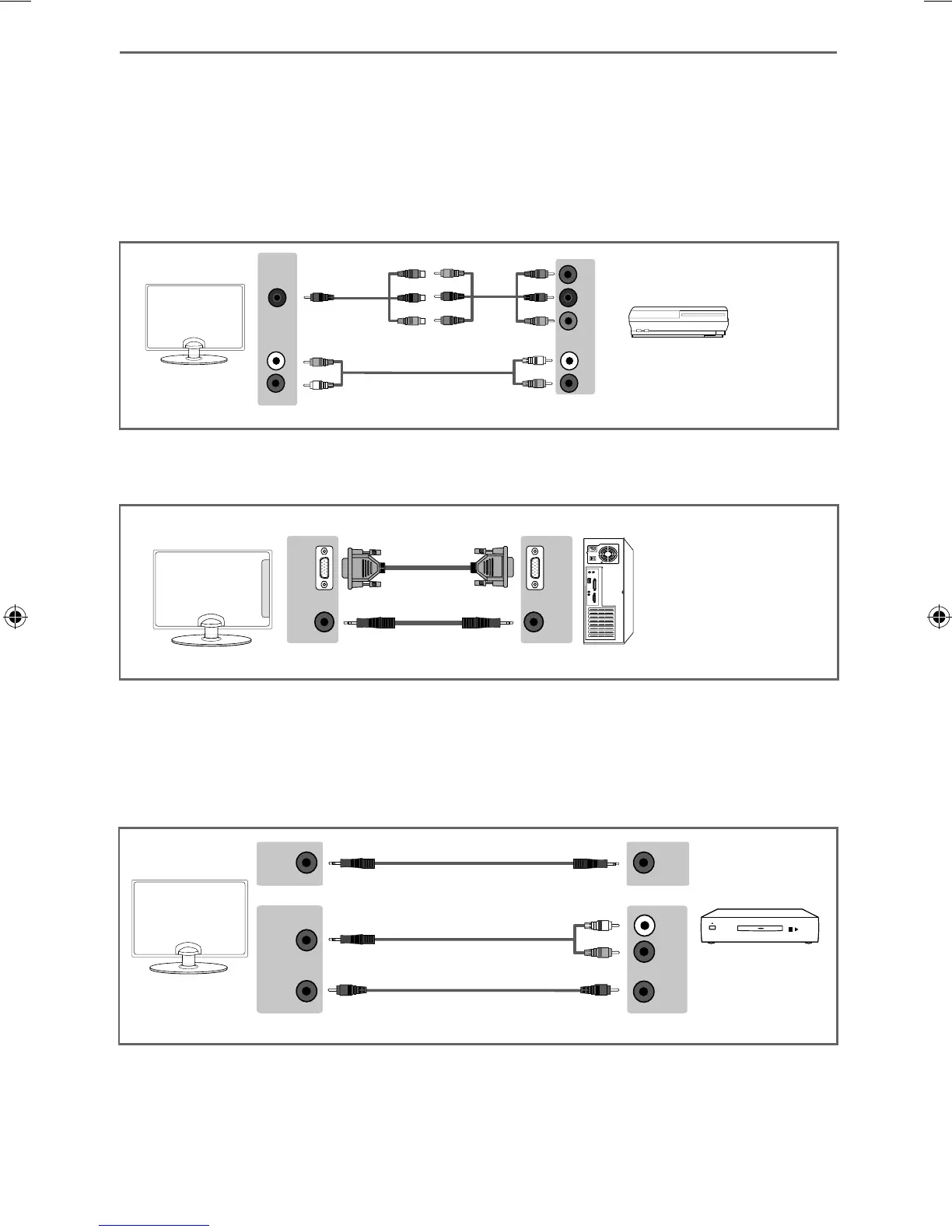

Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component.
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV Source should be set to VGA/PC
VGA/PC
IN
VGA/PC
OUT
VGA/PC
(AUDIO
IN)
AUDIO
OUT
Mini
YPbPr
Y
PB
PR
L
R
L
R
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options to connect a device via the 3.5mm Earphone Output.
3.5mm
EARPHONE
3.5mm
EARPHONE
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for 3.5mm EARPHONE Output
COAXIAL
OUT
COAXIAL
IN
3.5mm
AUDIO
IN
L
R
