9
6 x ST (4x14)

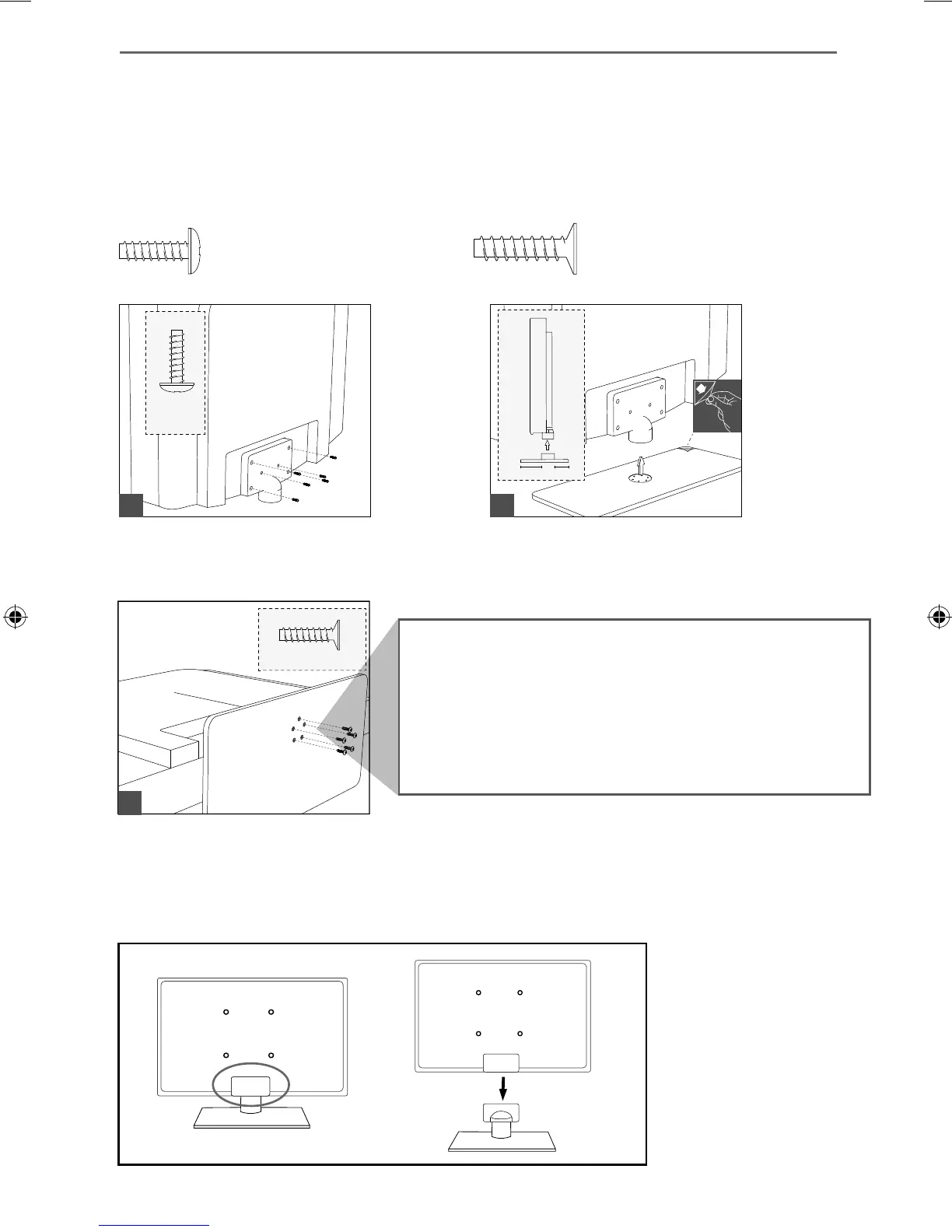

There are two types of screws provided as shown below.
Attaching the stand
To complete the stand installation you will require a cross head screw driver
5 x ST(3.7x18)
6 x
ST (4x14)
1 1/2
12
3
Used for attaching the stand neck
to the TV ( g.1)
Used for attaching the stand base
to the stand neck ( g.3)
(fi g.1) Attach the stand neck to the
rear of the TV set using the 6 x ST(4x14)
screws provided.
(fi g.2) Peel off the protective plastic cover
then attach the stand base to the stand neck.
(fi g.3) Secure the base to the neck by
using the 5 x ST(3.7x18) screws provided.
Detaching the stand
Remove the screws highlighted then remove the stand base and neck from the rear of the TV set.
When securing the self-tapping screw/s into the base of the stand (on
fi rst installation) the screw/s will be naturally tight as they create a
thread in the plastic of the stand neck in order to support a TV of this size.
a) Ensure the cross head screw driver tip fi ts correctly into the head of the
screw and that it is not too big or small.
b) Screw in all screws individually and partially before tightening all of the
screws fully.
c) If they become very tight try loosening them slightly and then re-tightening
them once again as this will continue the process of creating the thread for
the screws.
Attaching/Detaching the Stand
ATTACHING/DETACHING THE STAND
5 x ST (3.7x18)
Counter Sunk
User Guide -Technika - 40F21B-FHD -40F21B-FHD-DVD TEC-MAN-0082.indd Sec1:9User Guide -Technika - 40F21B-FHD -40F21B-FHD-DVD TEC-MAN-0082.indd Sec1:9 12/19/2014 3:20:19 PM12/19/2014 3:20:19 PM
