Connections
CONNECTIONS

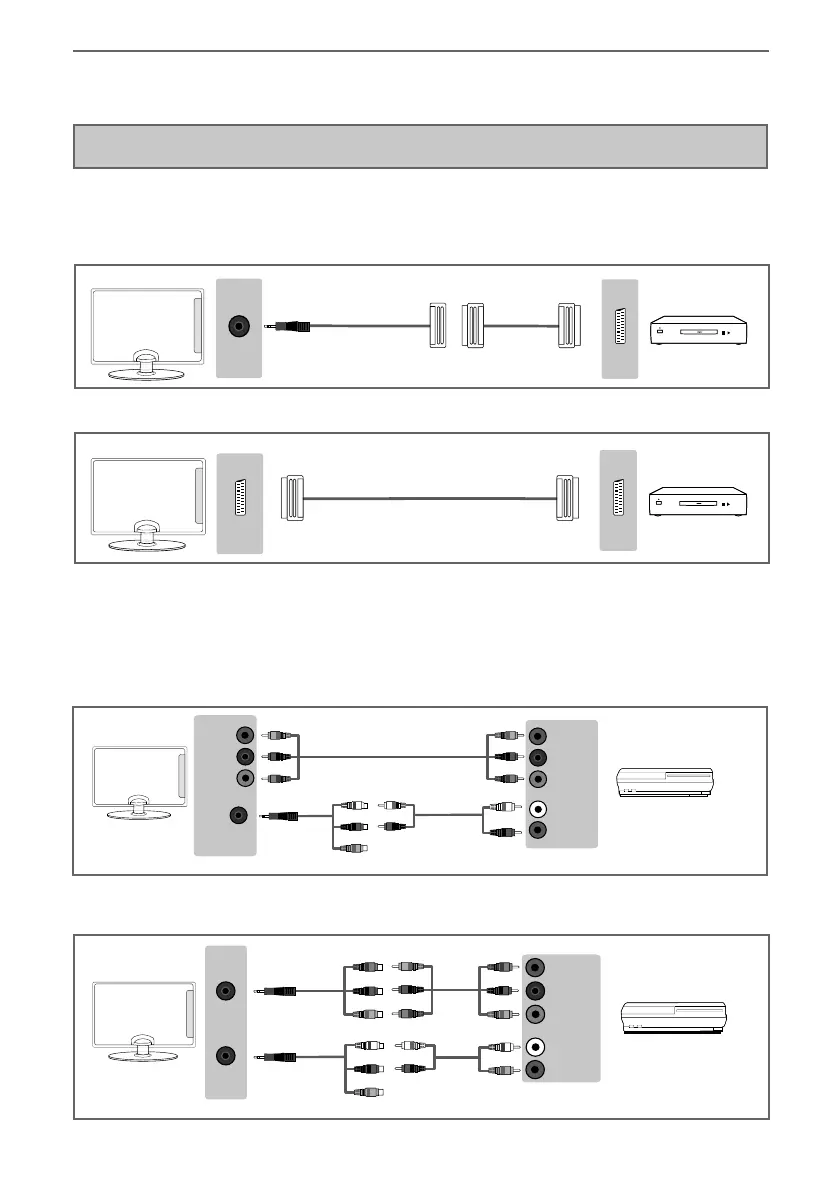

Connecting to a device with SCART output
SCART connection (using SCART to AV cable) for the 32G22B-HDR, 32G22B-HDR/DVD, 32G22B-FHD and
40G22B-FHD models only. TV Source should be set to Composite/AV
SCART connection for the 50G22B-FHD model only. TV Source should be set to SCART
Component/YPbPr connection for the 50G22B-FHD model only. TV Source should be set to
Component/YPbPr
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
Scart
AV in
Scart
Scart
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
Component/YPbPr connection for the 32G22B-HD, 32G22B-HD/DVD, 32G22B-FHD and 40G22B-FHD models
only. TV Source should be set to Component/YPbPr
AV in
Video (yellow)
is not connected
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
Y (green)
PB (blue)
PR (red)
AV in
YPbPr
Y (green)
PB (blue)
PR (red)
Video (yellow)
is not connected
R (red)
L (white)
