1717

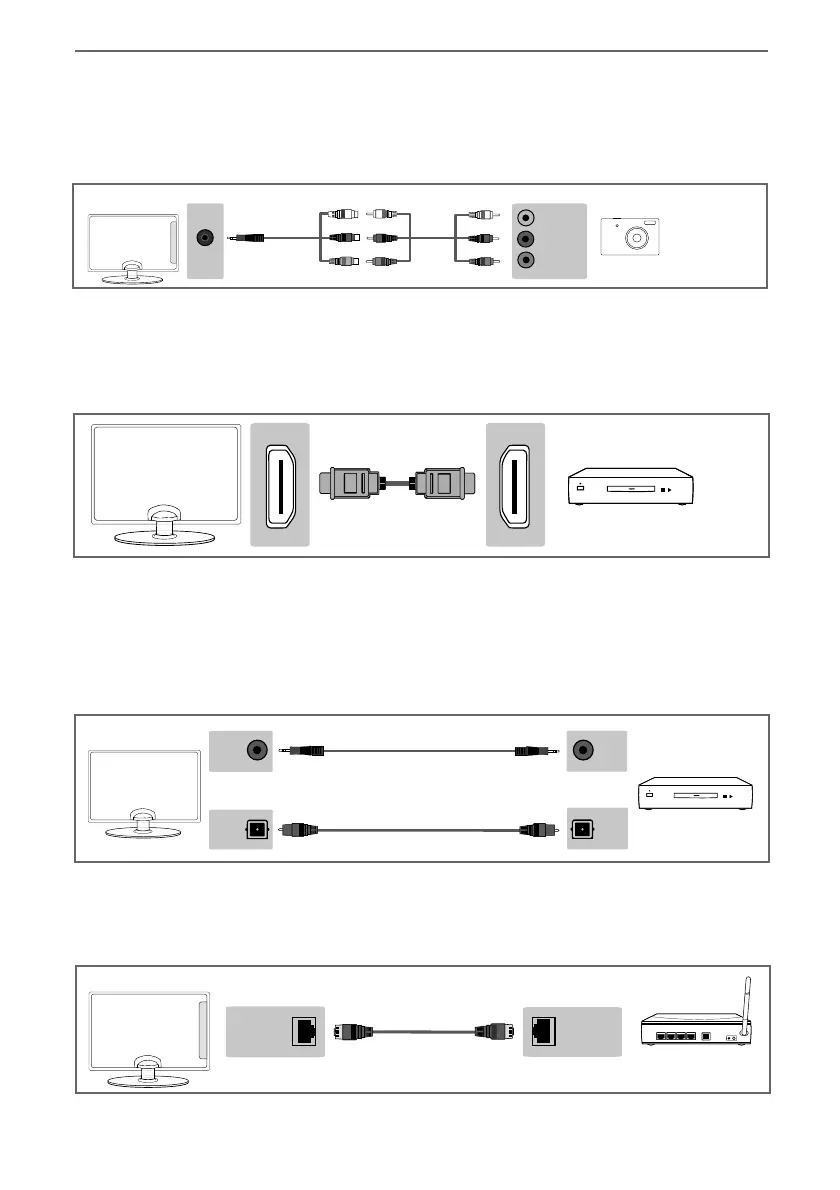

Connecting to a device with Composite AV/Video output
TV Source should be set to Composite/AV
L (white)
R (red)
Video
(yellow)
AV in
Connecting to a device with HDMI output
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)
Connections
CONNECTIONS
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options when connecting a device via the 3.5mm Earphone Output and the
Digital Optical Audio Output
3.5mm
EARPHONE
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for Digital Optical Audio Output
DIGITAL
AUDIO
OUT
(OPTICAL)
3.5mm
AUDIO
IN
DIGITAL
AUDIO
IN
(OPTICAL)
Ethernet
Port
Ethernet
Port
Connecting an Ethernet/Network cable
The Ethernet port is used only for Pay TV services and Freeview HD (Freeview services are only available in
the UK). It is not intended to be used for internet/network use.
User Guide - 32-40 inch O models - TEC-MAN-0101.indd Sec1:17User Guide - 32-40 inch O models - TEC-MAN-0101.indd Sec1:17 23/11/2016 16:17:3723/11/2016 16:17:37
