A(mm) B(mm) C(mm) D E
760 50 mini 20 mini Air intake Air exit 5mm
Cautions
1. The ceramic cooker hob must be installed by qualified personnel or technicians.
We have professionals at your service. Please never conduct the operation by
yourself.
2. The ceramic cooker hob shall not be mounted to cooling equipment,
dishwashers and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat radiation can be
ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to
heat.
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not
apply force onto the controls protruding from the hob.

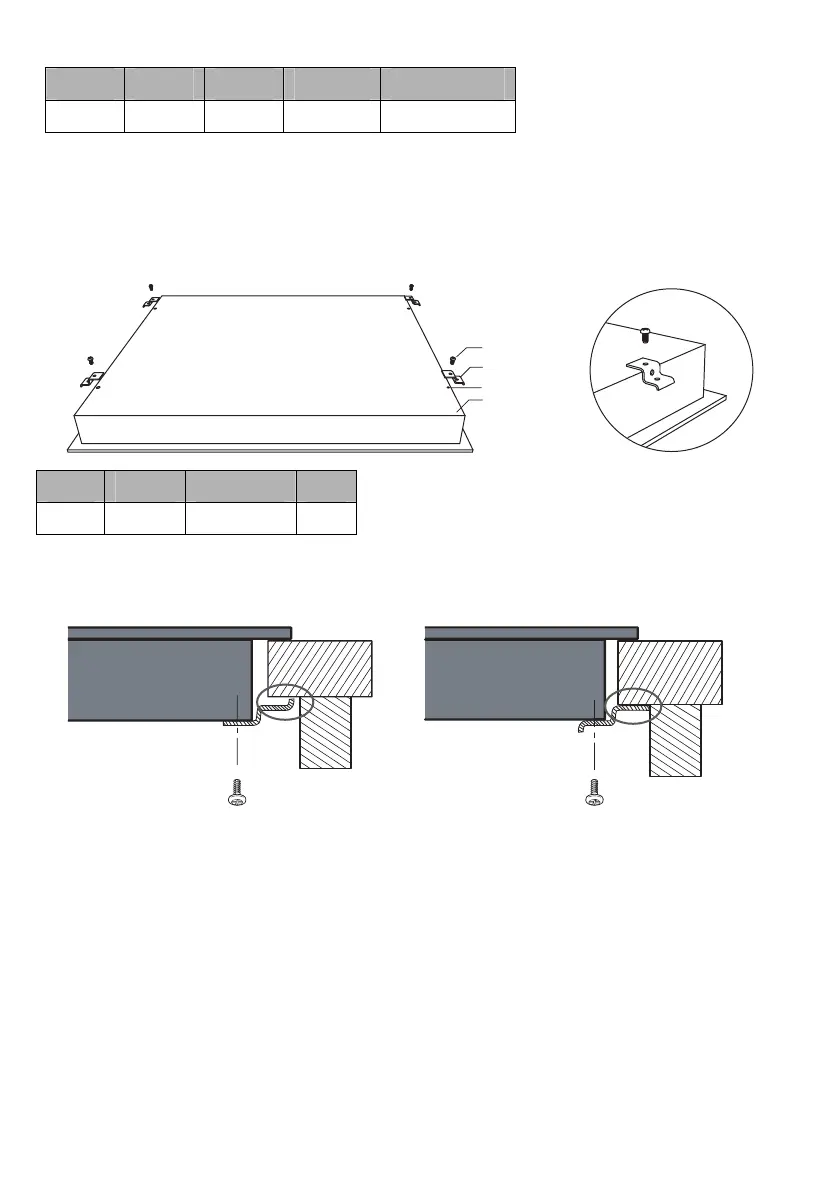

Fix the hob on the work surface by screw four brackets on the bottom of hob (see
picture) after installation.
A B C D
screw bracket Screw hole base
Adjust the bracket position to suit for different work surface’s thickness.
A
B
C
D
HOB
TABLE
A
HOB
TABLE
B
BRACKET
BRACKET
