Technische Alternative UVR63 - Program 560 - Cascade: S1  S2; S3  S4  S5

49
S1
S2
A1
A2
A3
S3
S4
S5
TK1 TK2 TK3

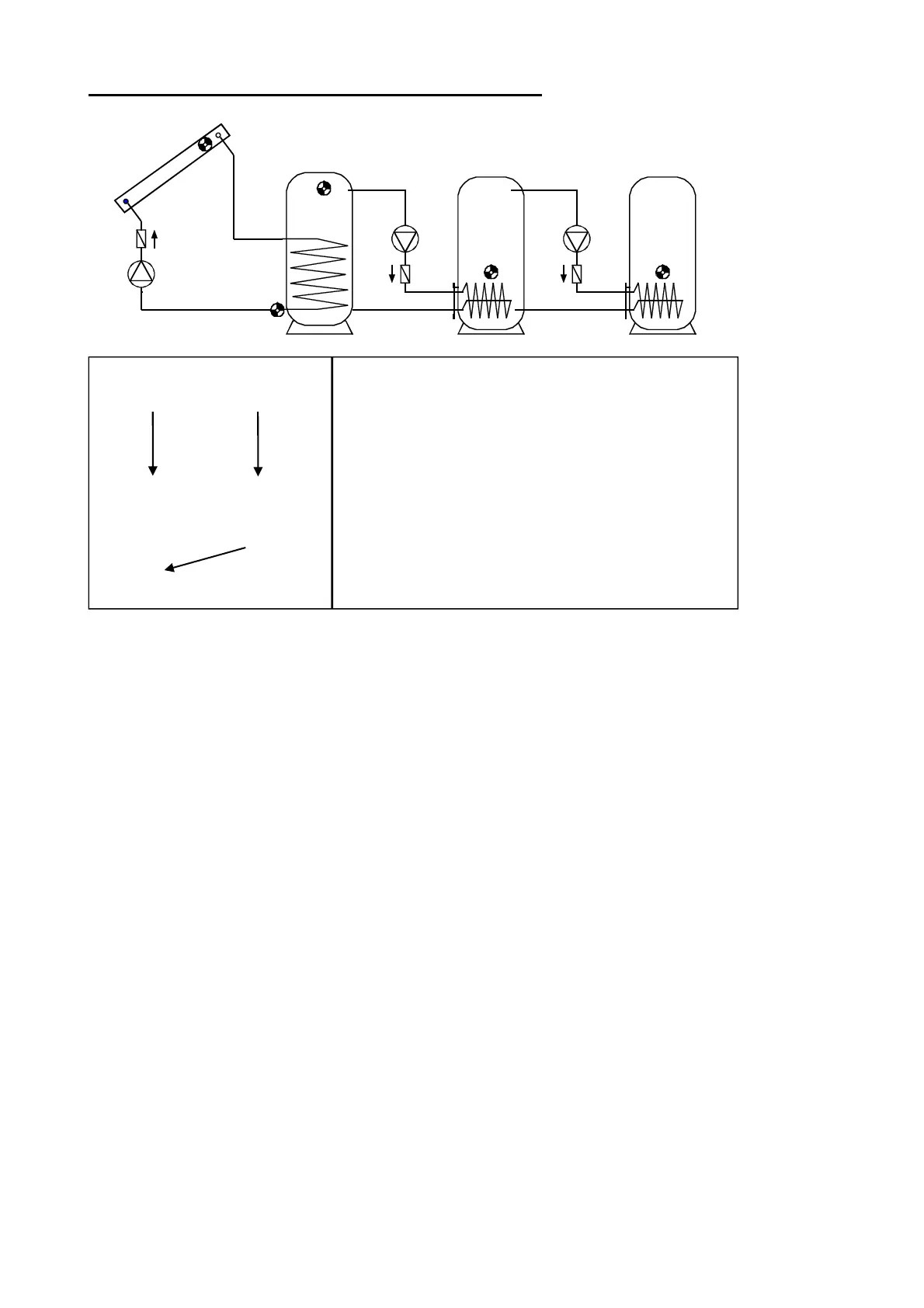

Program 560 - Cascade: S1  S2 / S3  S4  S5
Program 560: Pump A1 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S2 by the difference diff1
 and S2 has not exceeded the threshold max1.
The feed pump A2 runs when:
 S3 is greater than the threshold min2  and S3 is greater than S4 by the difference diff2

and S4 has not exceeded the threshold max2.
The feed pump A3 runs when:
 S4 is greater than the threshold min3  and S4 is greater than S5 by the difference diff3

and S5 has not exceeded the threshold max3.
A1 = S1 > (S2 + diff1) & S1 > min1 & S2 < max1
A2 = S3 > (S4 + diff2) & S3 > min2 & S4 < max2
A3 = S4 > (S5 + diff3) & S4 > min3 & S5 < max3
All programs +1: The pump A3 runs if:
 S3 is greater than threshold min2  and S3 is higher than S5 by the difference diff3
 and S5 has not exceeded threshold max3
or

S4 is greater than threshold min3  and S4 is higher than S5 by the difference diff3

and S5 has not exceeded threshold max3
A3 = (S3 > (S5 + diff3) & S3 > min2 & S5 < max3)
or (S4 > (S5 + diff3) & S4 > min3 & S5 < max3)
S1 S3
min1 min2
S2 S4
max1 max2
min3
S5
max3
diff3
A3
diff1
A
1
diff2
A
2
Required settings:
max1 … limit TK1 S2  A1
max2 … limit TK2 S4  A2
max3 … limit TK3 S5  A3
min1 … switch-on temp. coll. S1  A1
min2 … switch-on temp. TK1 S3  A2
min3 … switch-on temp. TK2 S4  A3
diff1 … coll. S1 – TK1 S2  A1
diff2 … TK1 S3 – TK2 S4  A2
diff3 … TK2 S4 – TK3 S5  A3
