Creating a mean (average) AV
Setting of the time in seconds over which an averaging of the
measured value should be carried out (ex works = 1.0s).

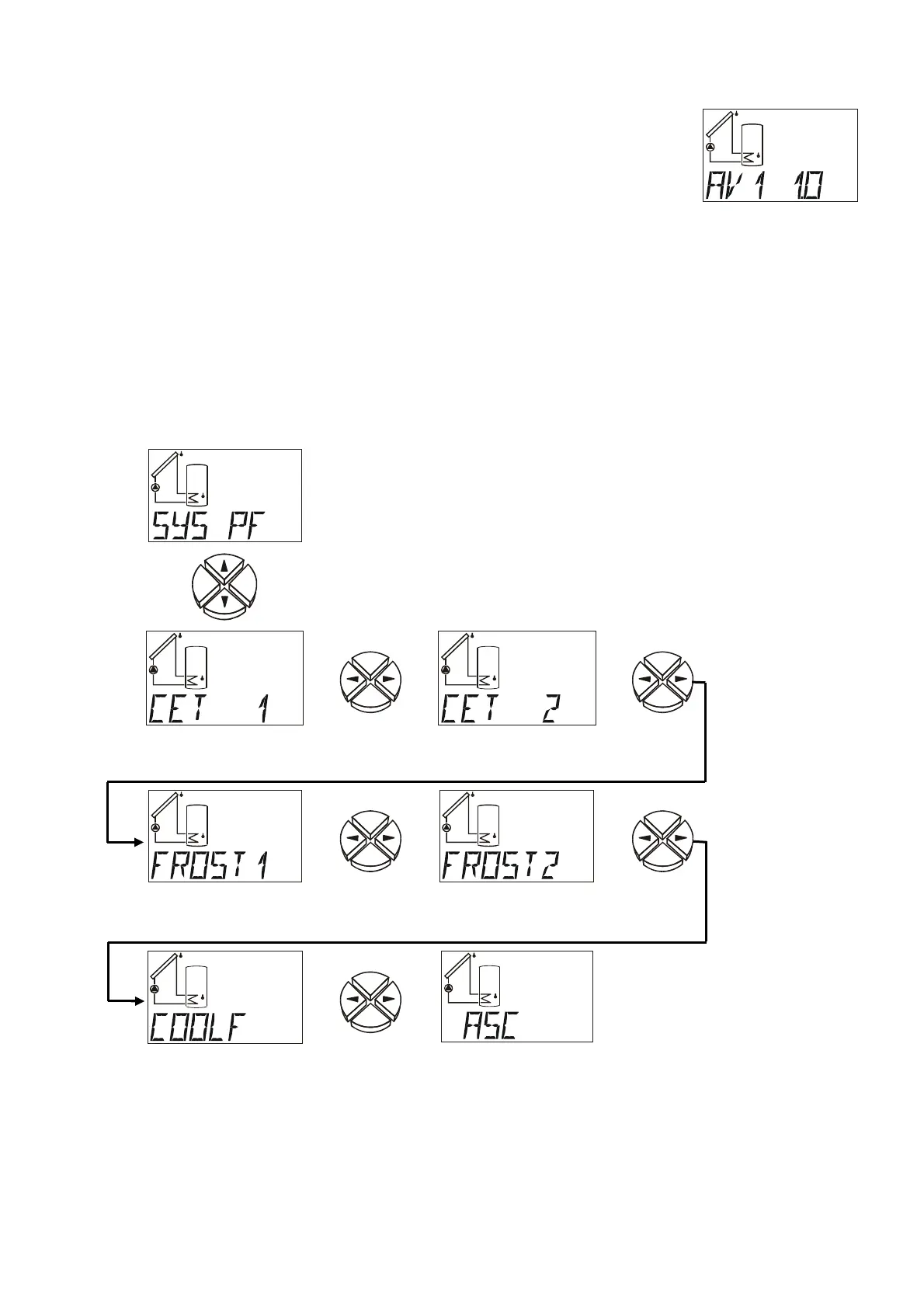

Example: AV1 1.0 Create an average of sensor S1 for 1.0 seconds
For simple measurements, 1.0-2.0 should be selected. A large average slows everything
down and is only recommended for the sensors for the heat counter.
The measurement of the ultra-fast sensor for the preparation of hot water also requires a fast
evaluation of the signal. Hence, the creation of the average of the sensor should be reduced
to 0.3 to 0.5 although fluctuations will then occur in the display.
No averaging is possible for the volume flow encoder VSG and the wind sensor WIS01.
Setting range: 0.0 to 6.0 seconds in increments of 0.1 seconds
0.0 no average
System protection function SYS PF
Collector excess
temperature limit 1
Collector excess
temperature limit 2
Frost protection
function 1
Frost protection
function 2
Collector cooling
function
Anti-blocking protection
Two collector excess temperature limiter functions and two frost protection functions are
available. These functions can be set completely independently of the program diagram
selected.
The first limit function
CET1 is activated ex works; all other functions are disabled.
