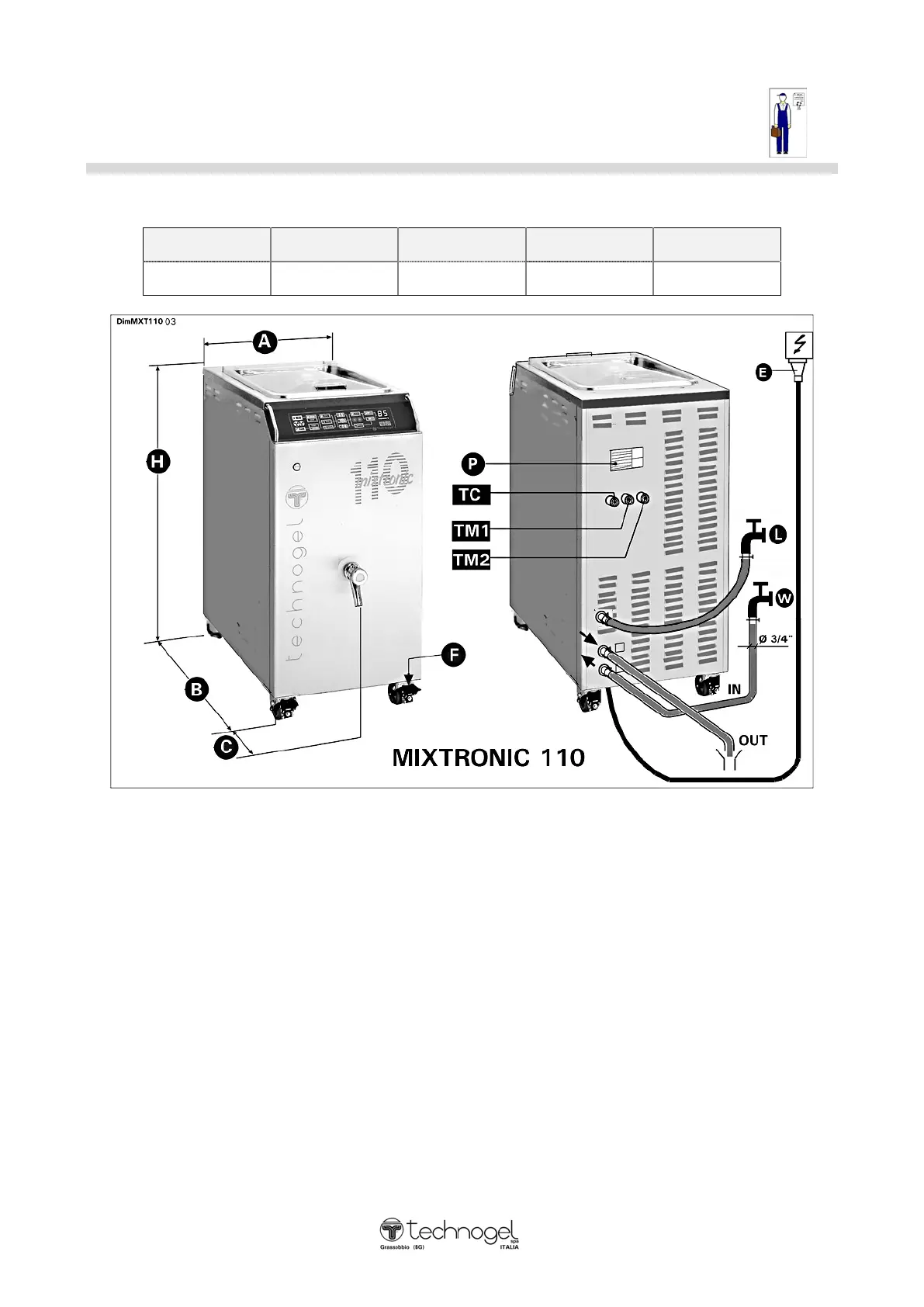

⇒ Dimensions and different facilities: MIXTRONIC 110
Dimensions and weight:
A – larghezza B – profondità C – rubinetto H – altezza Peso a macchina
piena
520 mm. 900 mm. 100 mm. 1083 mm. 370 kg.
WARNING:
For the good functioning, the machine does not have to be anchored to the floor, neither some particular
technical precaution are to be taken to limit the vibration transmission.
The installation requires the following operations:
⇒ Around the machine perimeter, leave an operative space of at least 10” (25 cm) necessary to carry out
the works smoothly.
⇒ Make sure the machine is steady by blocking the brakes (F) of the front wheels using the feet (DO NOT
USE THE HANDS).
⇒ Connect the hidro-system with the water inlet and outlet (see above picture point W). For the pressure
and consumption data refer to page 11 (MIXTRONIC 110).
⇒ Connect the electric system (see above picture point E). For the power and absorption data refer to page
10 (Table A – MIXTRONIC 110).
