Technogym MB430 - Page 15

G
I
I
H
D
D
M10x90 IX
4
10x25x3 IX
M10 Z
8
4
D
I
M10x30 IX
10.5x17.5x2.2
10x25x3 IX
8
8
8
Dual Adjustable Pulley
15

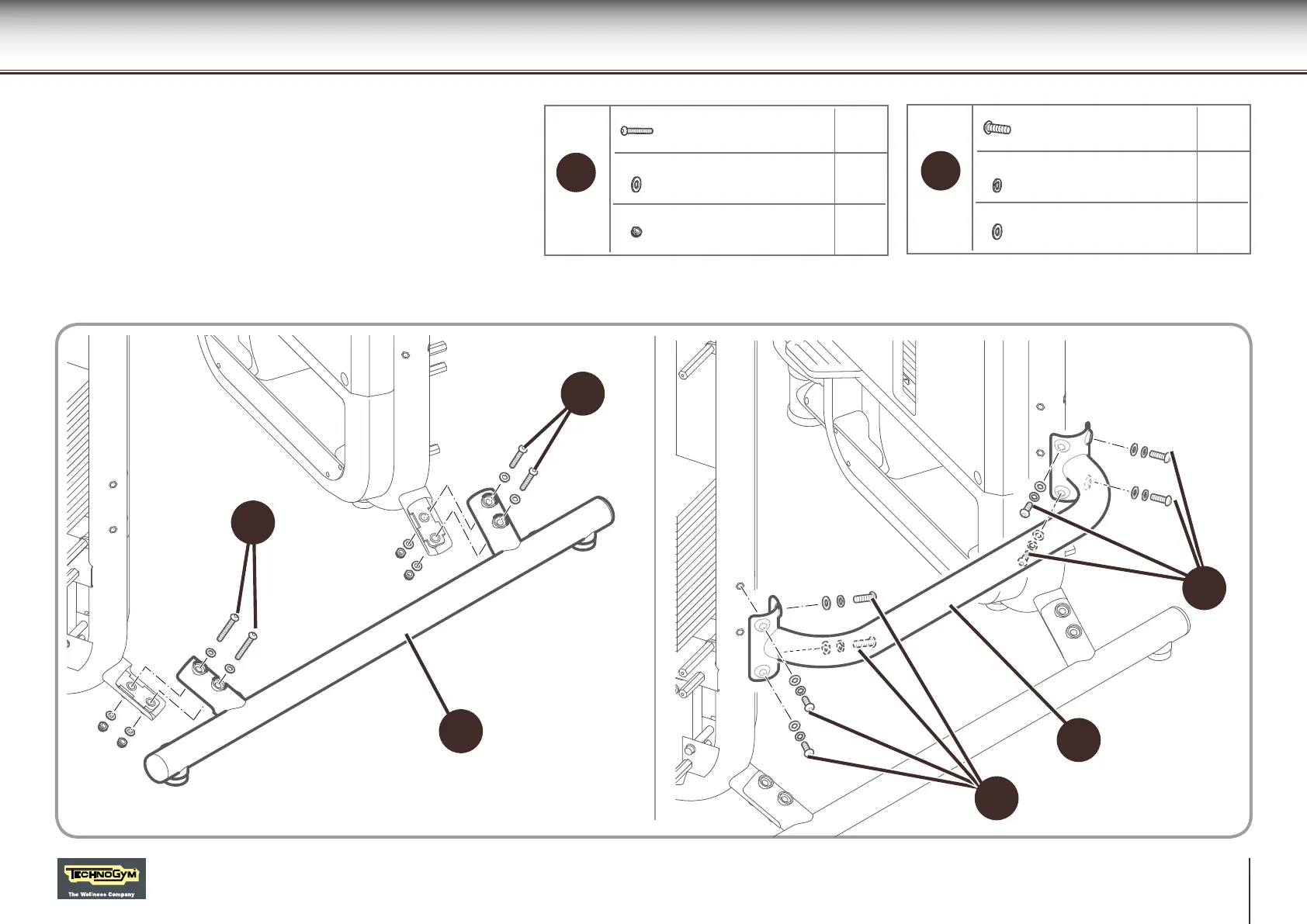

Assembling the equipment
Secure the lower crosspiece (G) with the 4 screws (I); then
the crosspiece (H), with the 8 screws (D).
Tighten all the screws.
