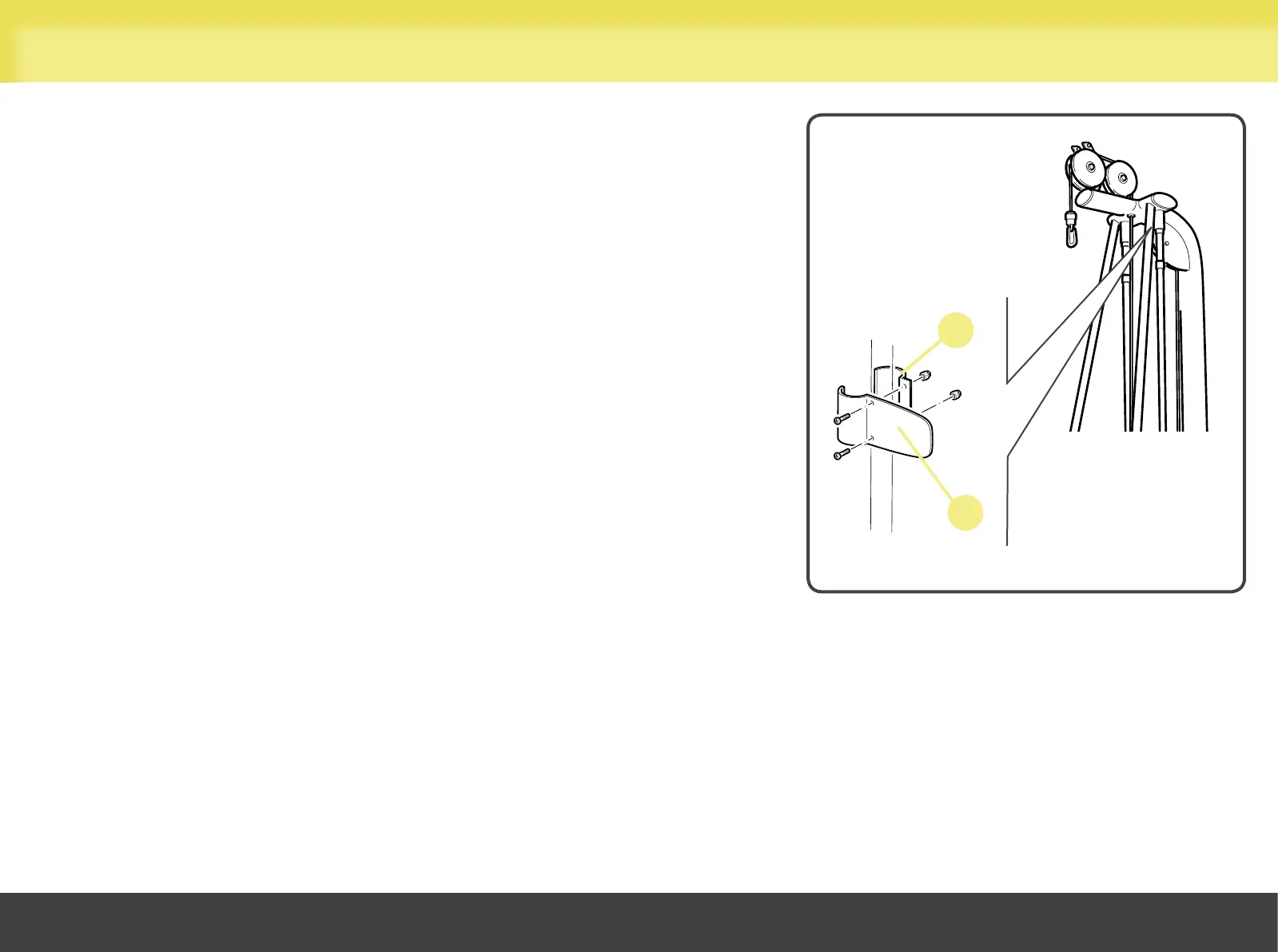

Assembling the number holder
The number holder must be assembled immediately underneath the beams:
standing facing the equipment, affix the number holder on the left tube supporting
the guide, so that it is flush with the rubber stop of the guide.
The number holder is divided into two pieces: the larger section (A) goes on the
front, while the crescent closure (B) goes on the back of the equipment.
Insert the two screws (M5x6 Z) from the front of the equipment, mating them with
the two M5 cap nuts at the rear; then lock down using the appropriate spanners.
The number holder is optional.
