Technogym Selection Multi Hip - Replacing the cable

22
D
B
A
Multi Hip
Contents
Replacing the cable
The cables must always be replaced at the first
sign of wear, even if it only affects the outer
rubber protection.
Warning
Every month, carefully inspect the
condition of the cables.
Danger
ALWAYS use cables supplied directly
by Technogym.

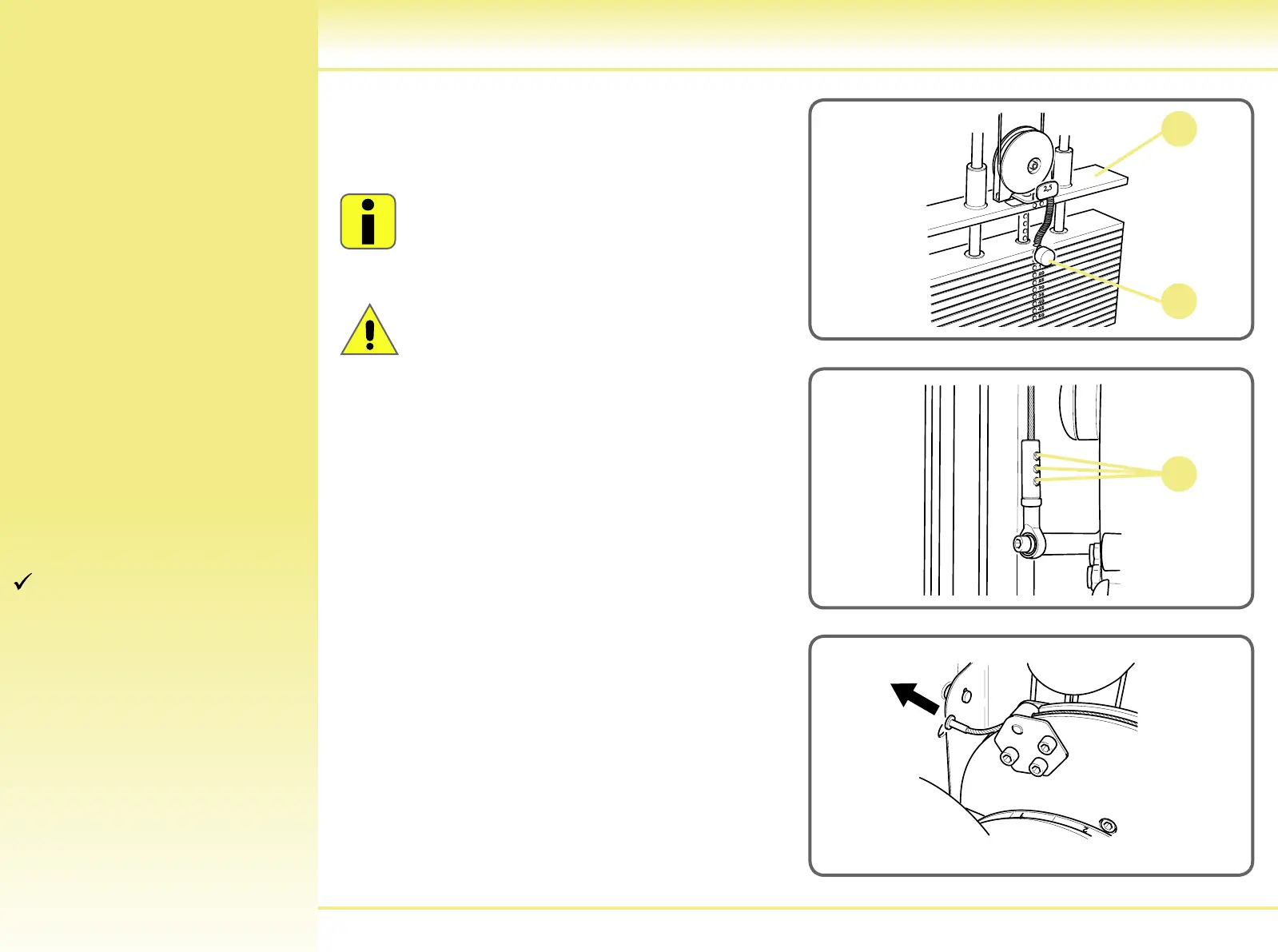

To replace the cable, proceed as follows:
- remove the pin (
A) from the weight stack,
shift the roller to the right or left to lift the
weight stack cross (D), then insert the pin
in the second plate to hold the weight stack
cross (D) in the up position;
- back off the screws (
B) at the end of the
cable, behind the central frame;
- extract the cable from the cam side;
