Assembling the equipment

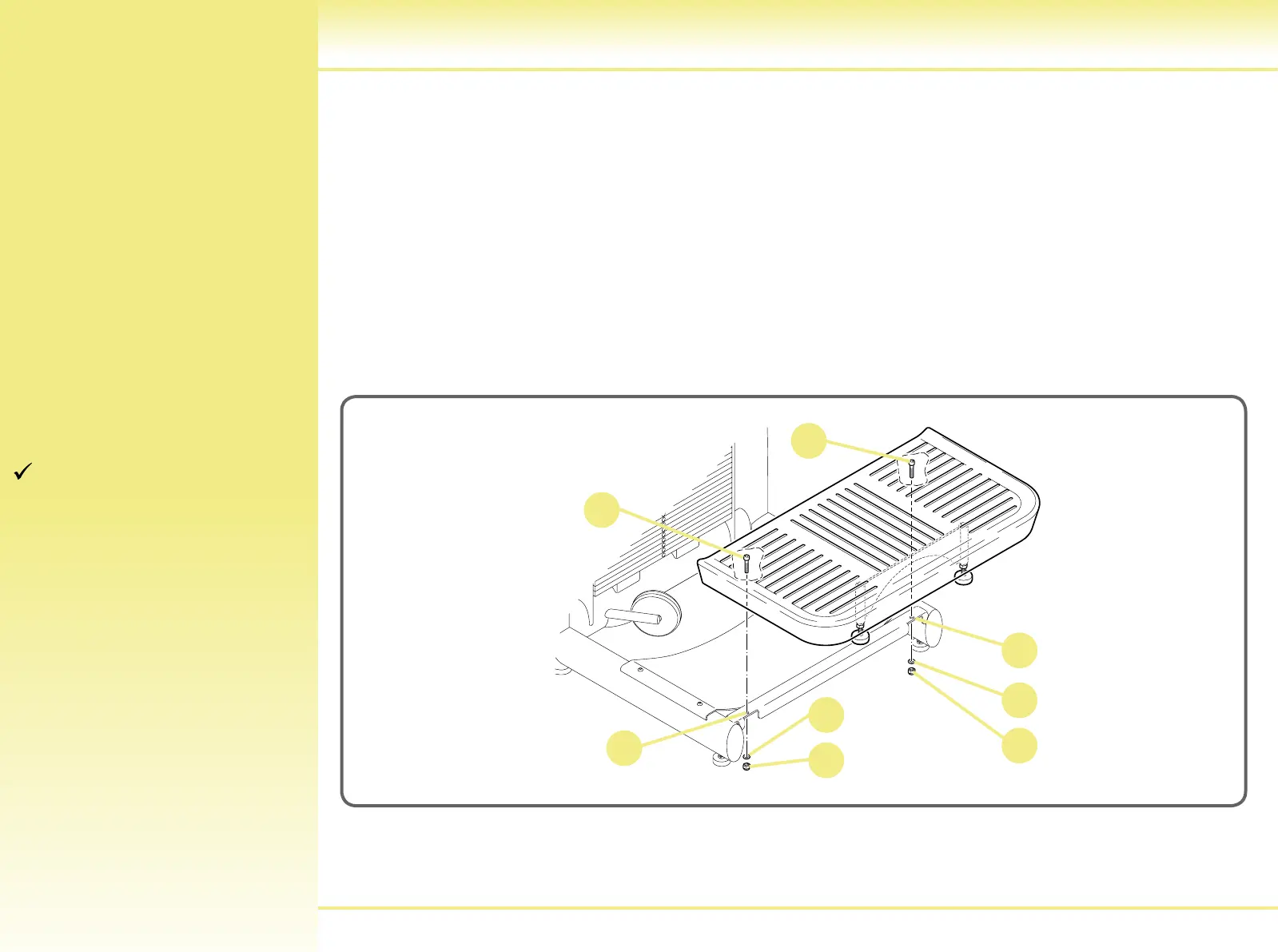

To assemble the platform:
- untie the straps which retain the platform on the equipment, and remove its packing
materials;
- on the lower part of the platform (
A), remove the two nuts (C) and the two washers (D) from
the two threaded pins (B);
- apply the platform (A) on the equipment, so that the two threaded pins (B) on the lower part go
inside the two holes (E) on the equipment frame (on the opposite side to the weight stack).
- apply the washer (D) and the nut (C) onto the two threaded pins and lock down with 17-mm
open end wrench.
