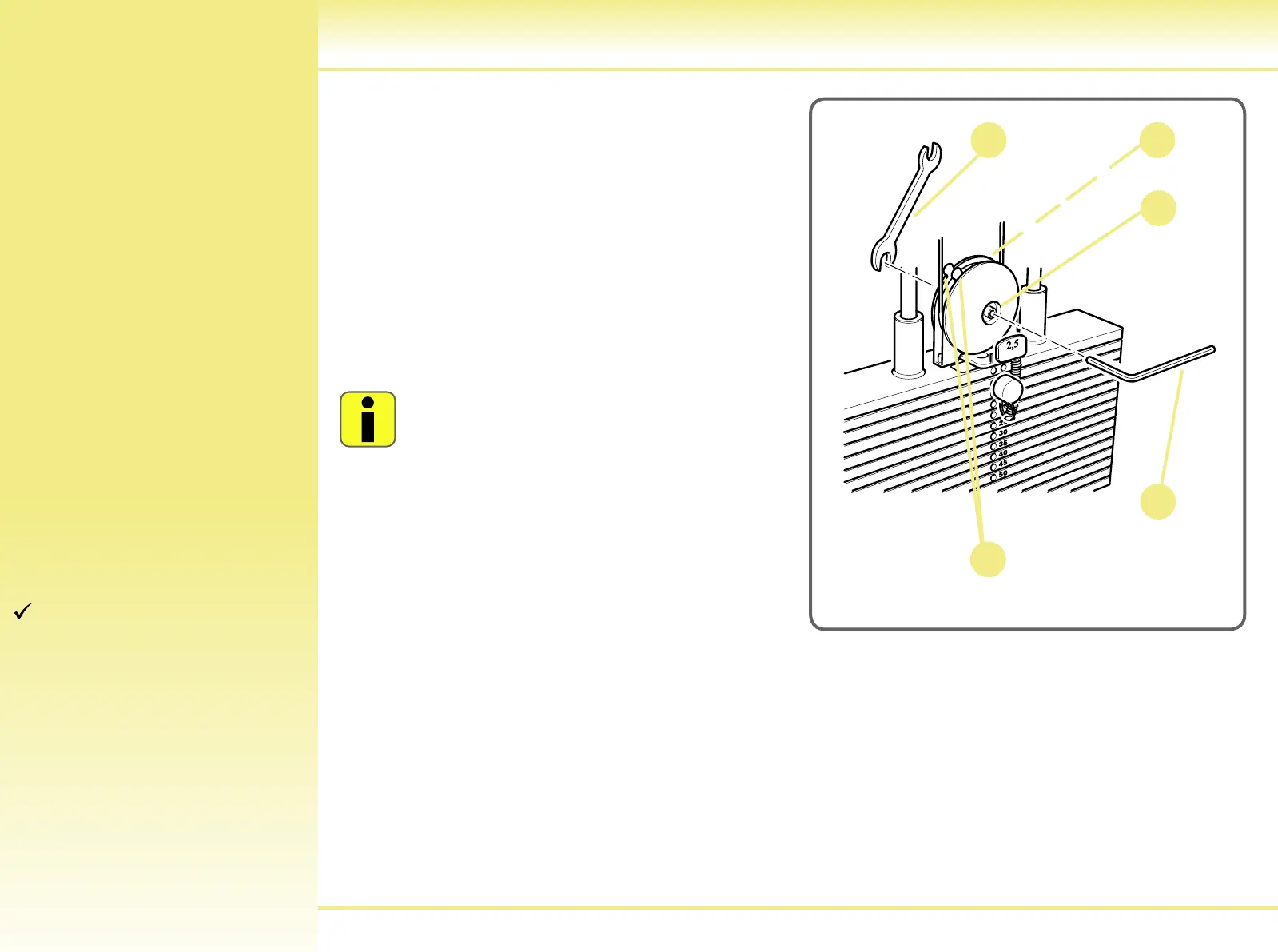

Adjusting cable tension
To take up some of the slack in the weight
stack cable proceed as follows:
- use an Allen key (A) and an open spanner (B);
- back off the nut (C) securing the screw (D)
by half a turn in an anticlockwise direction;
- simultaneously turn both housings of the
pulley, in a clockwise direction to tighten
the cable or in an anticlockwise direction to
loosen it;
Warning
Turn the two housings by the same
amount on either side: to do this,
continually check that the tabs (E)
remain perfectly aligned.
- after completing the operation, lock down
the nut (C) holding the screw (D).
