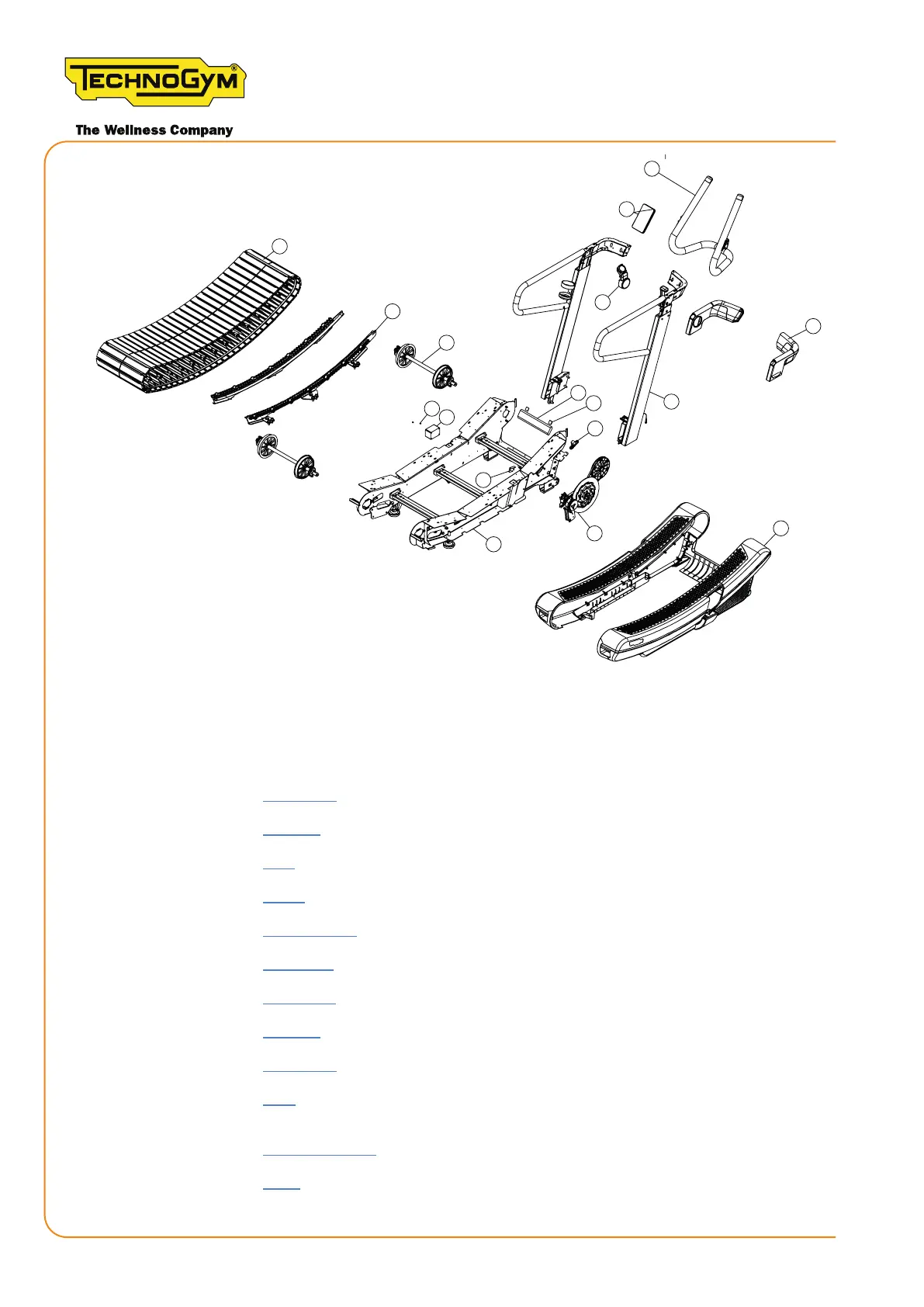

Skillmill
Technical Service Guide - Rev. 3.5
email: support@technogym.com
2 S0WR01167AC BATTERY Console Skillmill 3 1
3 S0Z000826AA SCREW 4x8 Zn U8112 (Ph) 3 2
4
SPEED SENSOR See table: SH0005583 9 1
5 TREAD BELT See table: H0010698 9 1
6 BRAKE See table: H0010724_BATTERIA-H0012201 9 1
7 UPRIGHT See table: H0010744 9 1
8 ROLLER CONVEYOR See table: H0010780 9 1
9 UPPER CASING See table: H0010997 9 1
10 LOWER CASING See table: H0011000 9 1
11 HANDLEBAR See table: H0011161 9 1
12 SENSOR ANGLE See table: H0011204 9 1
13 FRAME See table: H0011714-10697 9 1
14 SW0008201AB DISPLAY Skillmill Console 1 1
15 SMARTPHONE SUPPORT See table: H0011741-11200 9 1
16 ROLLER See table: H0011862 9 1
17 ST0001156AB LOW KIT / 1 qa1 1
Pos Code Technical Specifications C N Q.ty
1 VELCRO 3M DUAL LOCK SJ3550 (25x25) 3 2
S0K001139AA
