SL-12
Installation, Operation and Maintenance
Page 2
GENERAL SPECIFICATIONS
See Figure 1 SL-12
A Rise Height (Screw Pads Highest Position) 78 1/8”" (1984 mm)
B Overall Height 13’-10" to 14’-7” (4216 mm to 4445 mm)
C Overall Width 139 3/4" (3550 mm)
D Drive-Thru Clearance 103" (2616 mm)
E Floor to Overhead Switch 13’-3 ½" to 14’-½” (4051 mm to 4280 mm)
F Minimum Arm Reach 35
3/4" (910 mm)
G Maximum Arm Reach 54
1/2" (1386 mm)
H Screw Pad Height 5 1/4" to 7 1/4" (133 mm to 184 mm)
K Inside of Columns 115" (2921 mm)
Lifting Capacity * 12,000 lbs. (5443 kg)
Ceiling Height Required 167”
(4240 mm) / 176" (4470 mm)
Motor 2HP,
Single Phase, 60Hz
Voltage 208-230
Speed of Rise ** 66 seconds
Max Load Per Arm 3000 lbs (1360 kg)
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on the weight of the vehicle.

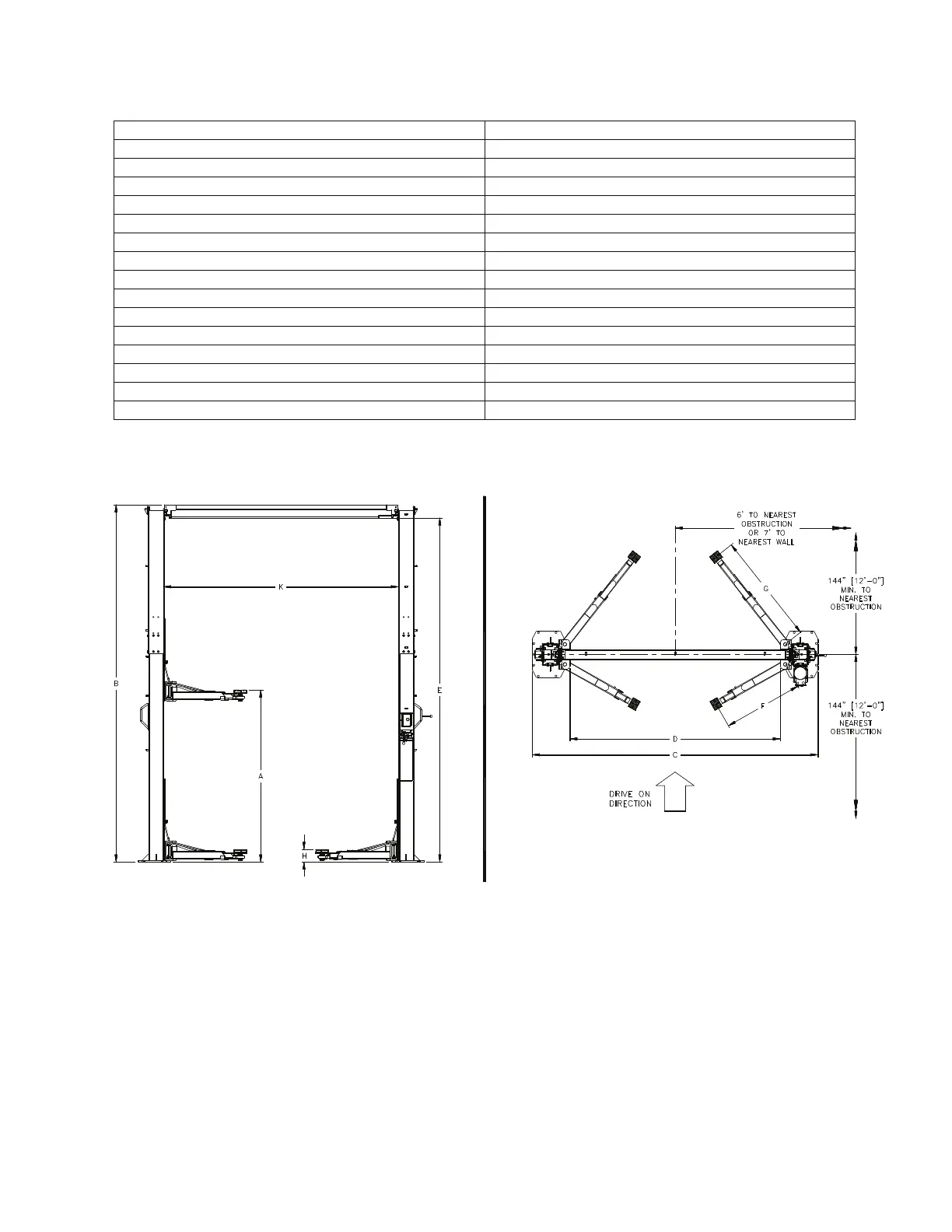

Fig 1a - General Specifications Fig1b - Service Bay Layout
