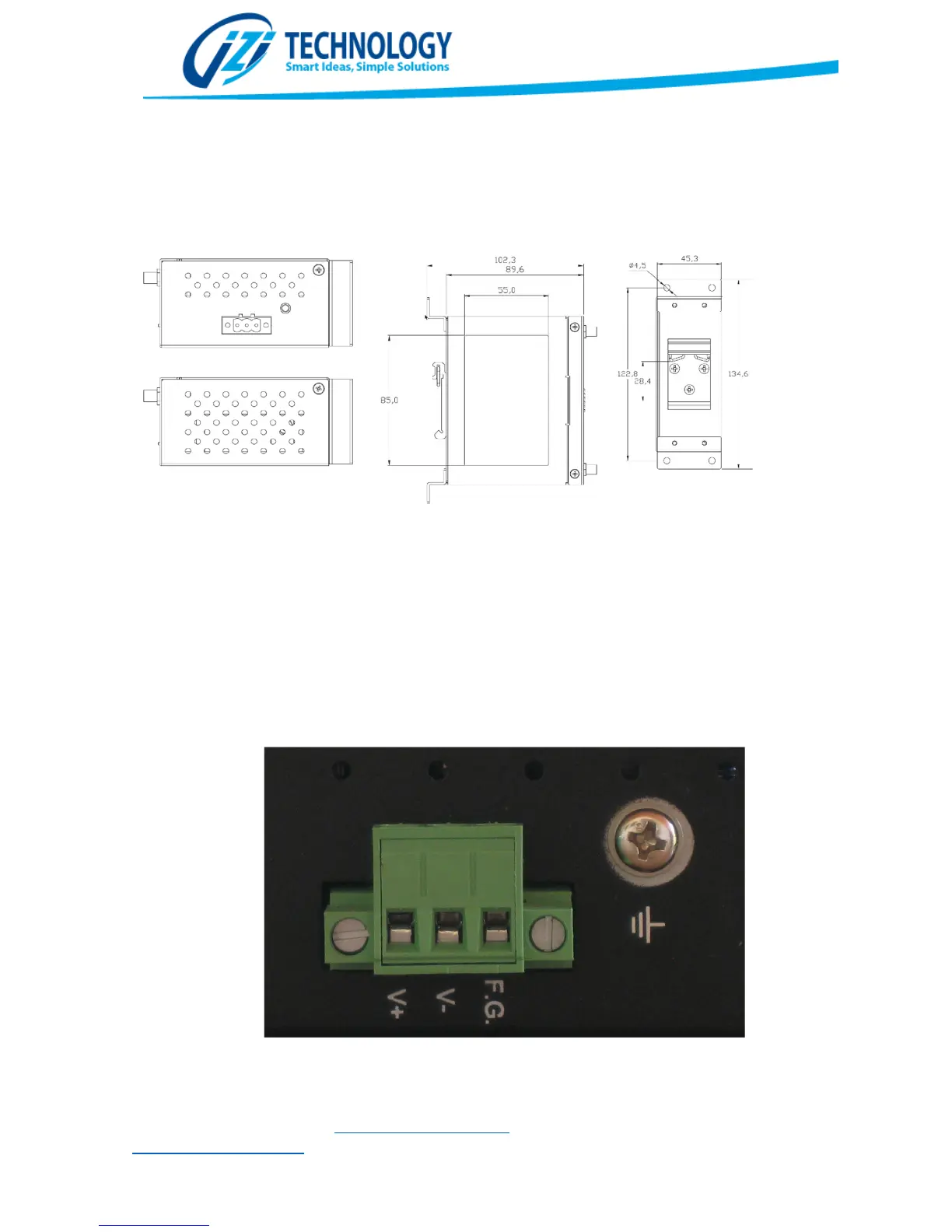

Hardware Installation
Top and Bottom View
Right Side View
View from Behind
Figure
2. SPX5
Dimensions
.
Power Supply Connector
The SPX5 can be powered with a 9 to 48 Volts DC power supply and the maximum power
consumption is of 5Watts. The power supply connector is located on the top side of the
gateway and the terminals are shown of Figure 3. The FG terminal must be connected to
the field ground to avoid electromagnetic interference and allow all the over voltage
protections to operate properly.
Figure
3.
Power Supply Connector Terminals Distribution.
