Operation/installation/service manual MACERATOR TOILETS

Manuale di utilizzo / installazione / manutenzione TOILET MACERATRICI

X-light / Privilege / Evolution / Breeze / E-Breeze / Silence Plus / Elegance / Saninautico / Prestige

127

www.thetfordmarine.com / TECMA SRL – Via Flaminia / Loc Castel delle Formiche/ 05030 Otricoli (TR) / Italy

Manual rev 25.2014 ©TECMA SRL

Mantenere

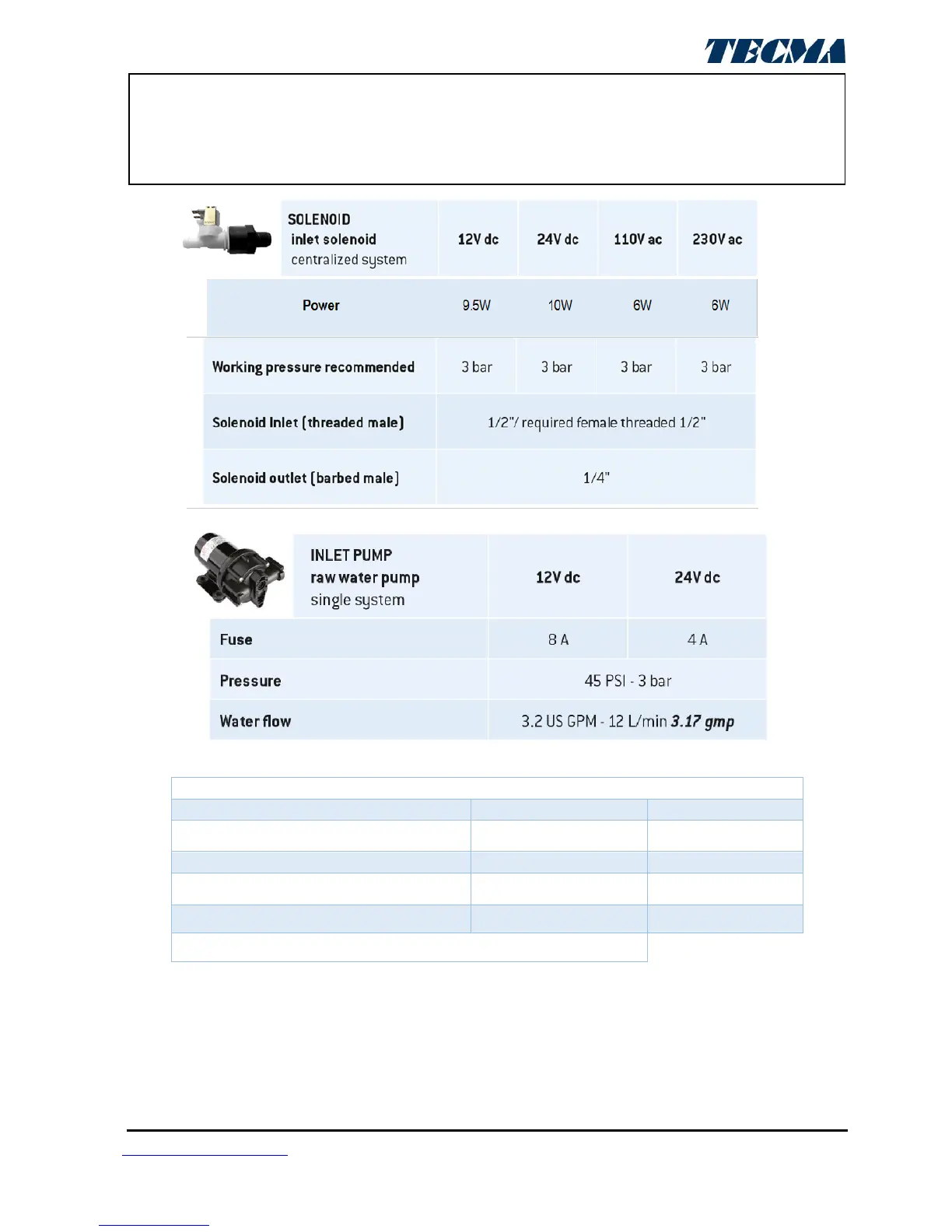

Wire Gauge Size Chart

Voltage \ distance from source* is :

0.1 - 2 m

2 - 4 m

12 VOLT – Install

11 AWG (4.17mm2)

9 AWG (6.63mm2)

24 VOLT – Install

13 AWG (2.63mm2)

11 AWG (4.17mm2)

110 VOLT - Install

18 AWG (0.82mm2)

230 VOLT - Install

18 AWG (0.82mm2)

* Distance measured assumes power and ground wires
