3.4 CUT-OUT control panels
Apart from the control panel "All in One" which integrates the controller in the wall interface, all
panels are equipped with a control unit that can be installed either directly in the toilet or in a
recess outside if more convenient. All control panels are fitted with specific electric connectors.

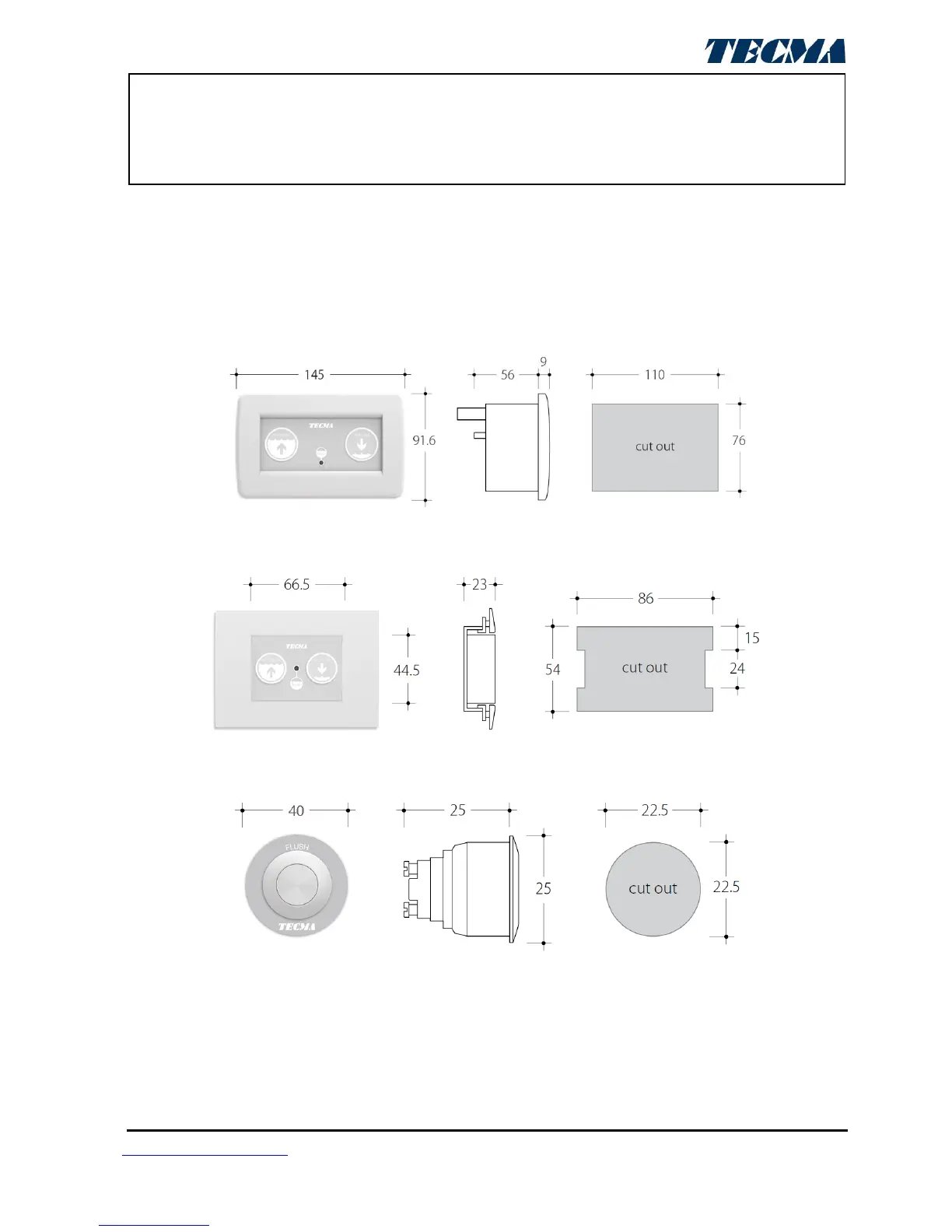

3.4.1 Cut out for All-in-one control panel:
3.4.2 Cut out for Multiframe control panel:
3.4.3 Cut out for Argent control panel:
