D – RED E – BLACK
F + G almost full signal for the control panel
F – WHITE G – GREEN

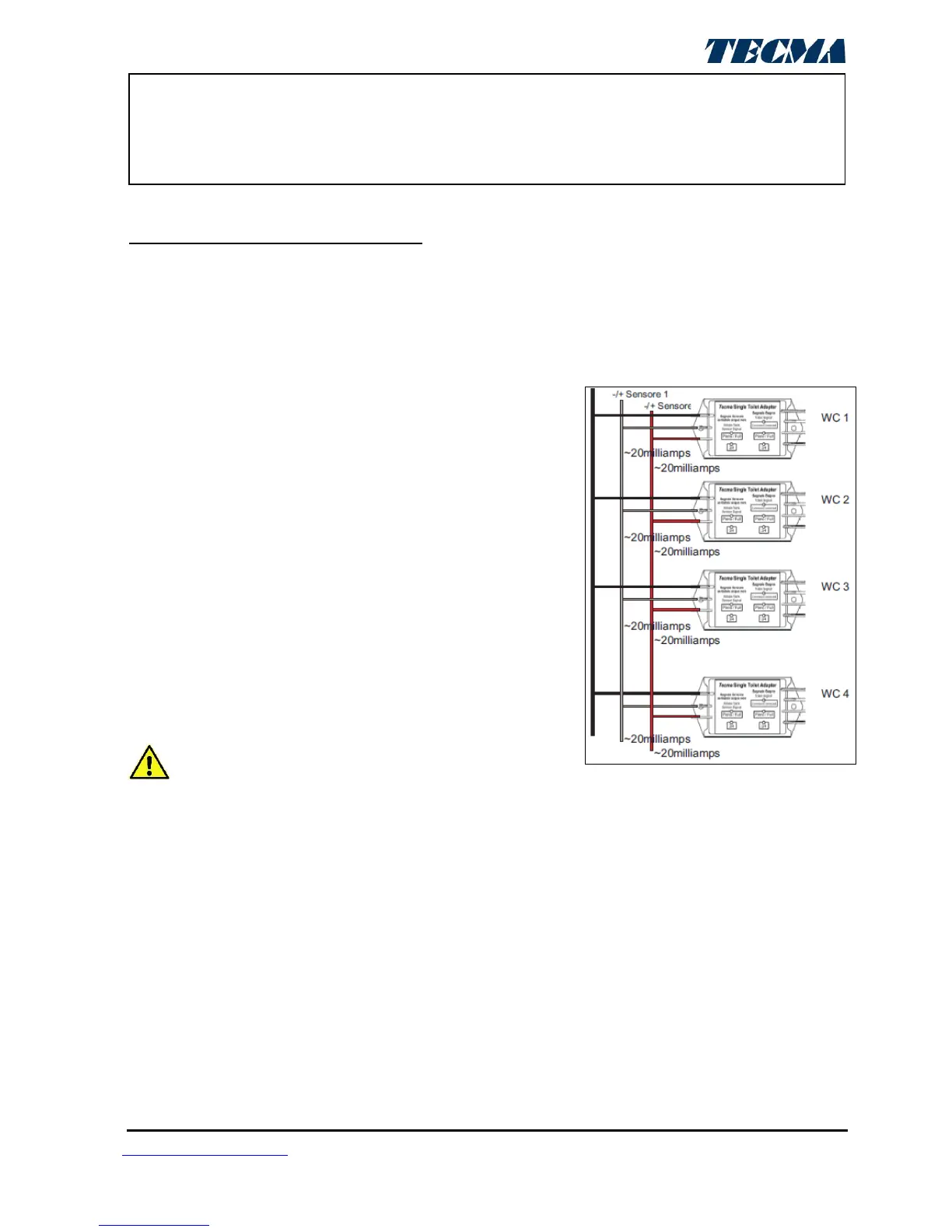

STA installation recommendations:
- Do not connect it if the almost full (¾) level is not required.
- Protect all connections from corrosion
-A, B, and C is the input voltage (from the collection tank)
-D, E, F, and G is the output voltage (towards the control unit)
- If no sensors are installed, only connect D+E to the control unit
- If STA is near the tank, it is possible to extend wires D, E, F, and G up
to 40 m *
- If STA is near the toilet, it is possible to extend wires A, B, and C up
to 100 m *
- When properly connected, the LED light “CONNECTED” will flash
* It always depends on the type of electrical system configuration
WARNING: In order to run properly, the control unit
of the premium control panel must always have a level sensor
connected for 4/4 or STA (D+E wire).
3.5.2 Mirus Cel
These sensors only run with the premium control unit. They can be attached outside of the
blackwater tanks (max thickness of 10 mm).
Full Tank Sensor
Mid Tank Sensor – Optional
- Use isopropyl alcohol (not included) to clean the side of the tank at the top - approximately on the
left-right centreline where the sensor will be mounted. When thoroughly clean and dry, firmly press
