PROVASET T3LPF REV.20210610
24

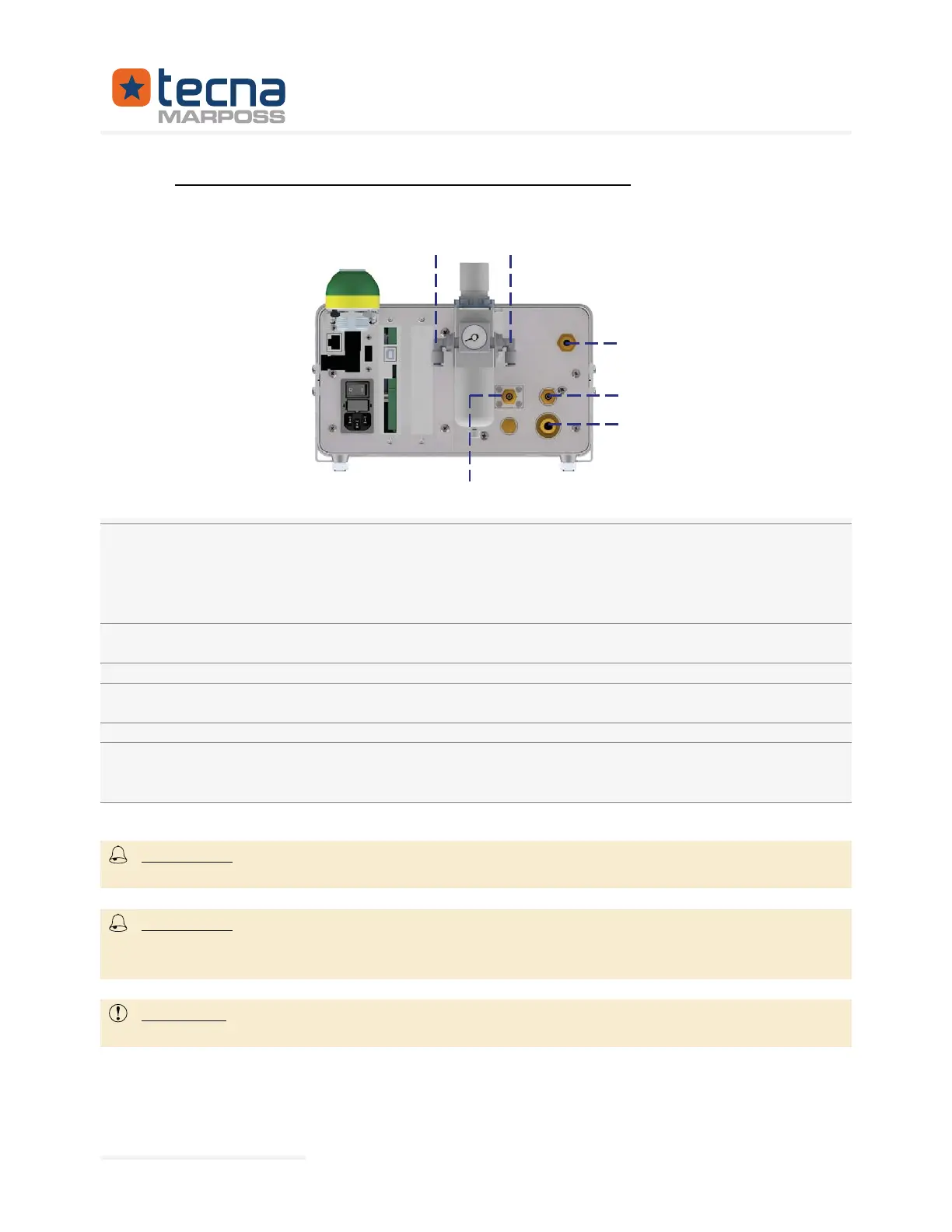

3.12 Pneumatic installation, air supply and test connections
The air supply pressure should be at least 1 bar over the regulated test pressure.
Maximum supply pressure: 10 bar
Minimum supply pressure: 3 bar (for the internal pilot valves).
D -
ed to the E connection, for 6x4 or 8x6 mm pipe.
E
Output connection for reading the local pressure; the connection can be connected
to the inlet H or it can be closed.
H Test pressure: inlet connection for reading the test pressure, connected to output F
for reading the local pressure, or directly to the component being tested, for reading
the remote pressure, with pipe Ø 6x4 mm.
C D
E
F
G
H
free from explosive gases, conforming to ISO 8573-1 air quality.
All the pneumatic tubes must be approved for safety at the maximum
supplied air pressure.
