PROVASET T3LPF REV.20210610
25

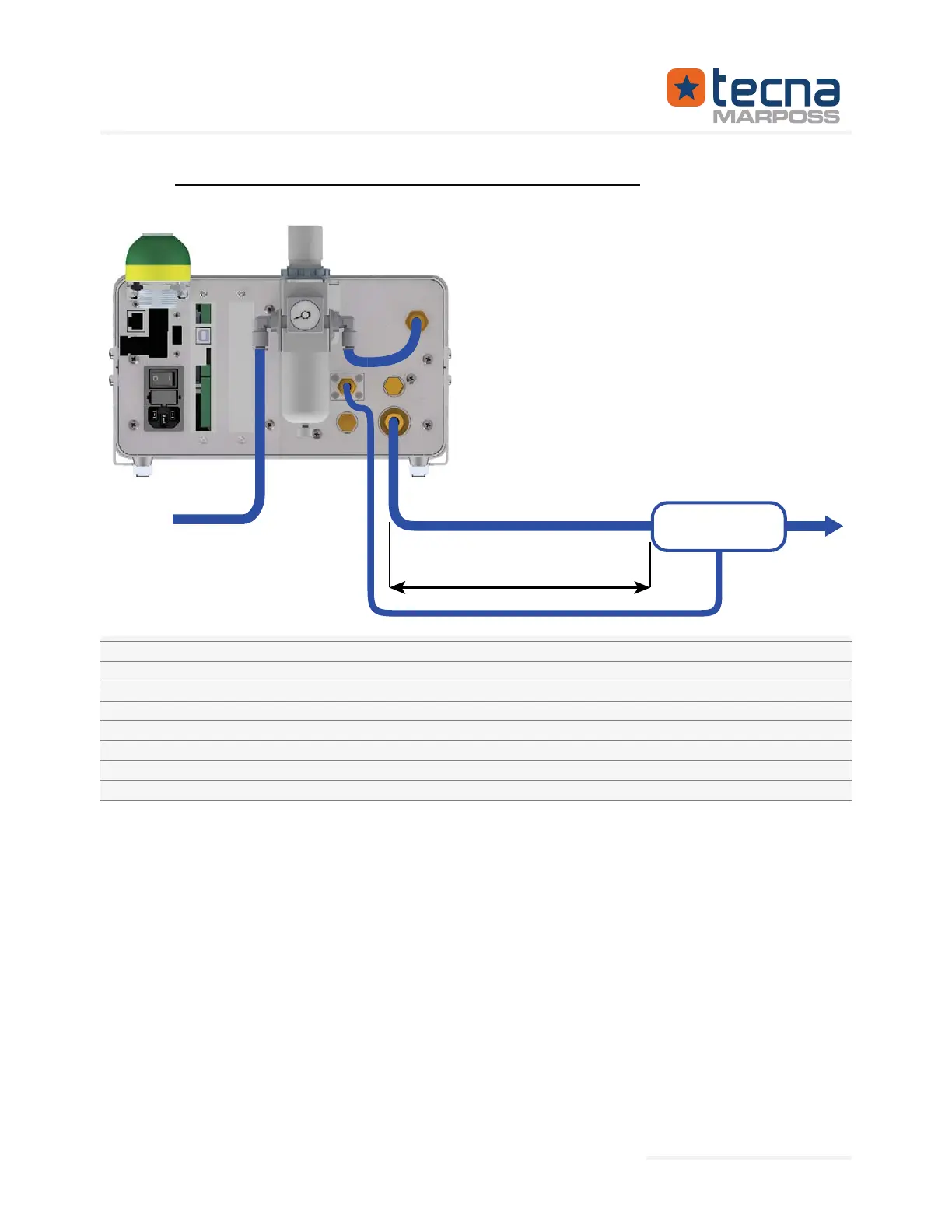

3.12.1 Flow rate test: connection with remote pressure reading
Compressed air supply input
D>E Filtered air 5 µ
Sealing cap
H Test pressure reading
I Connection tube to the tested component
J Component being tested
CD
E
G
H
F
TEST
I
J
p
The tested component must be connected to the TEST output port G, with a tube of
The pressure transducer (connection H) must be connected directly to the compo-
passage tube; connection F must be closed with a sealing cap.
The two pipes, for air passage and pressure reading, should be connected separately
-
ponent being tested J.
