• sealed parts: leak test of sealed components, with an internal cavity but with-
out external connections, inside a test chamber (bell jar).
5.7.1 Volume+leak test: test cycle
The volume of a tested component can be controlled by applying the well-known rule
for the relationship between pressure and volume of a gas (P * V = constant).
For volume control, an external valve (option) is used, mounted between the TEST
output of the instrument and the tested component or the interspace of the test
chamber (bell jar).

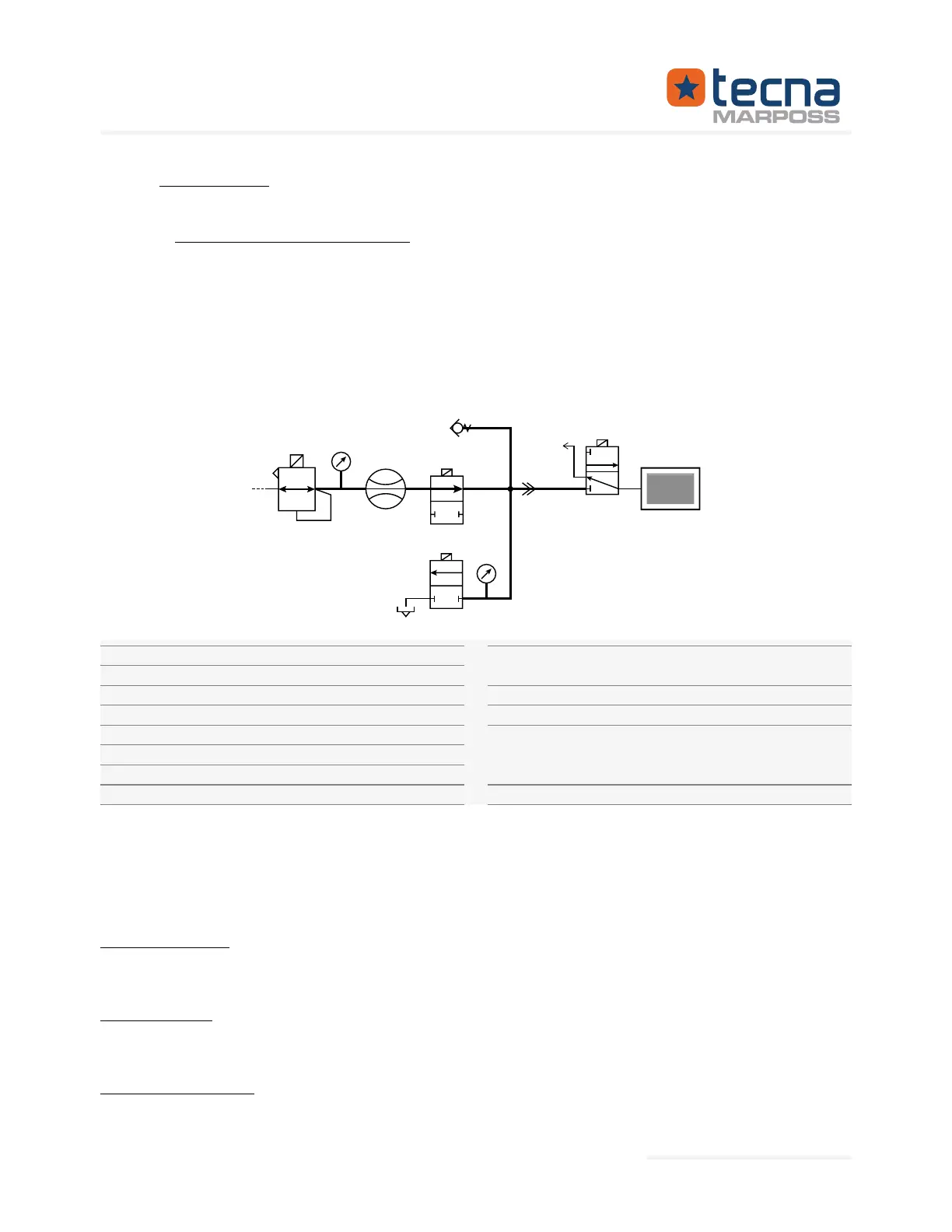

RPv Test pressure regulator
Pv Regulated pressure
Flow sensor
V1
Internal valve
V2 Internal valve
PR Test pressure
S Discharge connection
Mas
ter leak connection
TEST Output connection to the test cir-
cuit
Vr Filling volume
V3
External valve
J Component being tested or in test
chamber (bell) with the component
being tested inside
Te
st volume
RPv
Pv
SF V1
V2
PR
FC
Staubli RBE03
V3
S
J
TEST
Vp
Vr
During a test cycle programmed for leak testing with volume control, the external
valve V3 is operated automatically,
-
signing to the external valve V3 an output available on an expansion board.
Filling volume: volume included between the output of valve V1 and the
Test volume: volume of the tested components, or of the interspace of
the test chamber (bell jar), connected to the output of the
external valve V3.
the parameters of the test cycle.
