This function allows the operator to modify the result of the test: the operator can
a FAILED result.
result at the end of the test, without operator action.
OK
KO

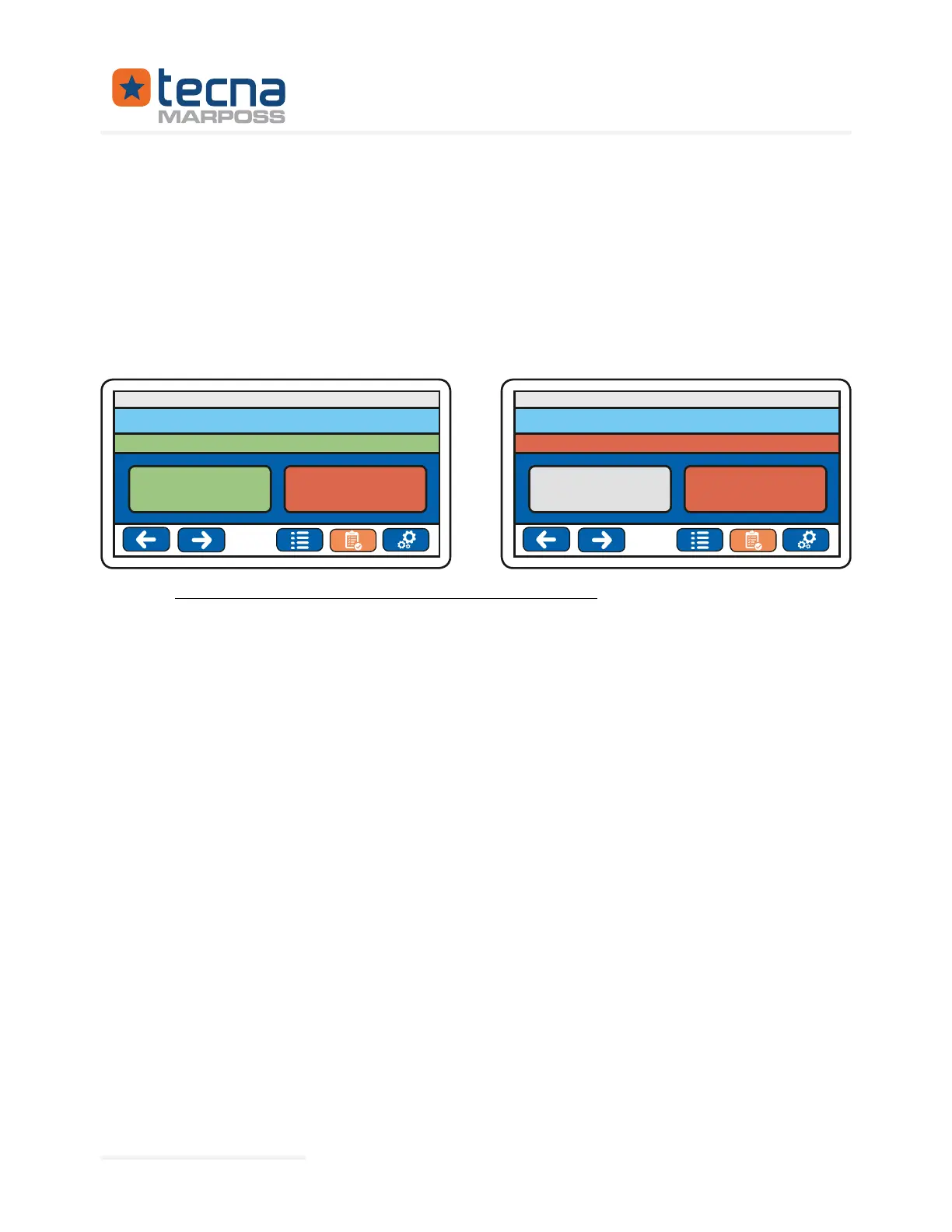

PROD 1:VALVE_A PROG 001:TEST_A
PRODUCT n°001:VALVE_A PASSED
18/12/18 09:23OPERATOR: MARPOSS
OK
KO
PROD 1:VALVE_A PROG 001:TEST_A
PRODUCT n°001:VALVE_A FAILED
18/12/18 09:23
OPERATOR: MARPOSS
5.8.2 Programmable output parameters (SWPDO option)
The 8 programmable output are available only with the SWPDO option
If you press START, the programmed output can be activated selecting one of the
following modalities:
: auxiliary output not active.
: pre-adjustment with external valve, to keep the connection pipe to the
component being tested under pressure.
: the output is activated at the start and is maintained until the end
of the test.
: the output is activated at the start with the PSDEL delay and is
maintained until the end of the test.
: the output is active at the beginning of the PSDEL delay and is
deactivated at the end of the PSDEL delay.
T0: the output is active at the beginning of time T0 and is deactivated at the end of T0.
T1: the output is active at the beginning of time T1 and is deactivated at the end of T1.
T2: the output is active at the beginning of time T2 and is deactivated at the end of T2
T3: the output is active at the beginning of time T3 and is deactivated at the end of T3
: the output is always active when the test program is selected for testing
(active program).
