PROVASET T3LPF REV.20210610
59

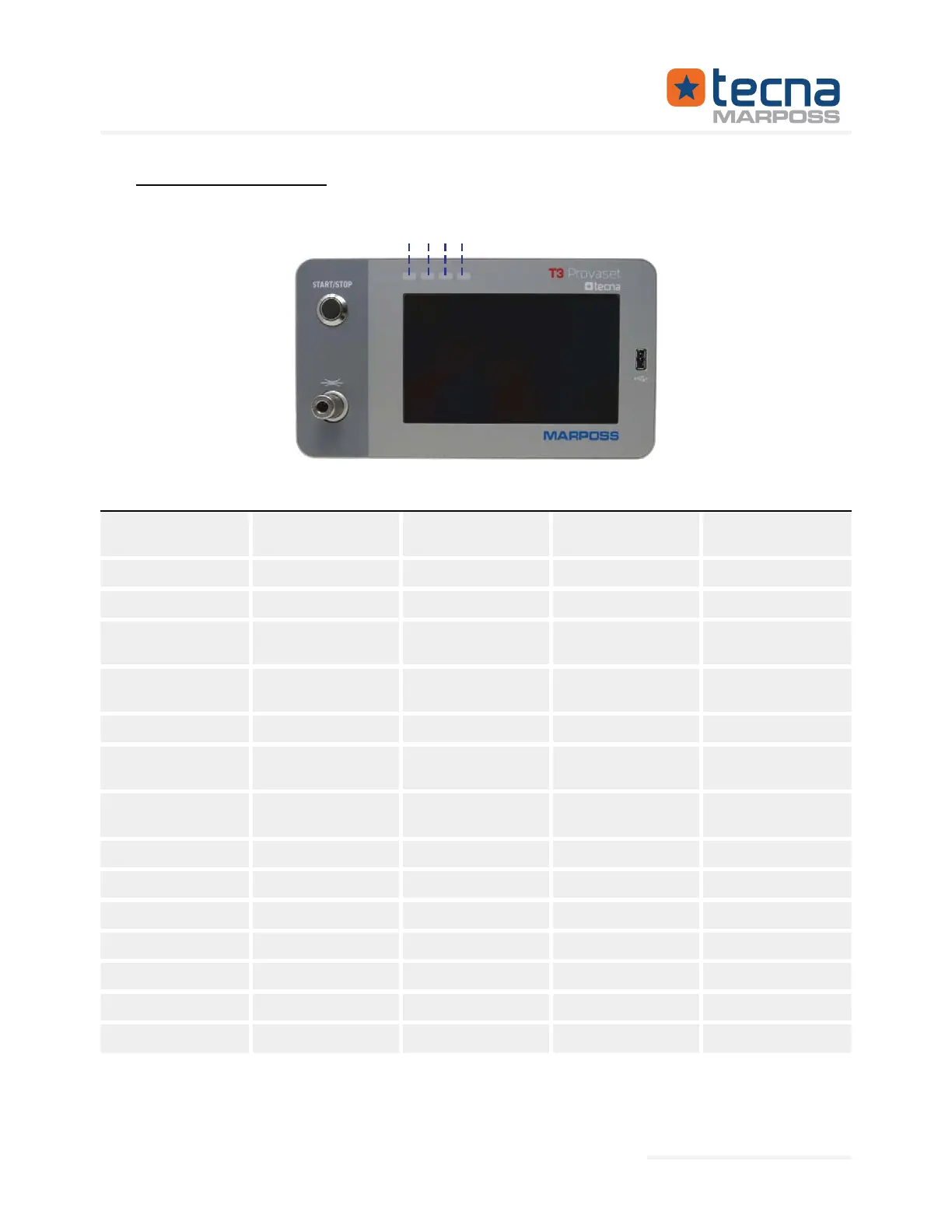

5.9 Test cycle phase lights
F1 F2
PHASE F1 F2 x
Waiting (Power on
/ Reset)
Light blinking Light blinking
Cage: closing Light blinking
Plug: closing Light blinking
Start: delay test
phase
Light blinking
phase T0
Light on
Filling test phase T1 Light on
Stabilization test
phase T2
Light on Light on
Measure test phase
T3
Light on
Marking Light blinking
Pressure discharge Light blinking
Plug: opening Light blinking
Cage: opening Light blinking
PASSED result Light blinking
FAILED result Light blinking
Alarm Light blinking Light blinking Light blinking
