TECNOEKA Srl ______________________________________________________________ use and instruction manual
page 12 __________________________________________________________________________________________

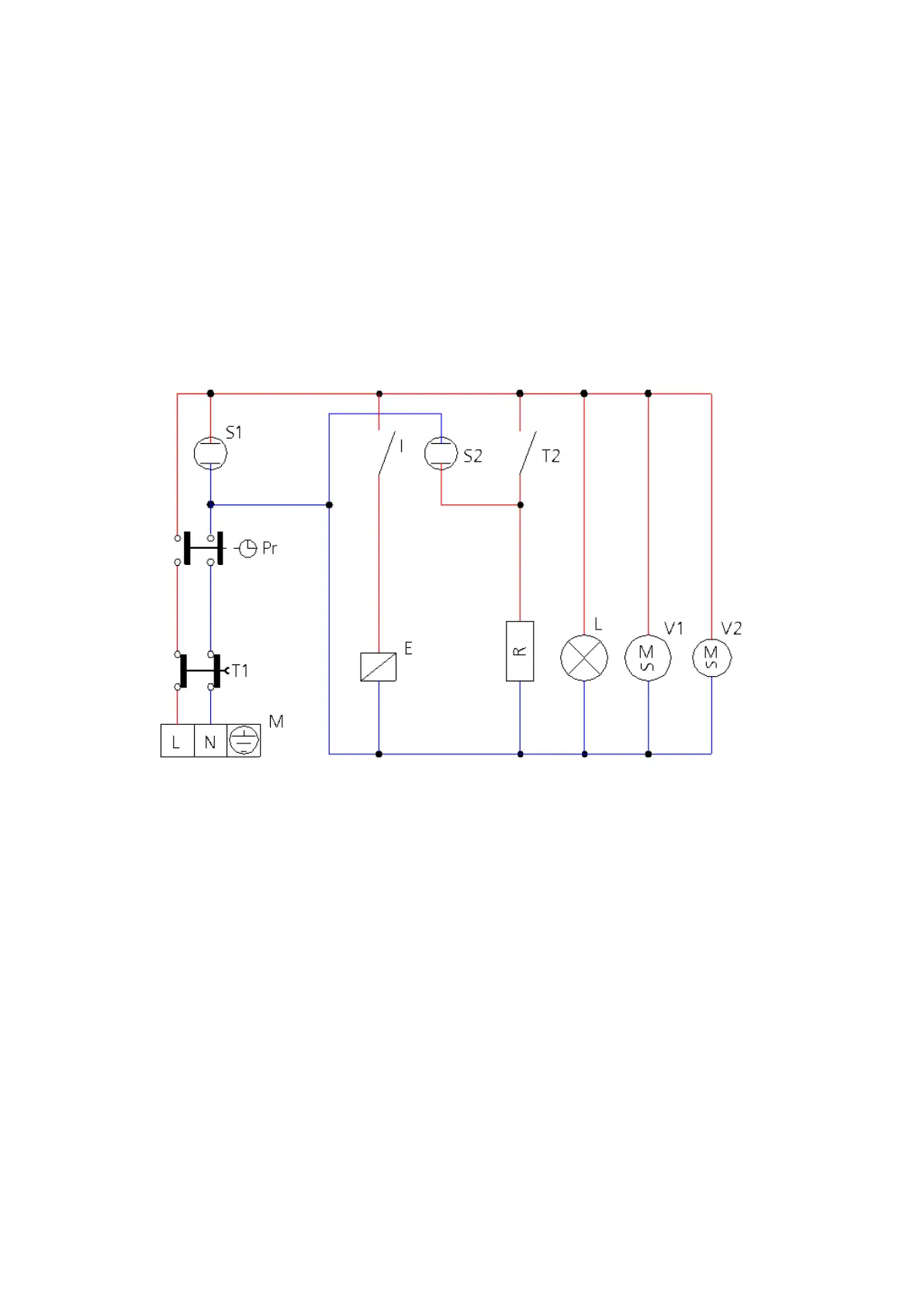

MOD. EKF 423 U
Key
M Power terminal board
Pr "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
I Humidifier switch
E Humidifier solenoid-valve
S1 Programmer indicator light
S2 Thermostat indicator light
L Oven lighting lamp
R Circular heating-element
V1 Oven motorised ventilator
V2 Tangential motorised ventilator
