12. Informations to the consumers
Further to Directive 2002/96/EC, the symbol of the crossed rubbish skip on
the appliance means that at the end of its life, the product must be
disposed of separately from the other rubbish. The user must hand the
appliance to a specialised waste collection centre for electric and electronic
equipment.
The separate collection of the rubbish and subsequent treatment, recovery and disposal help to
produce other equipment using recycled materials, reducing the negative effects on the
environment and public health, which would be caused by incorrect management of the
rubbish.
Should the user dispose of the product abusively, administrative sanctions would be applied.

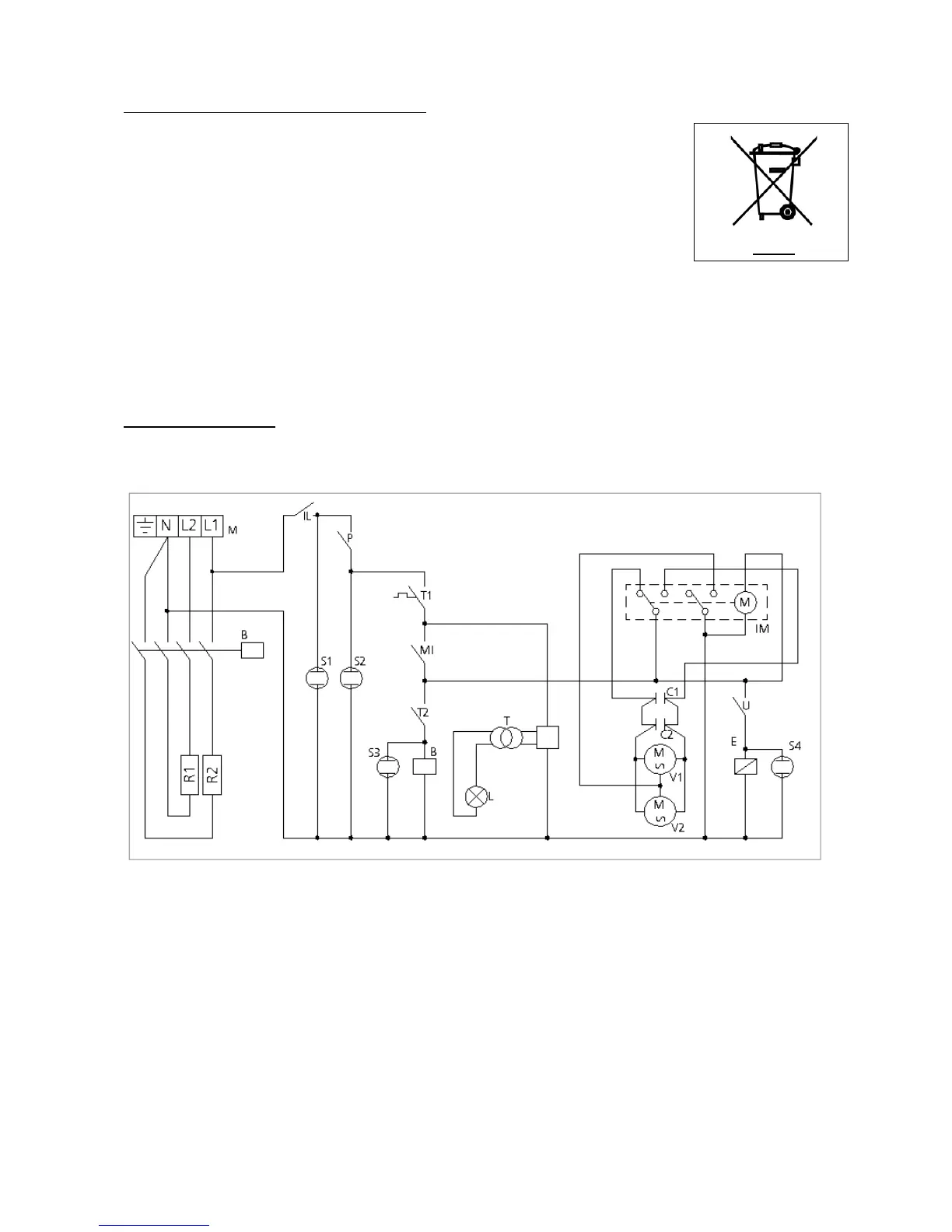

13. Wiring layout
WIRING LAYOUT MODD. KF 981 – KF 981 UD
Key
M Power terminal board
IL Power line switch
P "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
U Automatic humidifier
S1 Power line indicator light
S2 Programmer indicator light
S3 Thermostat indicator light
S4 Automatic humidifier indicator light
T Transformer for oven lamp
L Oven lighting lamp
V1-V2 Radial motoventilators
R1-R2 Circular heating elements
E Solenoid-valve for automatic humidifier
B Contactor coil
C1-C2 Capacitors
IM Operating direction reversing element
MI Door microswitch
