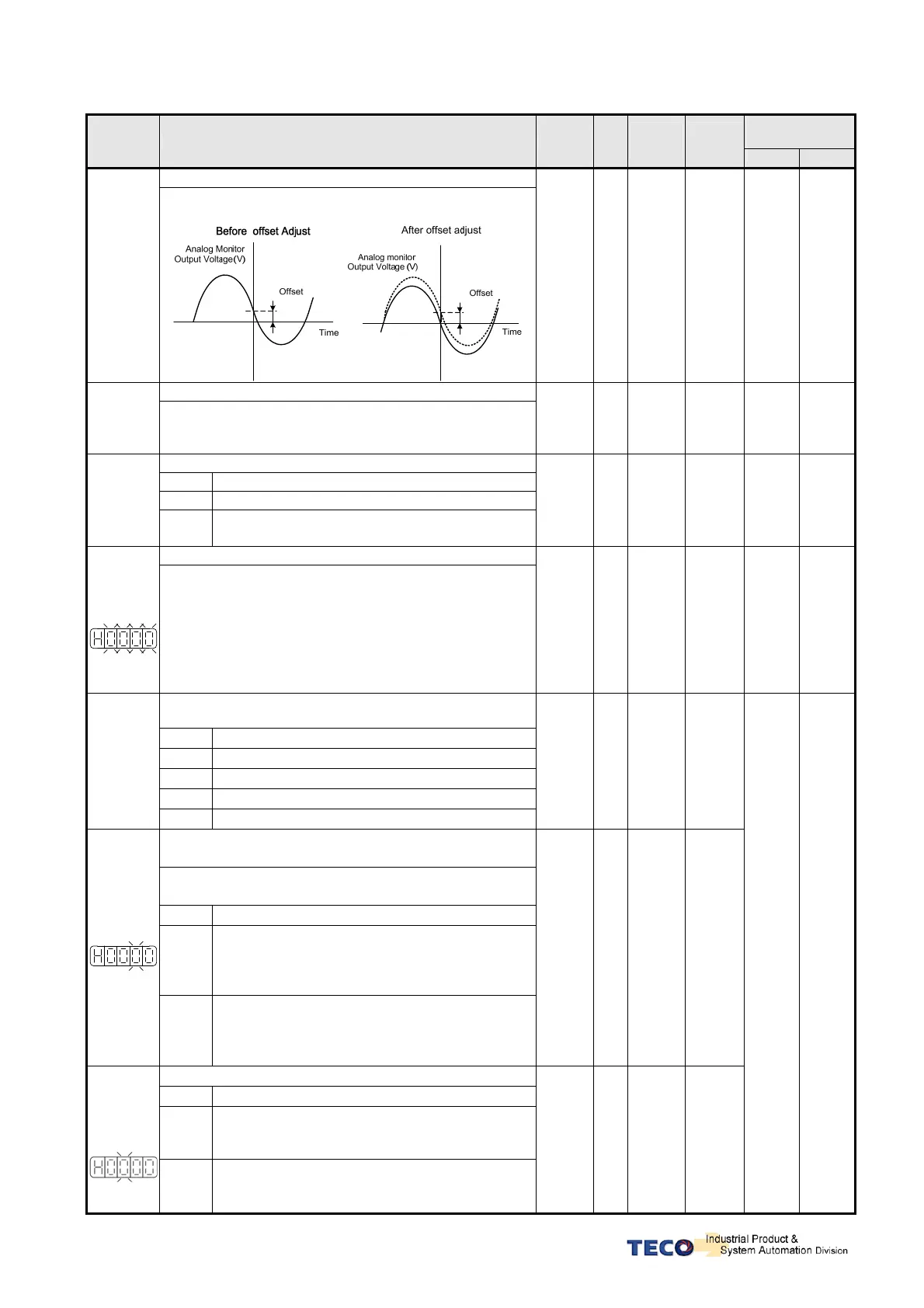

6-8
Communication
Address
Parameter
Name & Function Default Unit
Setting
Range
Control
Mode
RS232 RS485
Analog monitor output 1, Offset adjustment
Cn027
Analog monitor output zero offset can be adjusted by
parameter. Cn027 as below.
4
x40
mV
-250
│
250
ALL C03H 001BH
Analog monitor output 2, offset adjustment
Cn028
Analog monitor output 2, zero offset can be adjusted
by parameter. Cn028.
See diagram for Monitor 1 above.
4
x40
mV
-250
│
250
ALL C04H 001CH
Reset parameters.
Setting Explanation
0 Disabled
★
Cn029
1
Reset all Parameters to default ( Factory
setting)
0 X
0
│
1
ALL 5FDH 001DH
Servo motor model code
★●
Cn030
Servo model code can be display and checked with
parameter dn-08, refer 3-2-2 dn-08 table for more
information.
Attention：Before operate your servo motor., check this
parameter setting is compatible for servo drive and motor.
If there has any incompatible problem contact supplier for
more information.
Default X X ALL 50BH 001EH
Cooling fan running modes
(Available forJSDAP-50A3/75A3/100A3/200A3/300A3)
Setting Explanation
0 Auto-run by internal temperature sensor.
1 Run when Servo ON
2 Always Running.
Cn031.0
3 Disabled.
0 X
0
│
3
ALL
Low Voltage Protection(AL-01) auto-reset
selection
This parameter(AL-01) could be set the method of
Low Voltage Protection.
Setting Explanation
0
As servo on, it shows AL-01 low voltage alarm
immediately when it detect low voltage, and after
eliminating the situation, to reset it, servo off is a
must.
Cn031.1
1
It shows BB(baseblock) immediately when it
detect low voltage, and after eliminating the
situation, drive would be auto-reset and displayed
Run.
0 X
0
│
1
ALL
Absolute Encoder Battery Fault
Setting Explanation
0
When battery fault occurs, driver can not be
memory absolute position, AL-16 displayed and
motor operates continuous.
●
Cn031.2
1
When battery fault occurs, driver can not be
memory absolute position, AL-16 do not display
and motor stopped.
1 X
0
│
1
ALL
50EH 001FH
