2-8

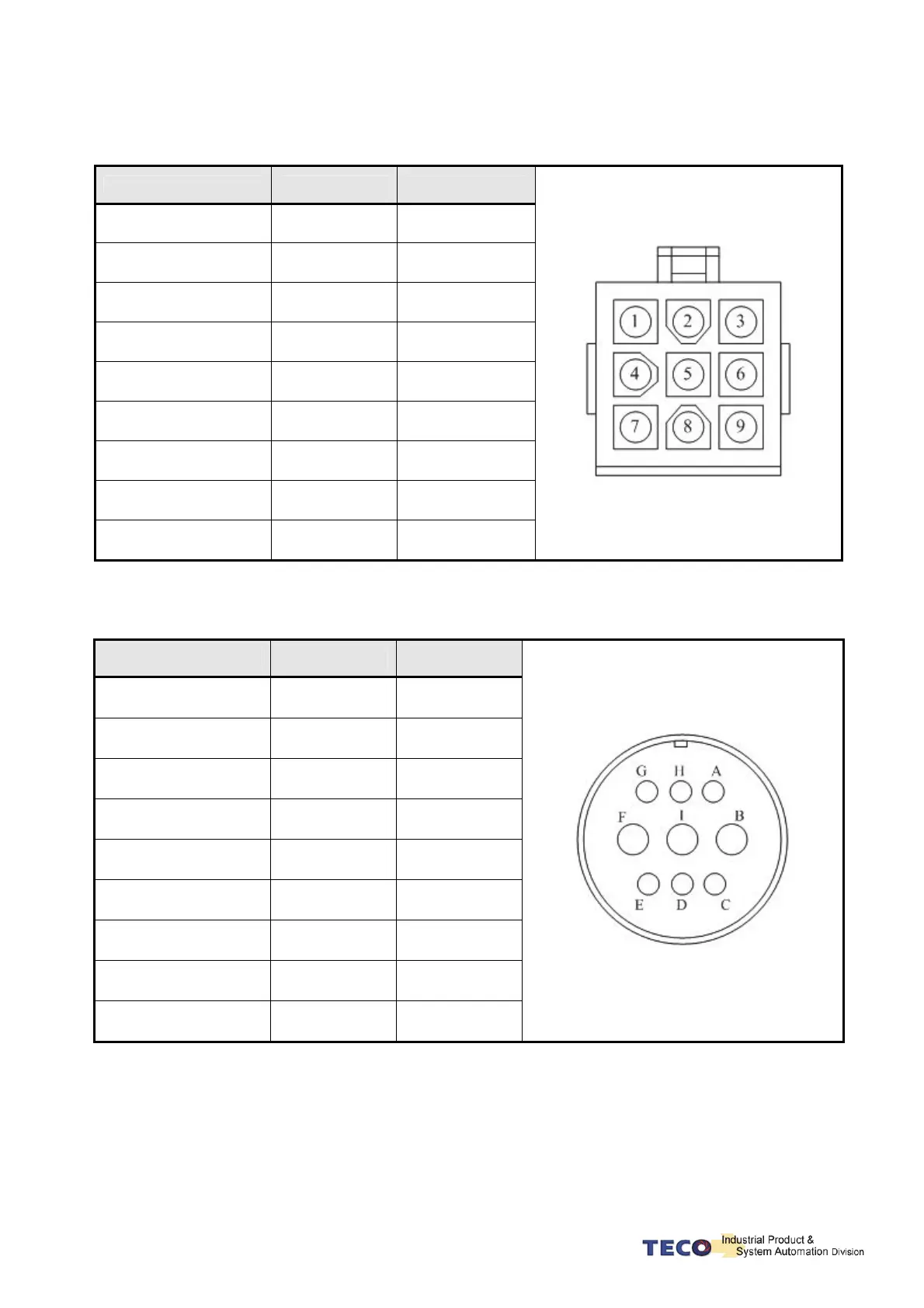

For 2500 / 8192 ppr Encoders
(1) General Joint:
T
erminal Symbol
Color
Signal
1 Red
+5V
2 Black
0V
3 Blue
A
4 Blue/
Black
/A
5 Green
B
6 Green/
Black
/B
7 Y
ellow
Z
8 Y
ellow/
Black
/Z
9 Shield
FG
(2) Military S
pecifications Joint
T
erminal Symbol
Color
Signal
B Red
+5V
I Black
0V
A Blue
A
C
Blue / Black
/A
H Green
B
D
Green / Black
/B
G Y
ellow
Z
E
Y
ellow / Black
/Z
F Shield
FG
