- 11 -
Chapter 3 Wiring and Operation

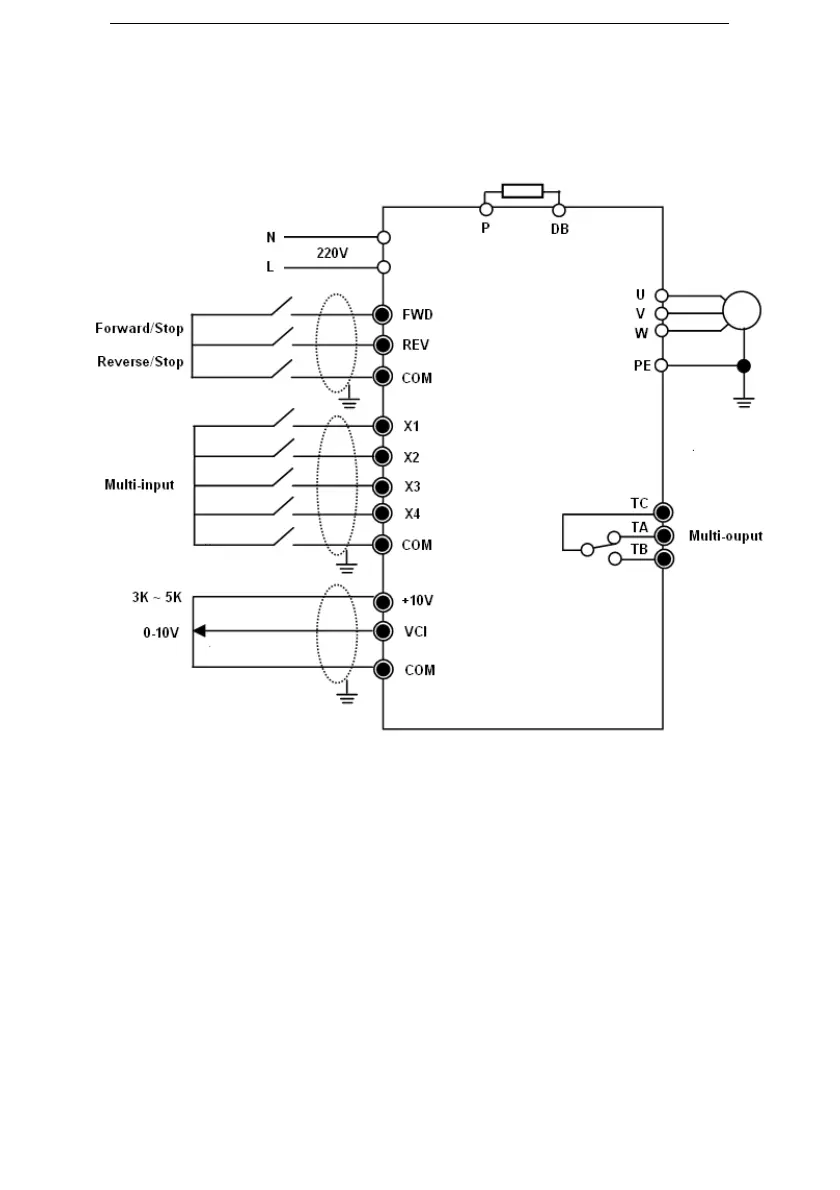

3-1 Wiring Diagram
3-2 Display Panel
The display panel of Series E1000 consists of LED tubes, LED
indicators buttons and digital elements. The outline and functions as the
following:
